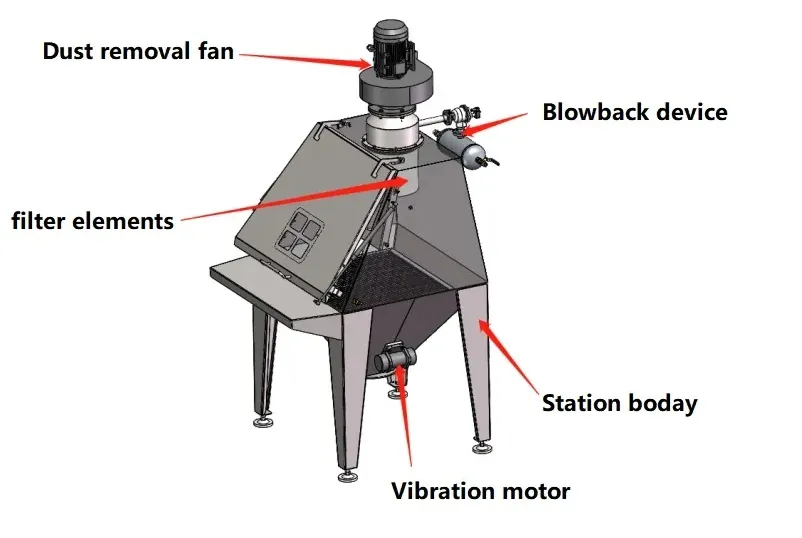

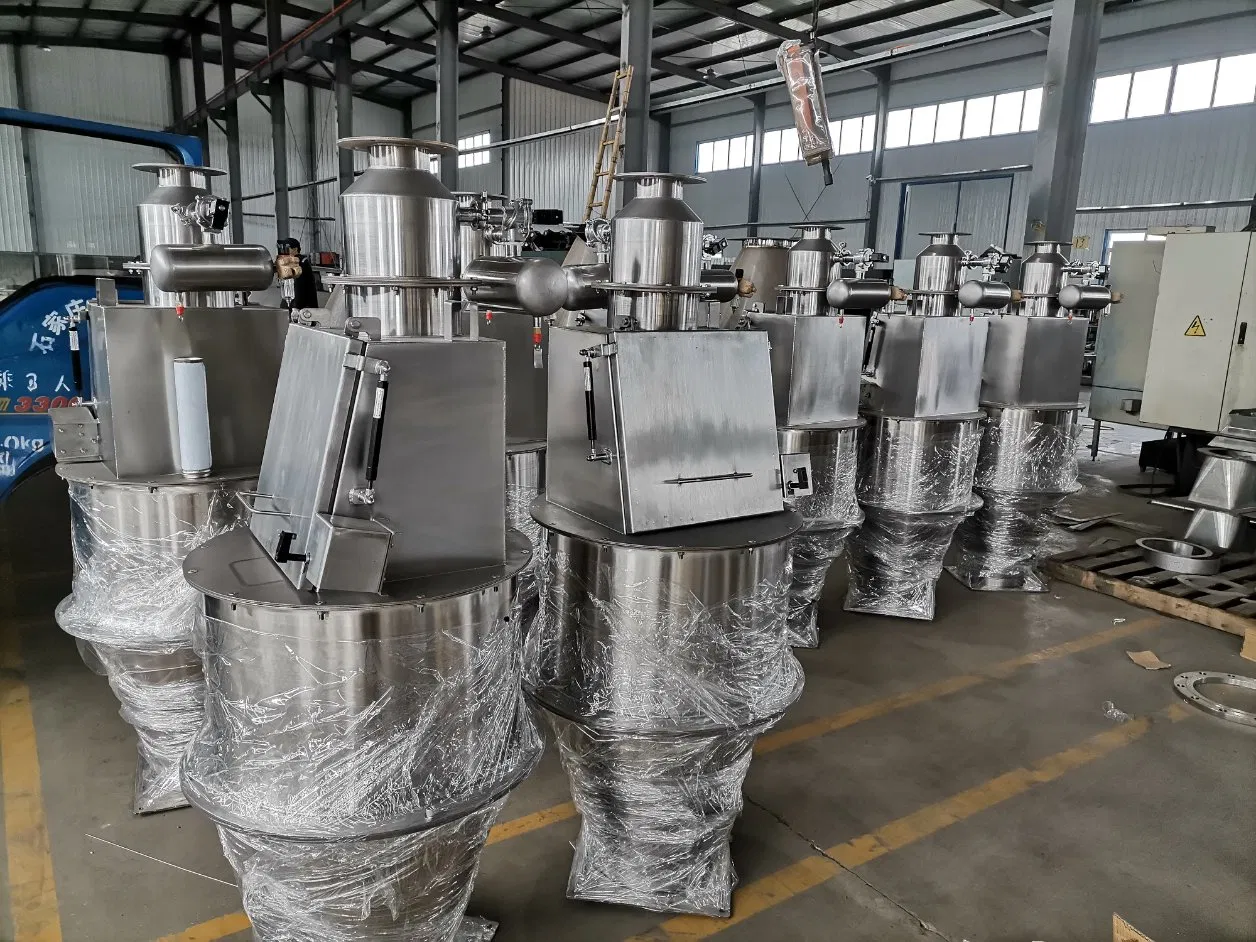

The function of the dust-free dumping station is to ensure that dust generated during material feeding is sucked into the filtration system via negative pressure. Formed by a centrifugal fan or extraction pipeline, this system separates material from the air, preventing dust escape, protecting the environment, and ensuring operator health.
Application: This dust-free feeding system is widely utilized in pharmaceutical, chemical, and food industries, specifically for unloading powder and particle materials from small to medium-sized bags.
| Parameter Item | Specifications |
|---|---|
| Model | WT100/150 |
| Volume (L) | 100/150 |
| Power (KW) (1) | 0.75/1.1 |
| Compressed air consumption (2)/Pressure (L/min)/MPa | 50/0.6 |
| Installation | Quick installation 8 inch |
| Discharge interface | Φ100 / Φ150 |
| Dust removal fan interface | 150/200 |
| Overall Dimensions(mm) L*W*H | 1000X900X200 |
(1) Excluding the power of other selected fans and electrical appliances.
(2) Only the consumption of compressed air required for the backwash device.
| Fault Phenomenon | Reason for Fault | Troubleshooting |
|---|---|---|
| No blowback | Compressed air valve not open | Open the compressed air valve |
| Pulse valve fault | Check the pulse valve | |
| Filter element blockage | Replace the filter element | |
| No electric vibration | Vibration motor damaged | Replace the vibration motor |
| Vibration motor not powered | Connect the power supply | |
| Slow/No air extraction | Fan damage | Replace the fan |
| Filter element blockage | Replace the filter element |
