Bag-Feeding Rotary Vacuum Packaging Machine

Customization: Available
After-sales Service: Installation, Online Support
Warranty: One Year

Product Description

📋

Basic Specifications

Model NO.
KRZK16-110
Application
Food
Power
Electric
Automation
Automatic
Inflatable Device
With Inflatable Device
Type
Automatic Bag Vacuum Packing Machine
Object State
Paste, Powdery, Liquid, Solid
Condition
New
Transport Package
Wooden Box
Specification
2800× 1480× 1600mm
HS Code
842240
Production Capacity
20 Sets / Month
⚙️

Performance and Characteristics

  • The bag-feeding fully automatic packaging machine consists of two rotating bodies (filling system and vacuum system), and the vacuum system is a continuous rotating motion.
  • Quickly change the packaging bag specifications, and the width of the automatic bag feeding device can be automatically adjusted in one go.
  • Conforming to the hygiene standards of food processing machinery, the parts in contact with materials are processed using 304 stainless steel.

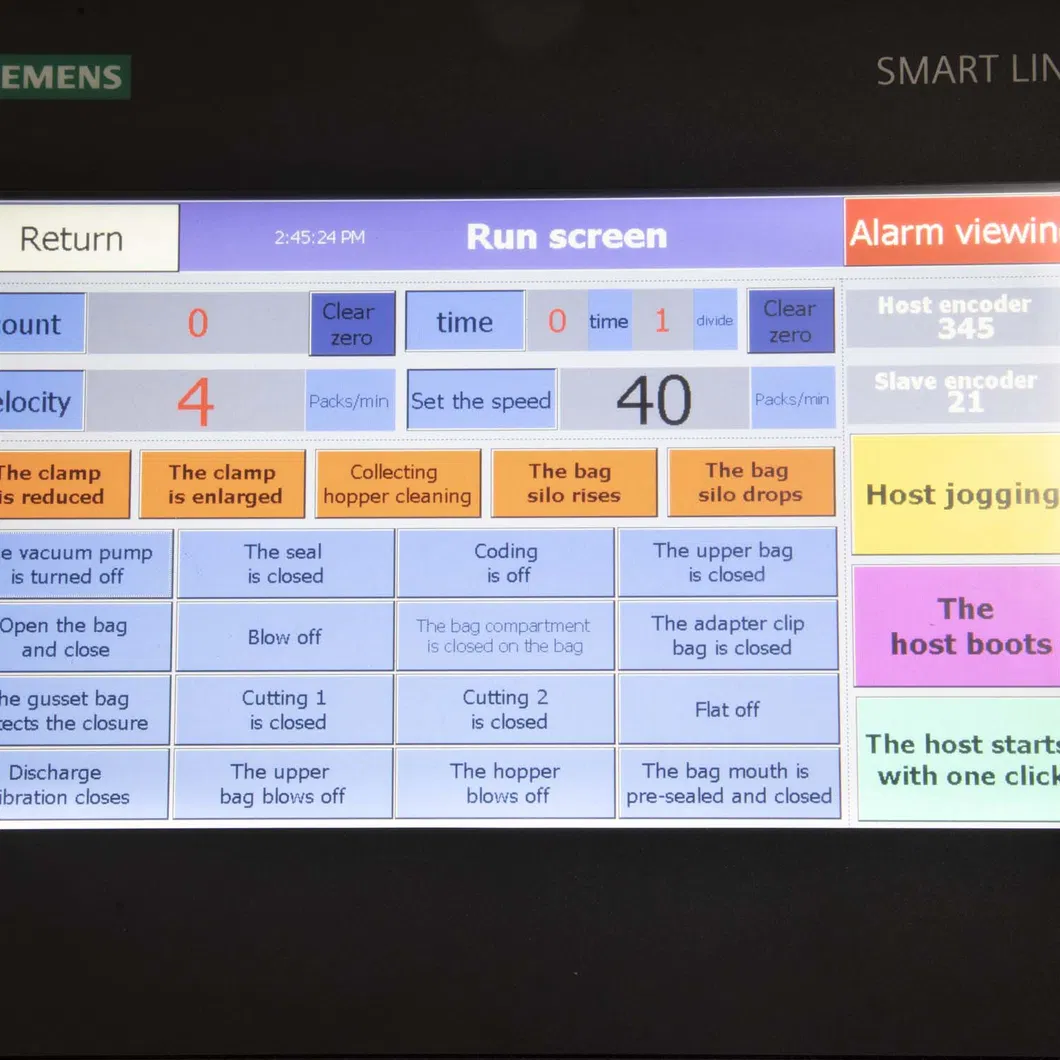

  • Easy to operate with a high-end electrical control system and friendly human-machine interface.
  • Smart sensor technology: Bags without cutting or filling can be recycled without wasting the bag.
  • Sealing temperature monitoring function with automatic alarm on the touch screen if elements are damaged.
  • Instantaneous heating and water cooling sealing for a smoother and more beautiful finish.
  • The vacuum chamber is made of aviation aluminum carved and milled for superior sealing and durability.
🍎

Applications

Solid: Candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.

Granule: Grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed, etc.

📊

Technical Parameters

ModelKRZK16-110
Packaging materialAluminum foil bags, four side seal bags, paper bags and other composite bags
Bag sizeW: 55-100mm | L: 80-180mm
Packing speed110-130 package/min
Dimension (LxWxH)2800×1480×1600mm
Machine weight3500kgs
Compressed air consumption≥0.8 m³/min (Provided by user)
🔧

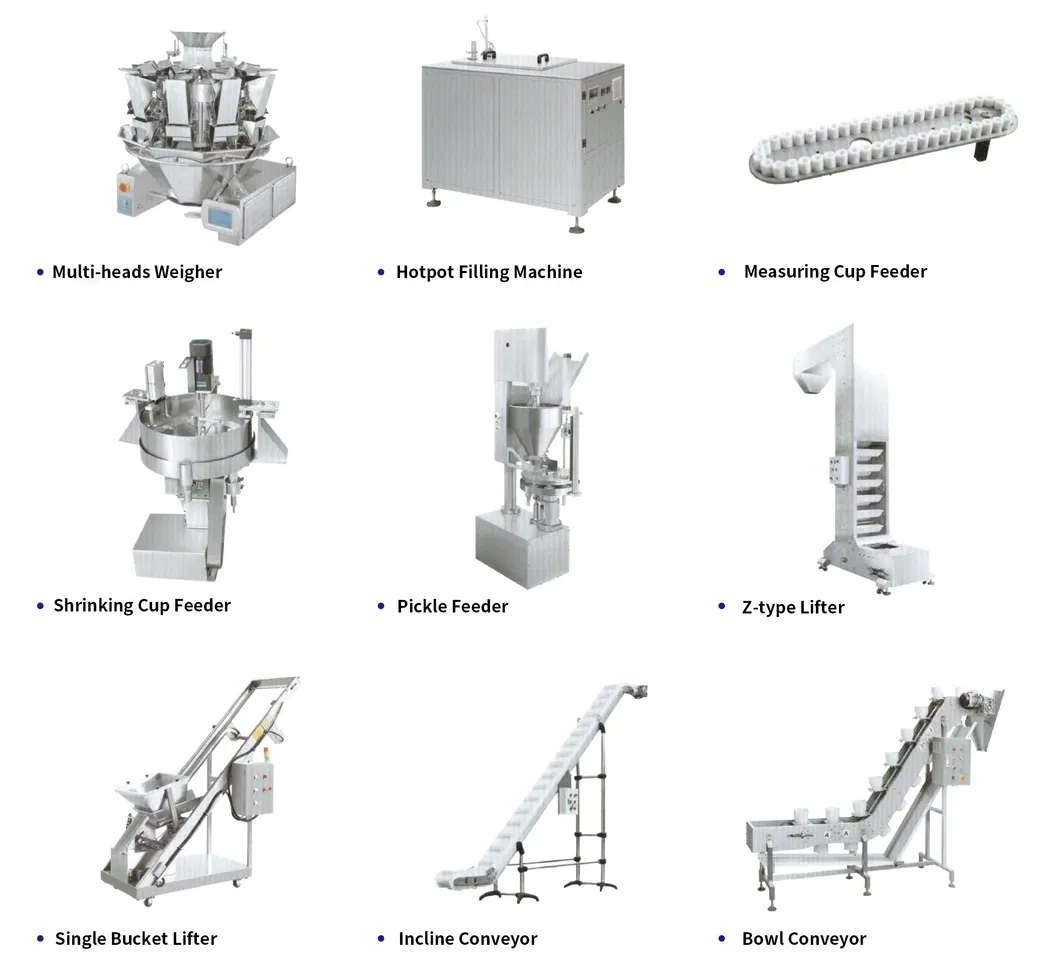

Standard & Optional Configuration

Standard Components Optional Configuration
Bag loading systemMaterial metering and filling machine
PLC control systemWorking platform
Bag opening deviceWeight sorting scale
Filling systemMaterial lifter
Cleaning systemFinished product conveyor
Transfer systemMetal detector
Vacuum systemInkjet printer
Vacuum diversion control systemSpray code machine
Heat sealing control system

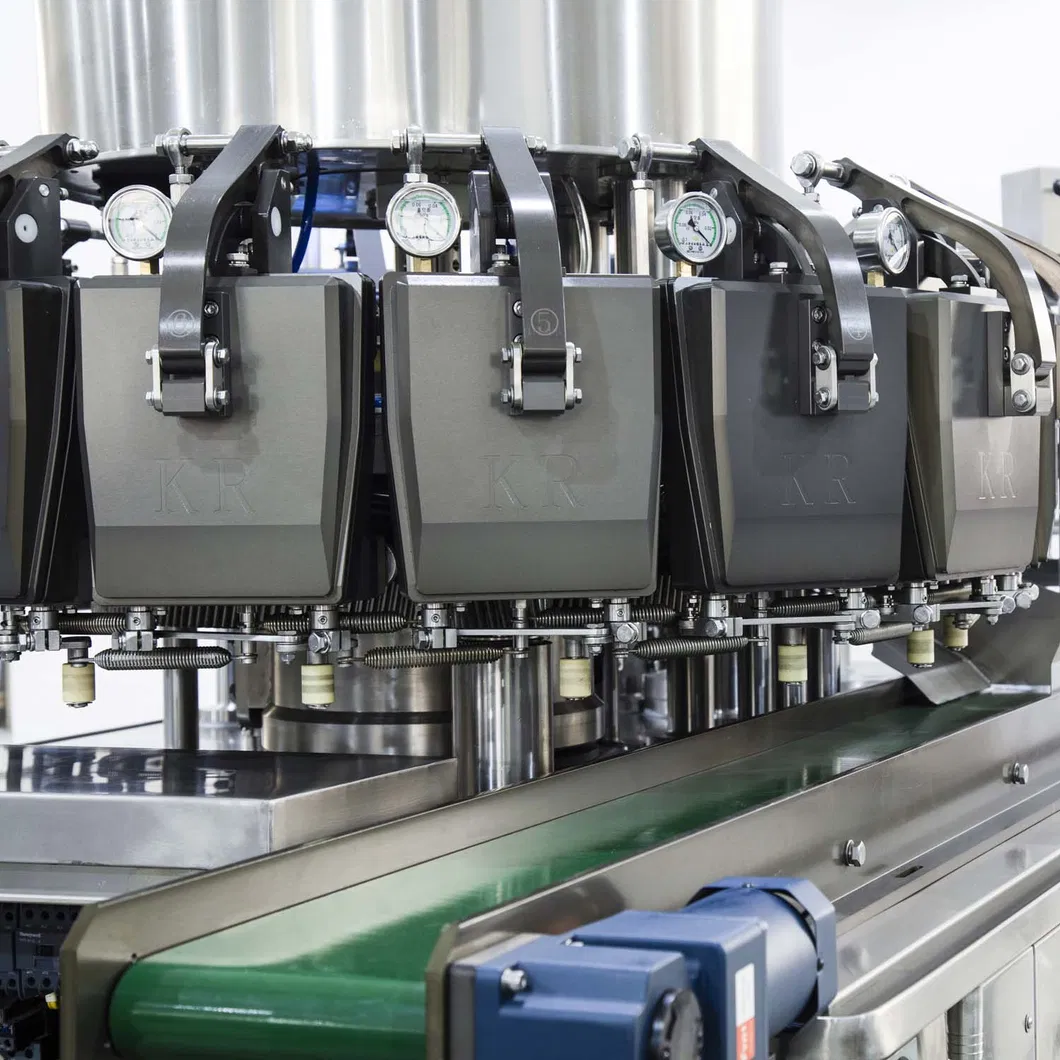

Output system

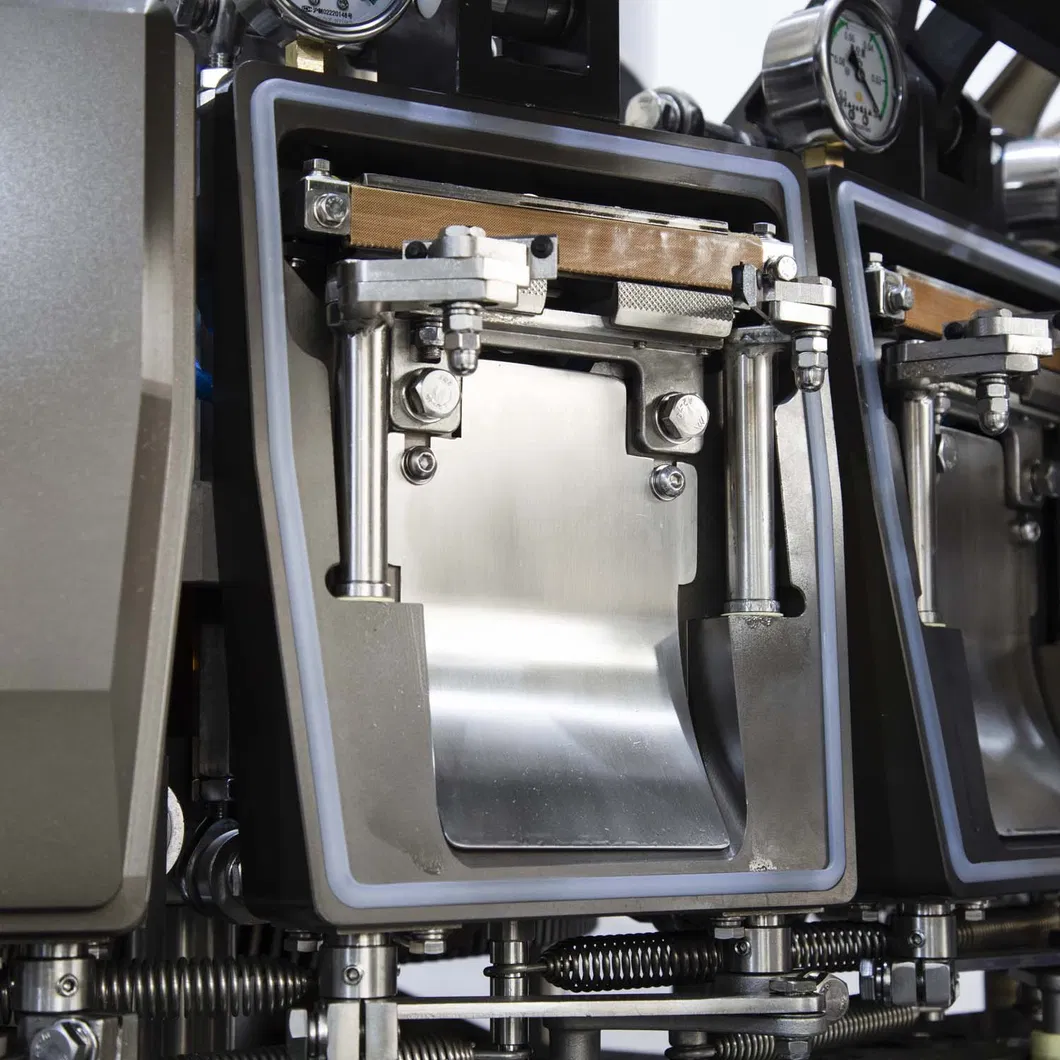

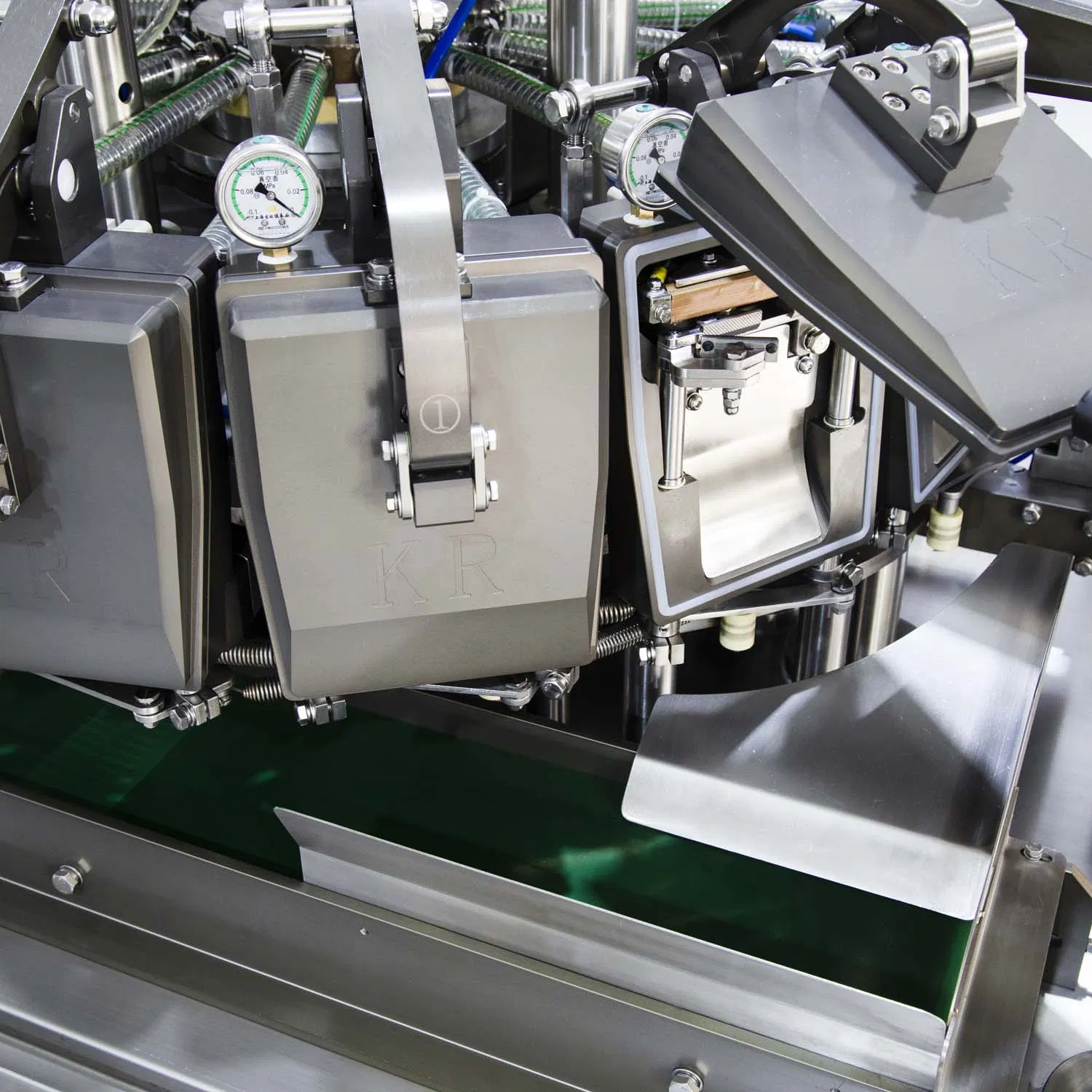

Vacuum chamber

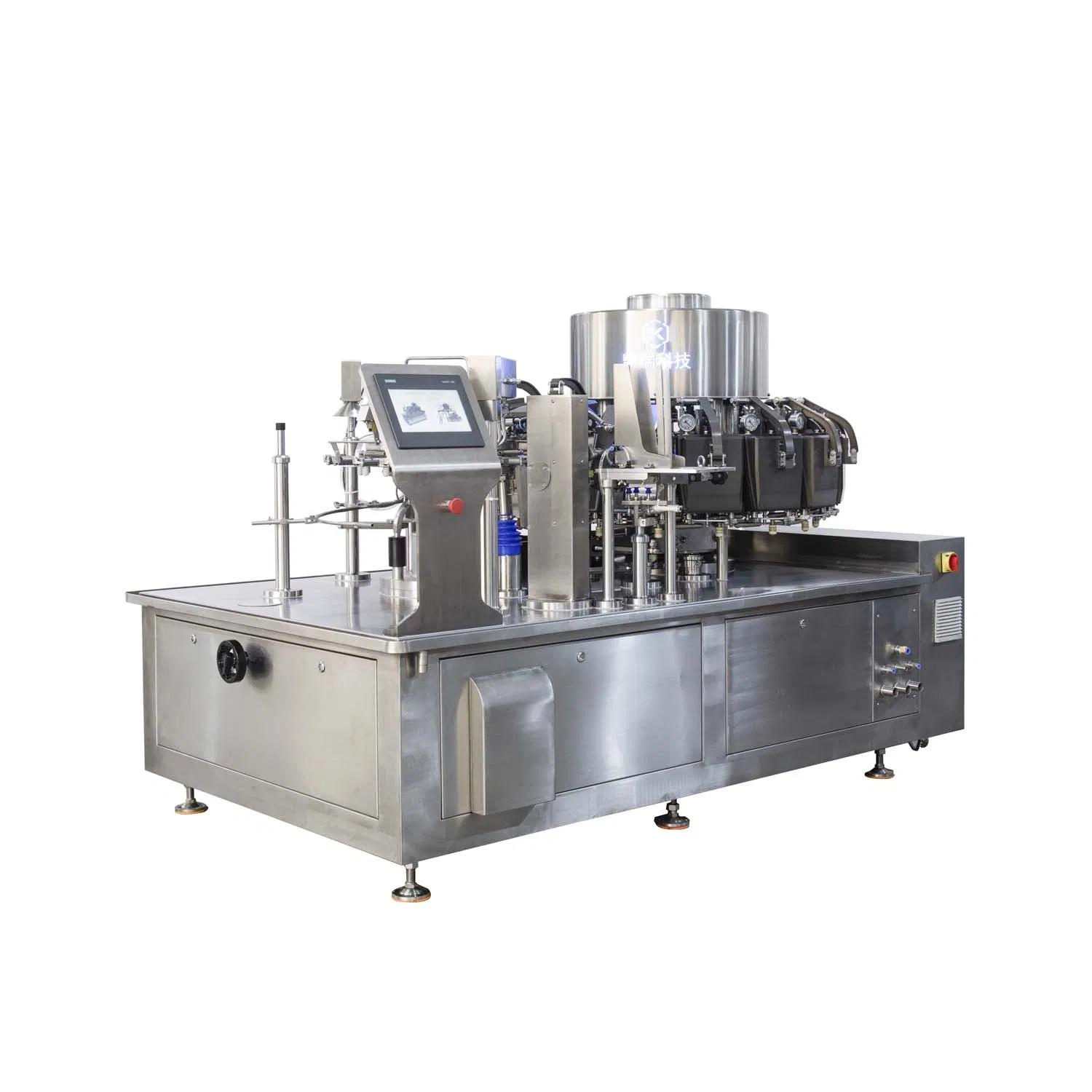

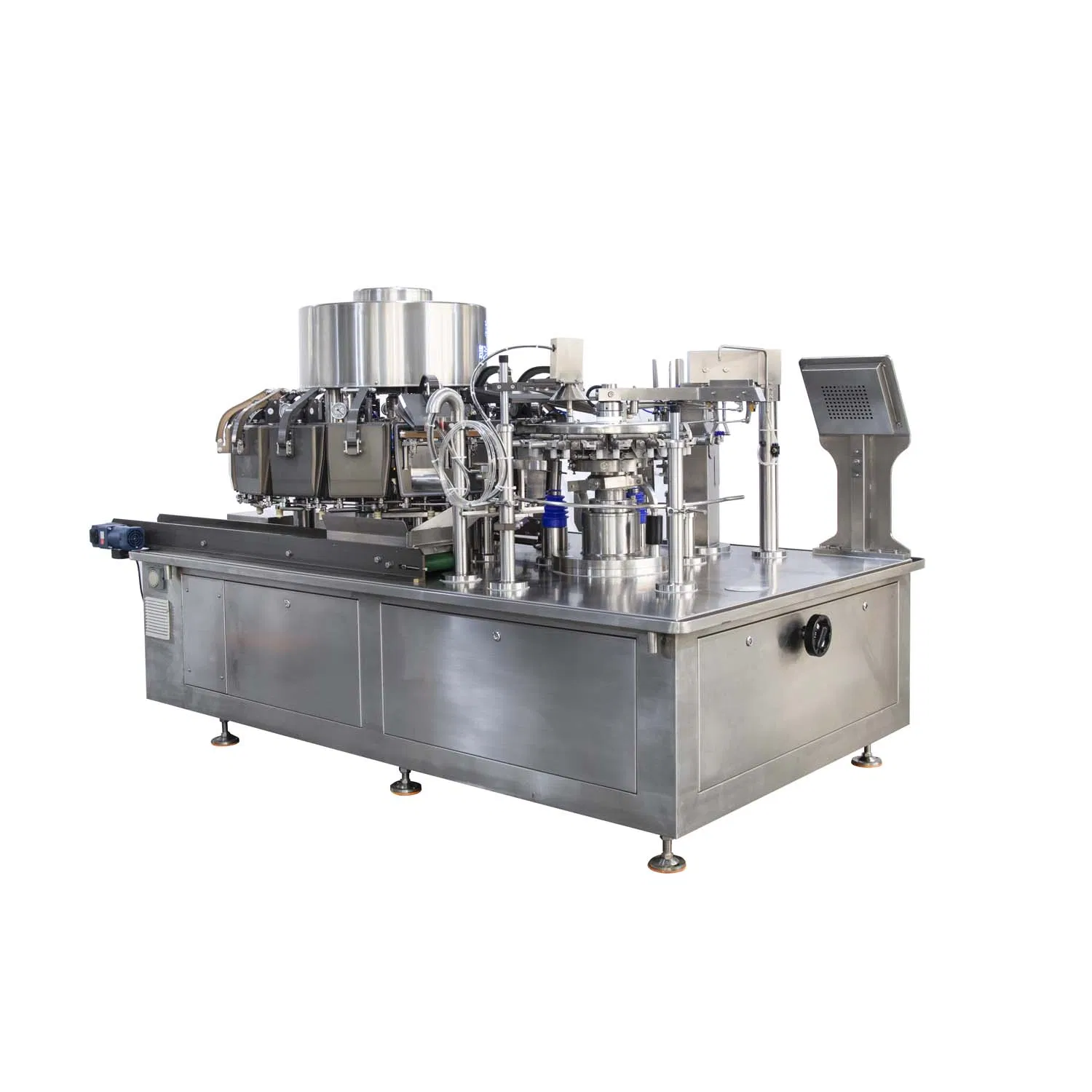

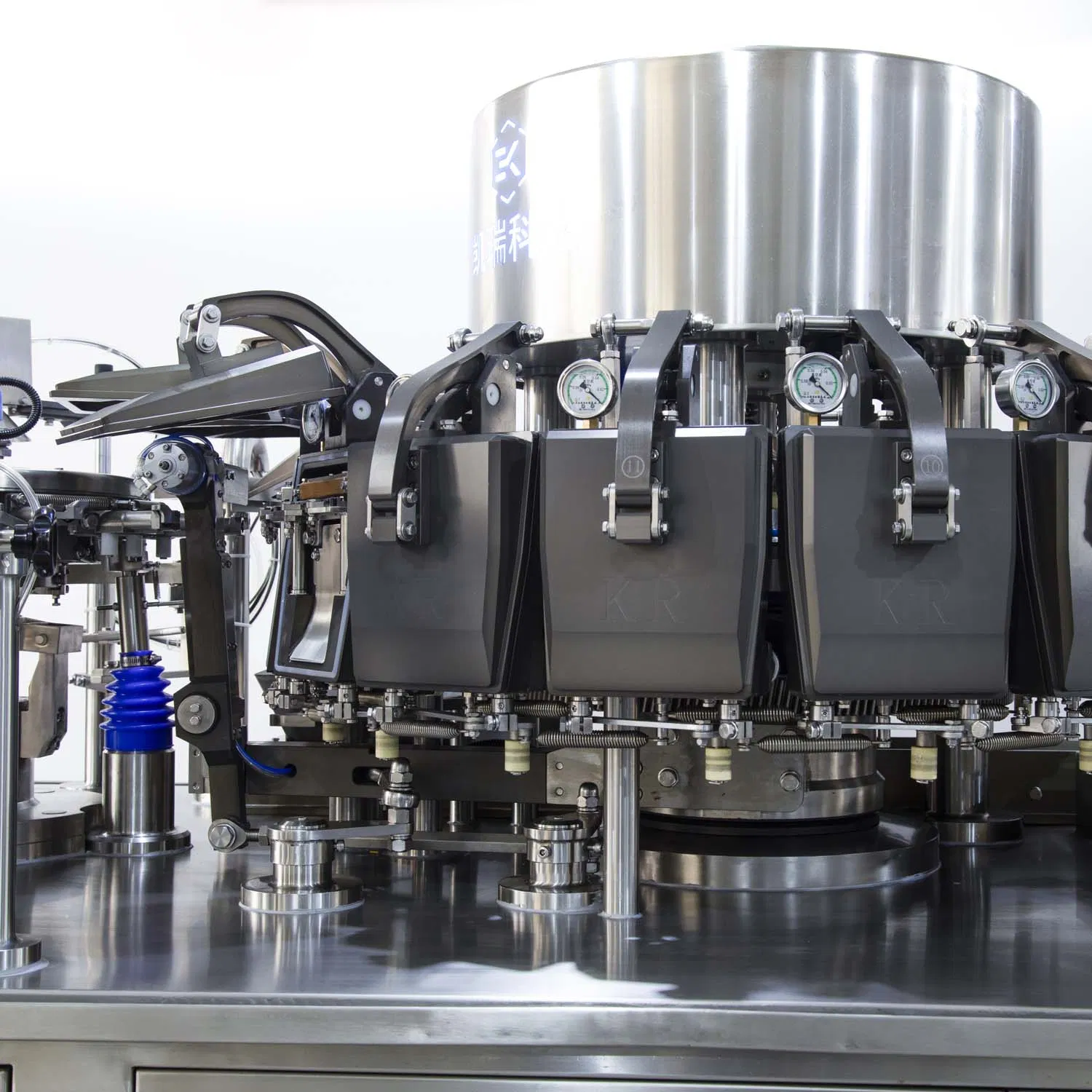

Bag-Feeding Rotary Vacuum Packaging Machine

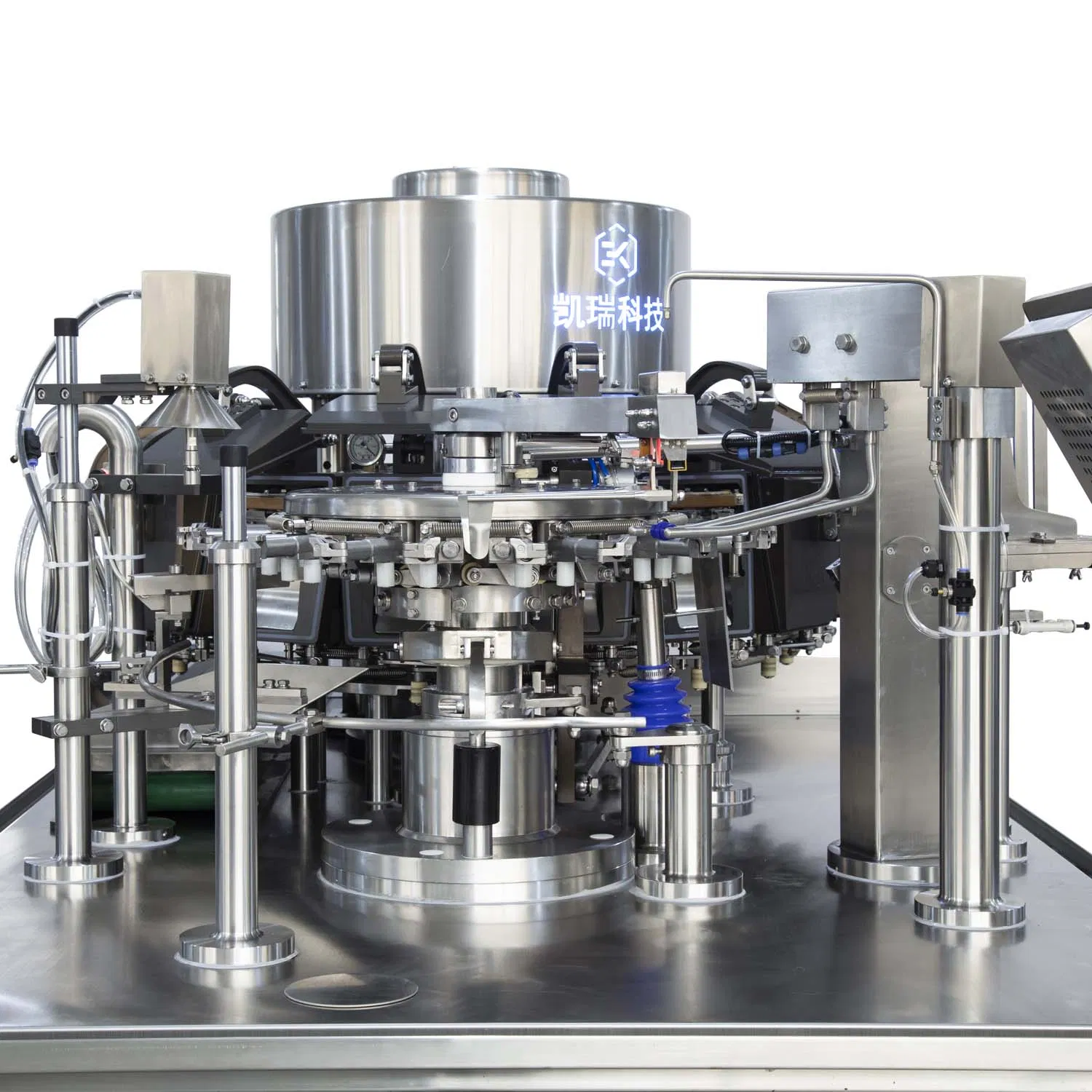

Main Rotary Vacuum Packaging Unit
🔄

Workflow Process

1

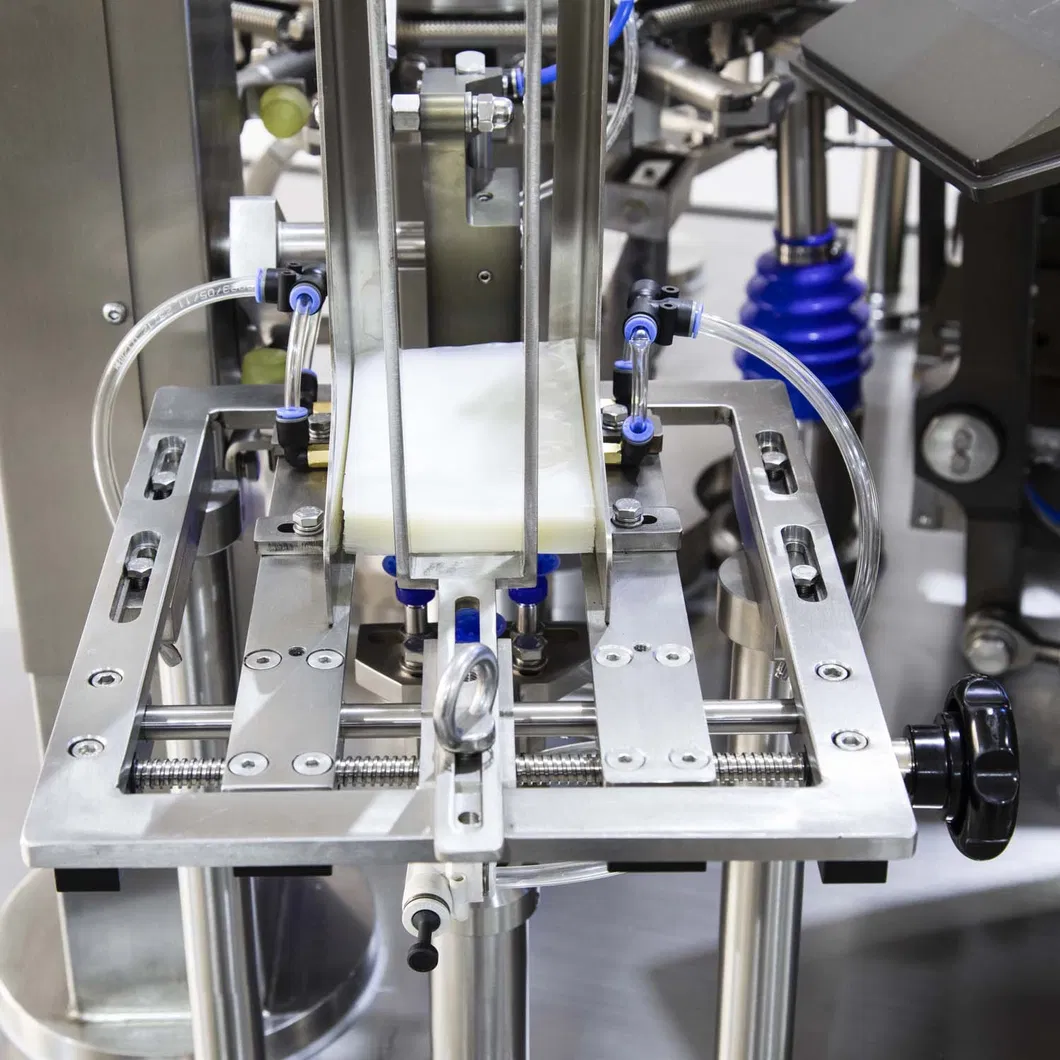

Loading Bag: Mechanical arm takes bags from the storehouse to the rotary table grippers.
2
Date Printing: Optional coding machines print production dates and batch numbers.
3
Opening Bag: Suction cups and support plates ensure the bag is completely opened.
4

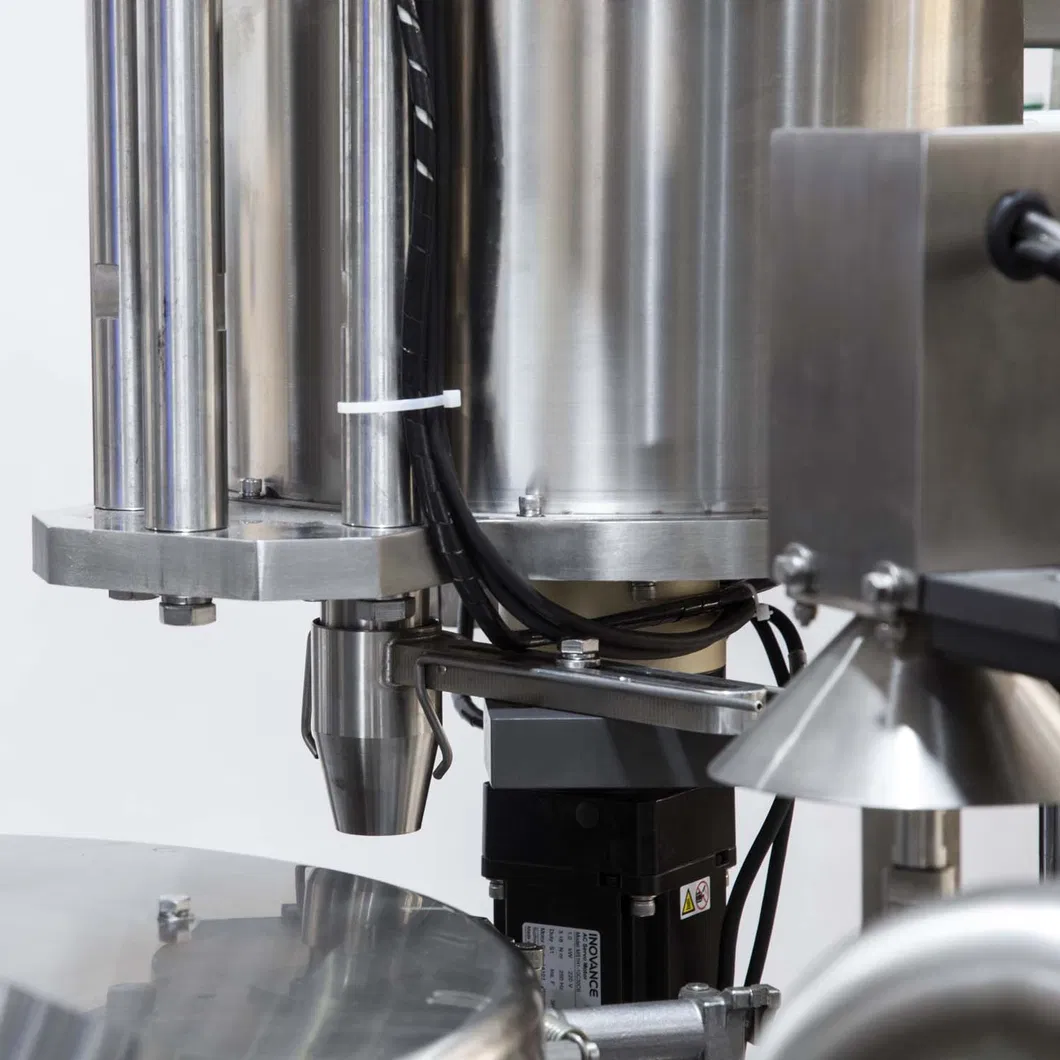

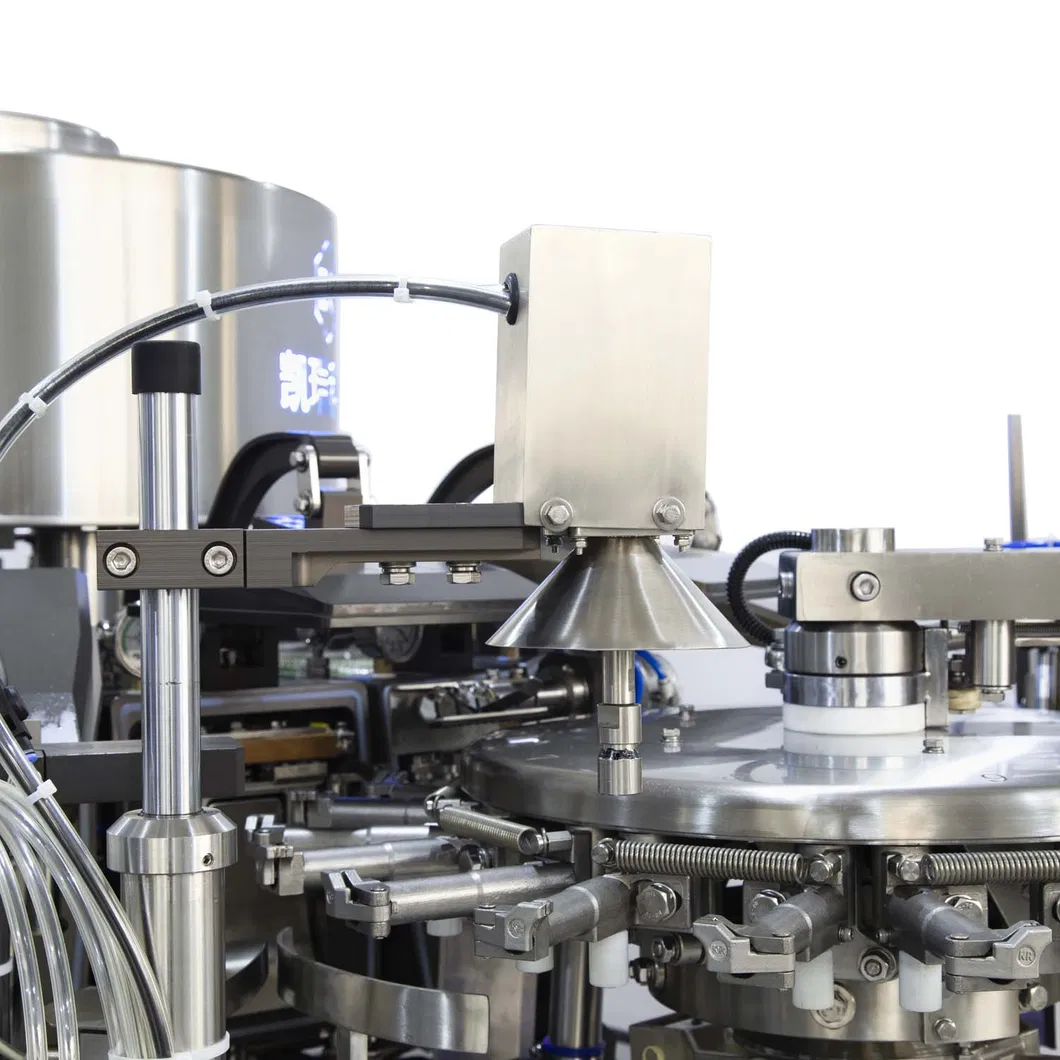

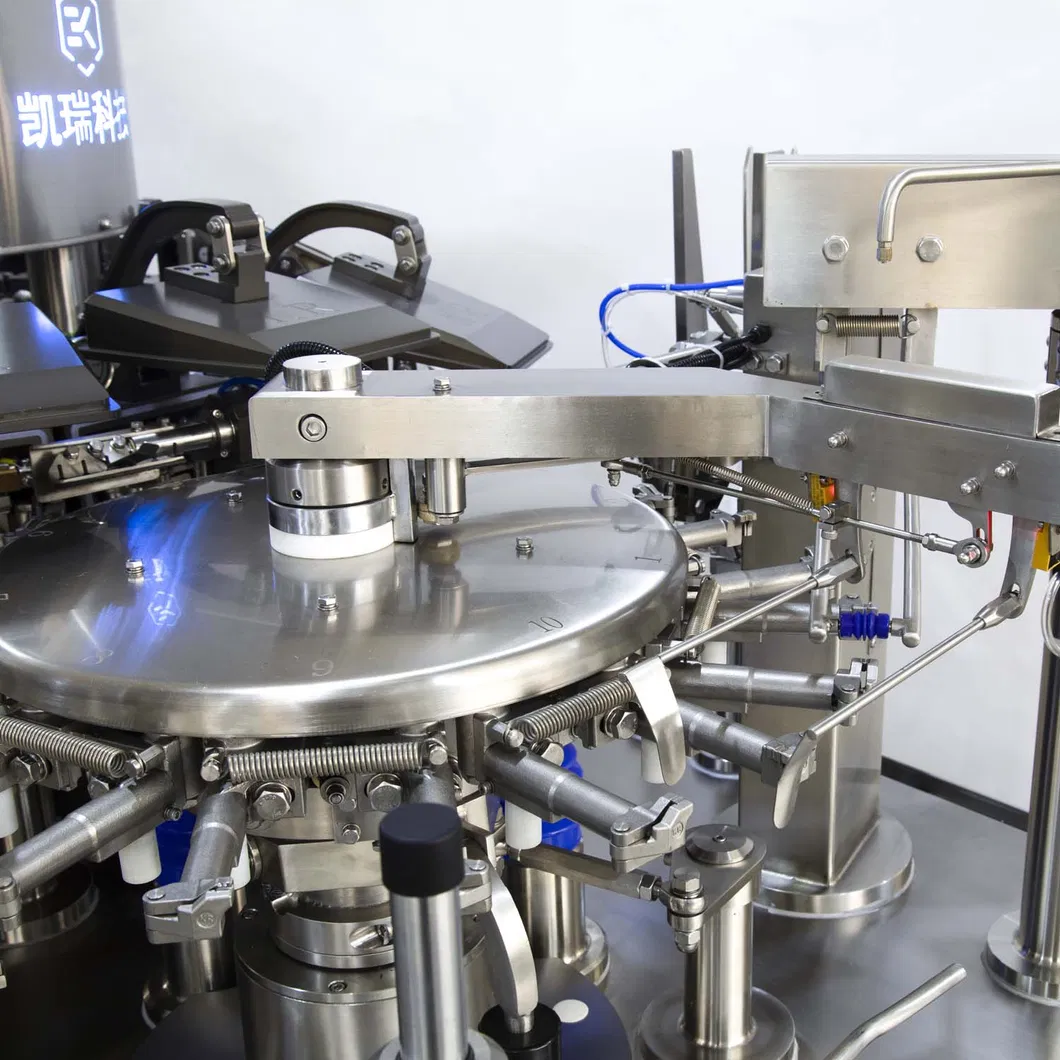

Filling & Vibrating: Automatic feeders deliver materials into the pouch.
5
Bag Straightening: Prepares the bag for vacuuming while checking for material presence.
6
To Vacuum Chamber: Transfer of filled bags into the vacuum turntable; empty bags are recycled.
7
Forming and Output: Final sealing and product discharge.

Frequently Asked Questions

What types of products can this machine handle?
It is versatile and can pack solids (candy, cookies), granules (seeds, grains), pastes, and liquids.
What is the production speed of the KRZK16-110?
The machine can reach a packing speed of 110 to 130 packages per minute, depending on the material.
Does the machine save bags if they are not filled?
Yes, it features a smart sensor system where bags without material added are not passed to the vacuum chamber and can be recycled.
What materials are used in construction?
All parts in contact with food are made of 304 stainless steel or other food-grade materials to ensure safety.
Is the bag width adjustable?
Yes, the automatic bag feeding device can adjust to different bag widths quickly in a single operation.
What happens if the heating element fails?
The machine includes a sealing temperature monitoring function that triggers an automatic alarm on the touch screen.
