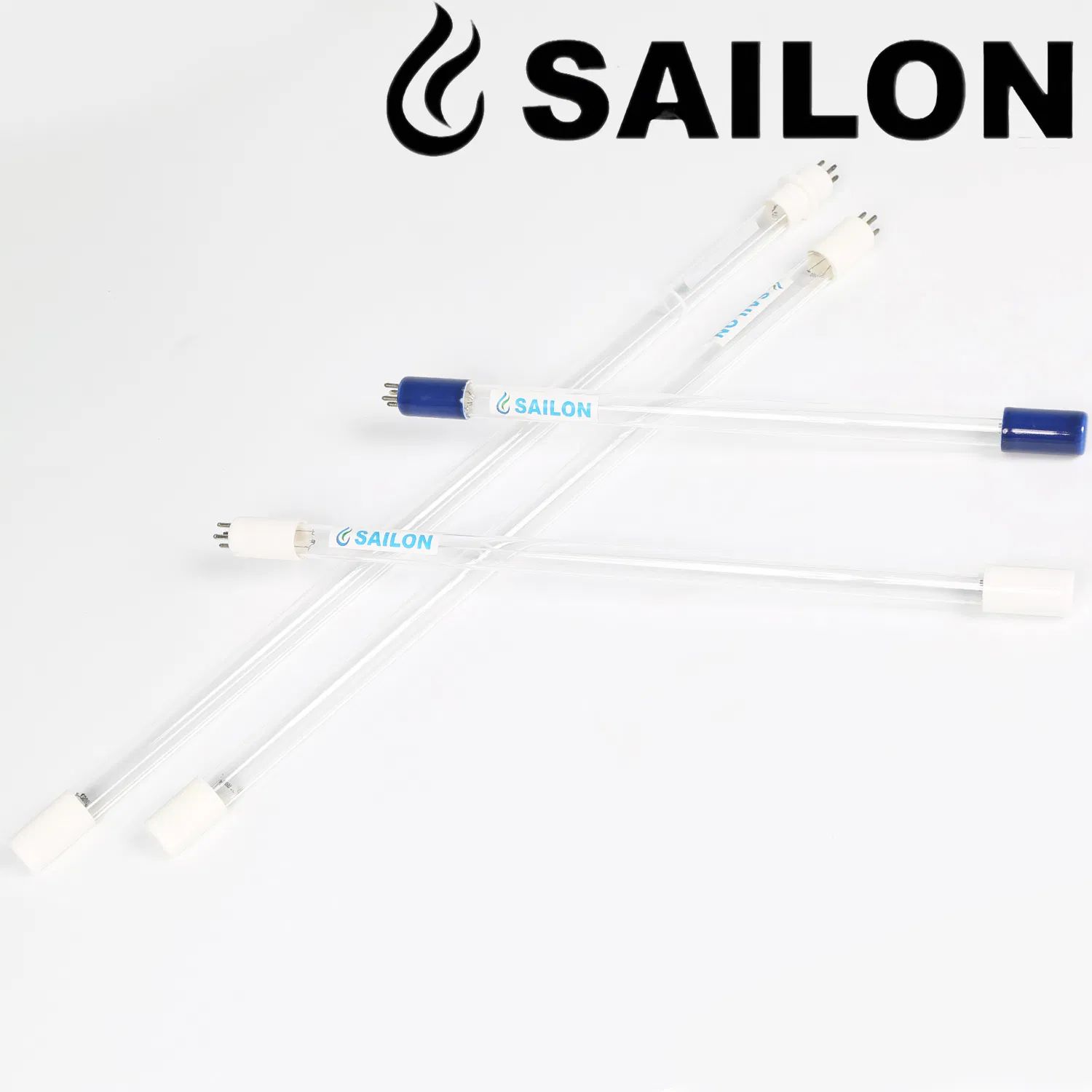

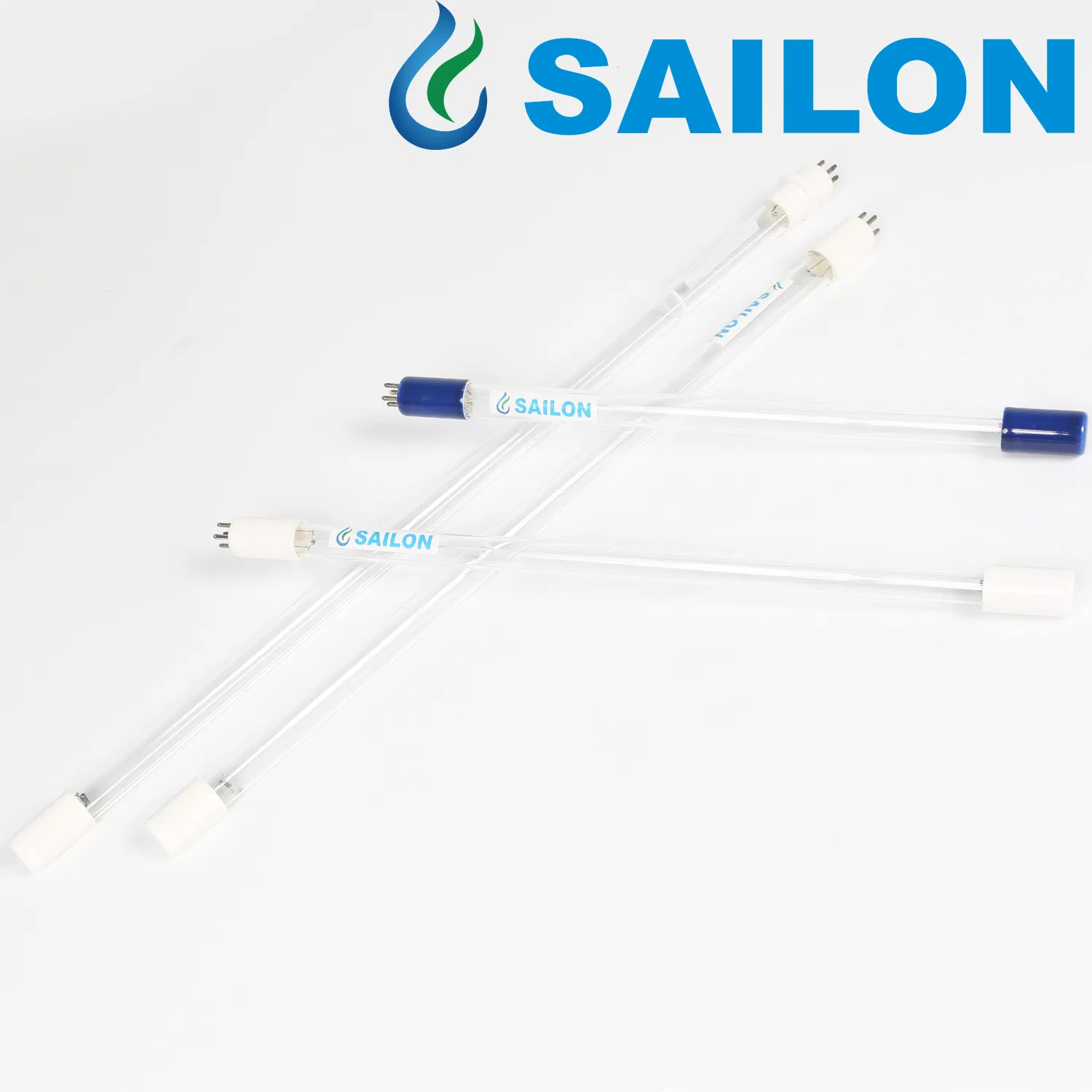

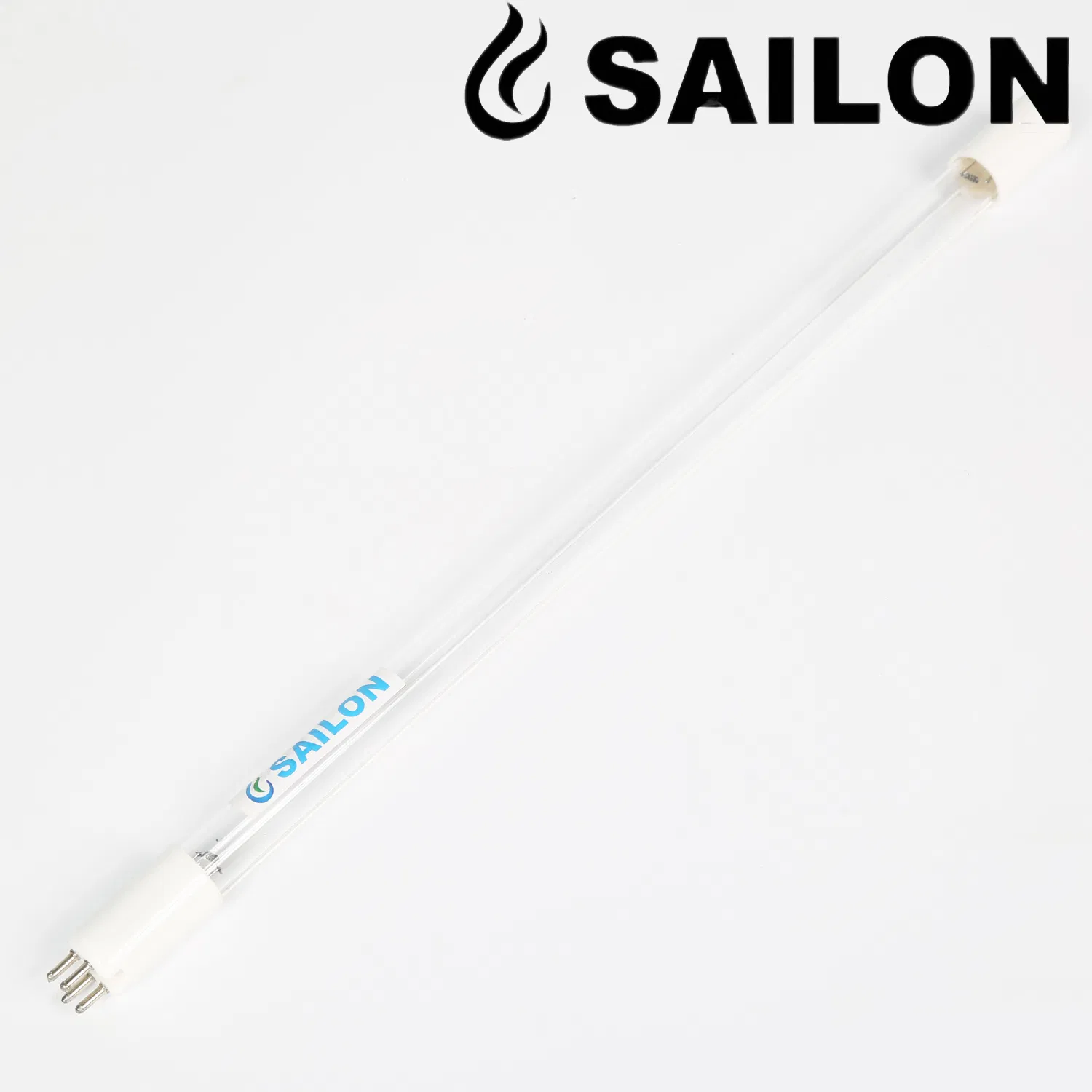

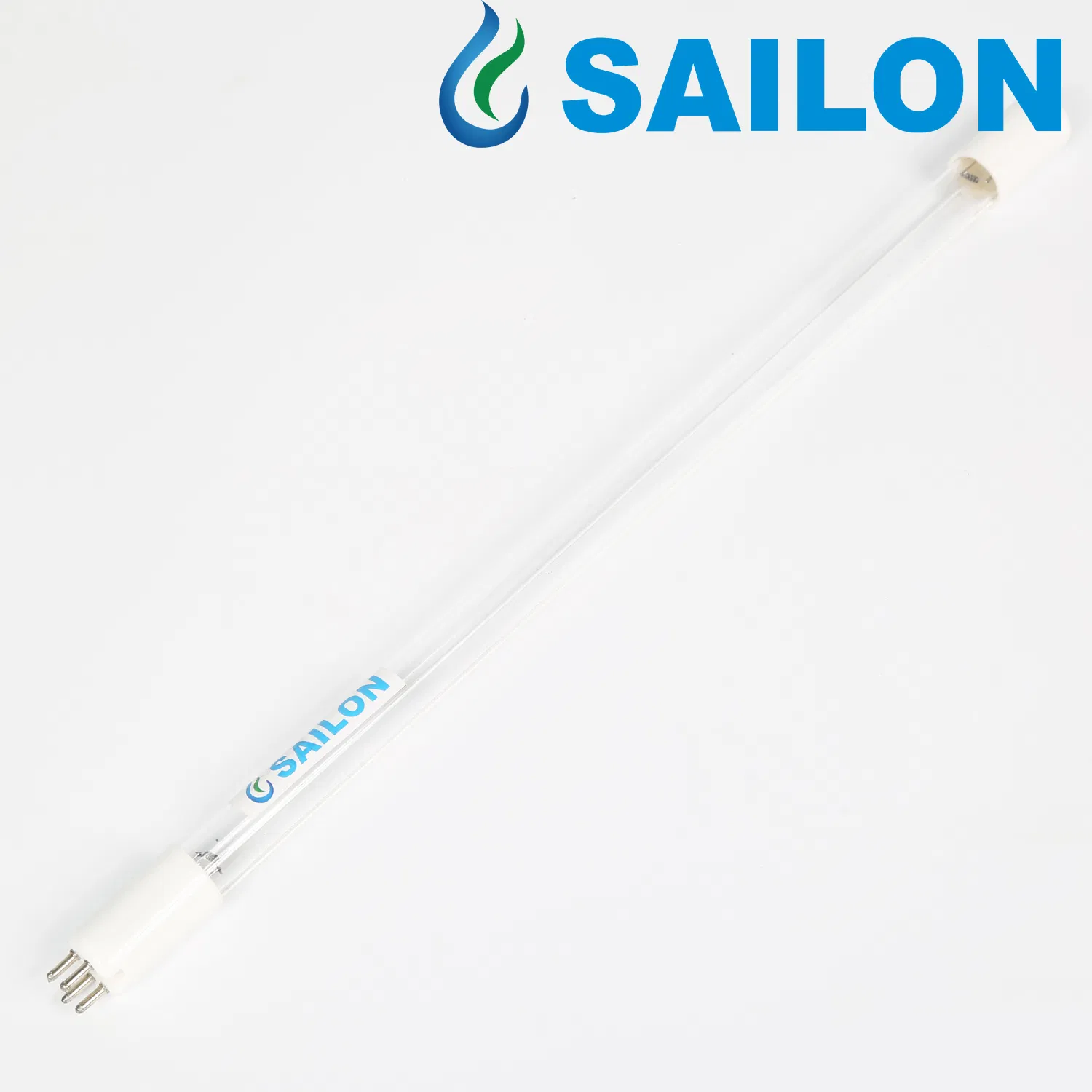

Powerful Ozone UV Lamp for Effective Water Sterilization

Basic Information

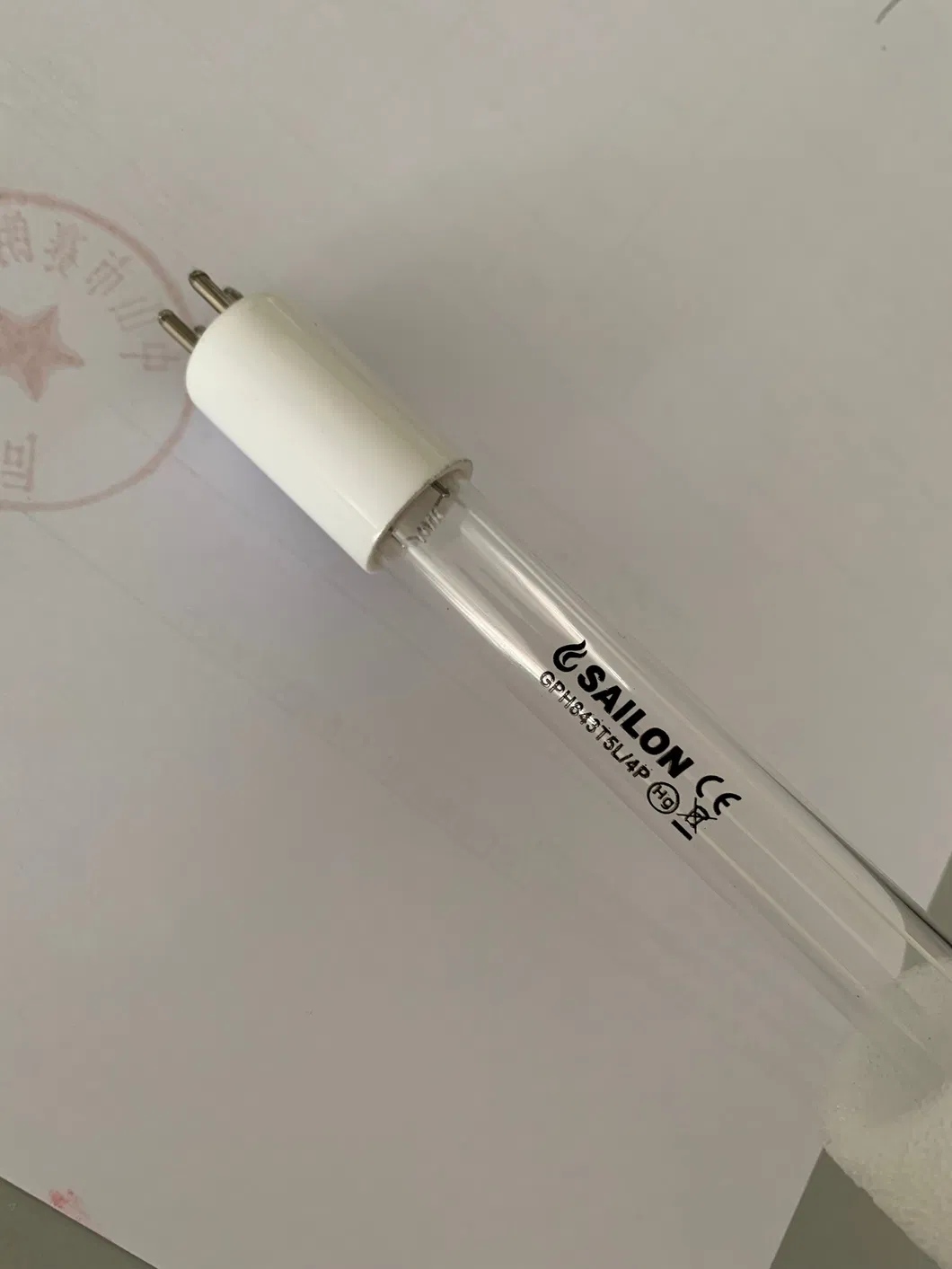

Model NO.GPH843T5L/HO

WavelengthUV-C (254nm / 185nm)

MaterialQuartz Glass

Power80W

Lamp Life8000-13000 hrs

Diameter15mm

Length843mm

CertificationCE, RoHS

Product Description

High-efficiency ozone and ozone-free UVC lamps designed for professional sterilization. The ozone-free version operates at 253.7nm to effectively eliminate bacteria, while the ozone version combines 253.7nm and 185nm wavelengths. The 185nm output reacts with air to create ozone, a powerful oxidizer for deep disinfection and deodorization.

Type	Tube Diameter (mm)	Length (mm)	Power (W)	Current (mA)	UV Output (uw/cm²)	Standard Life (H)
GPH357T5L/HO	15	357	32	800	95	10000
GPH436T5L/HO	15	436	48	800	120	10000
GPH846T5L/HO	15	846	80	800	260	10000
GPH1148T5L/HO	15	1148	120	800	310	10000
GPH1554T5L/HO	15	1554	145	800	400	10000

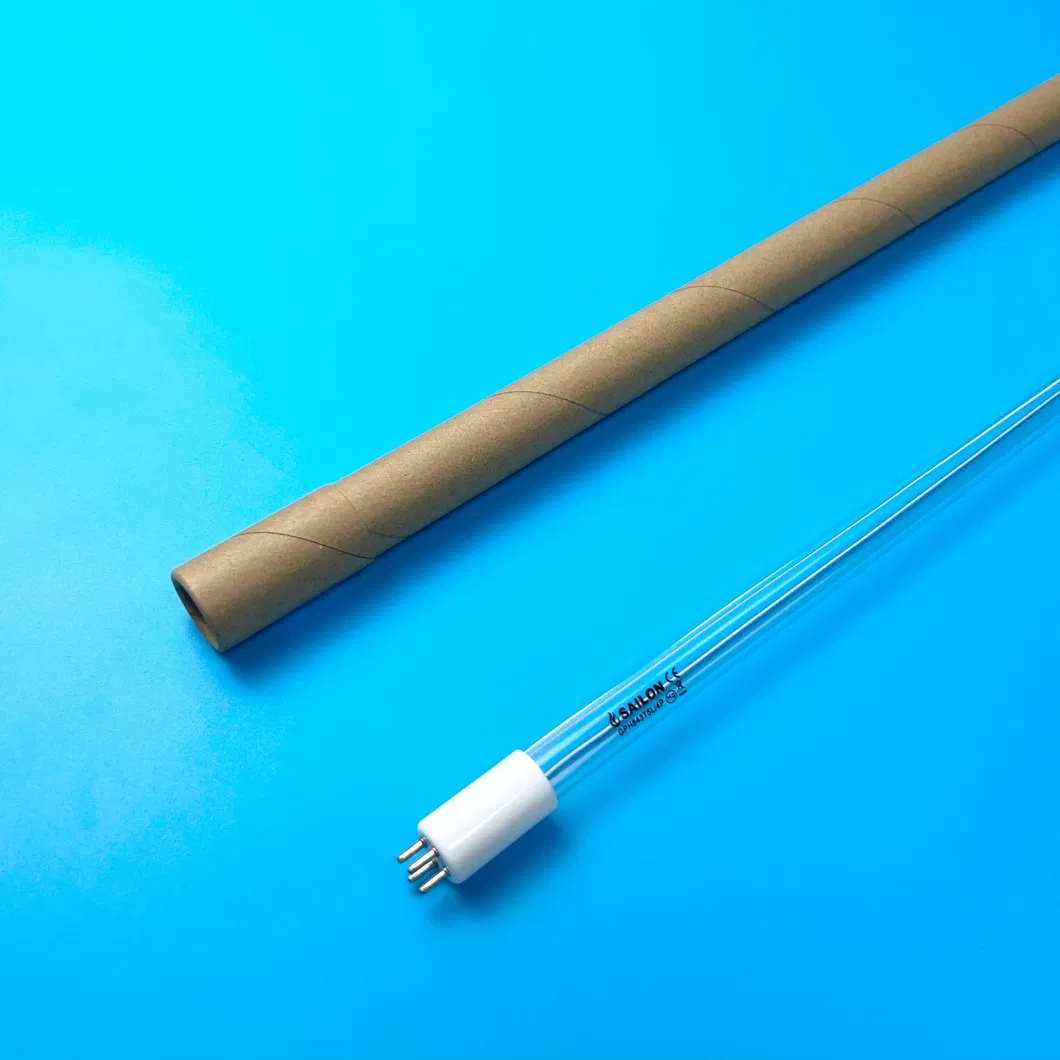

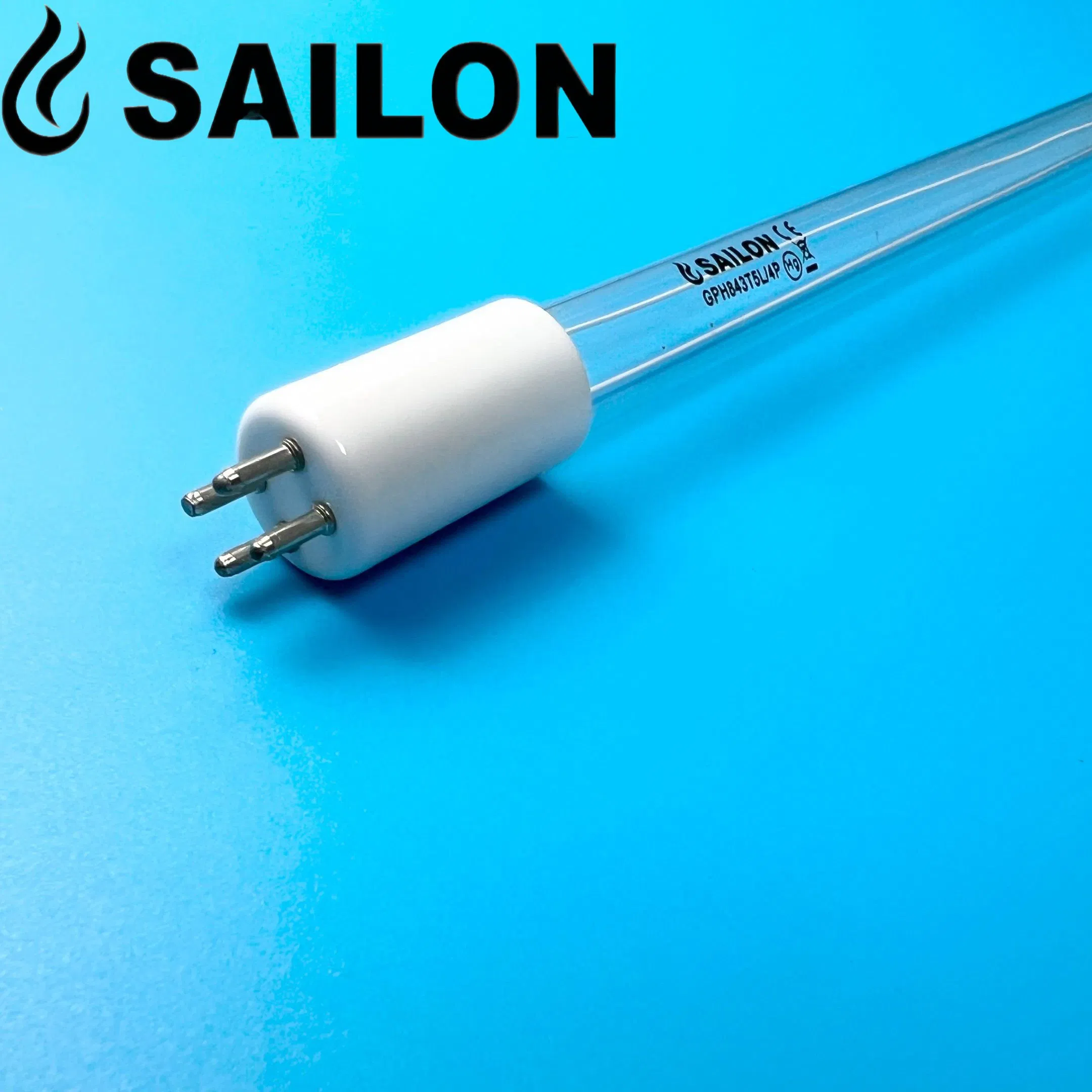

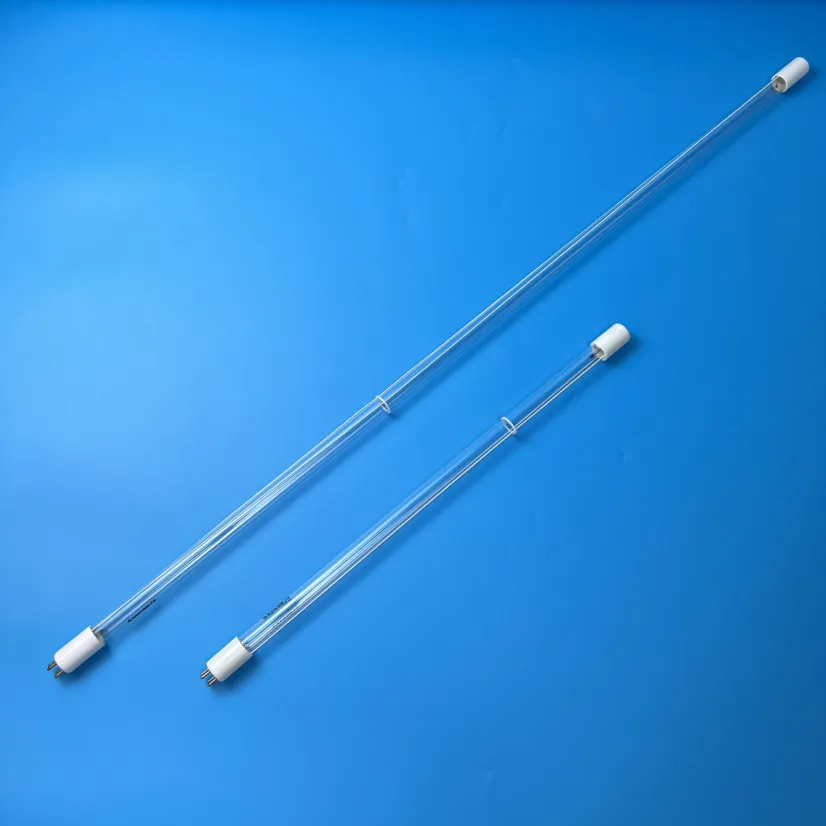

Detailed Product Display

Wide Range of Applications

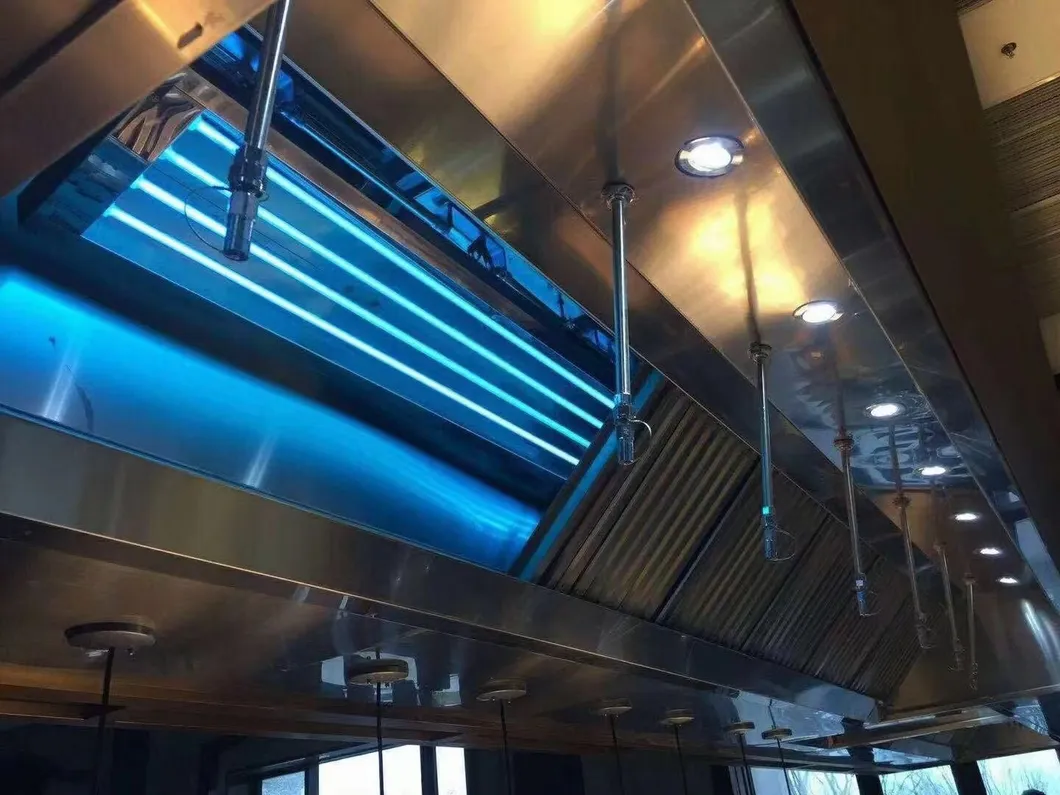

Air Sterilization: HVAC systems, commercial kitchens, hospitals, and residential air cleaning.
Surface Sterilization: Food processing facilities, clean rooms, school labs, and biotech research centers.

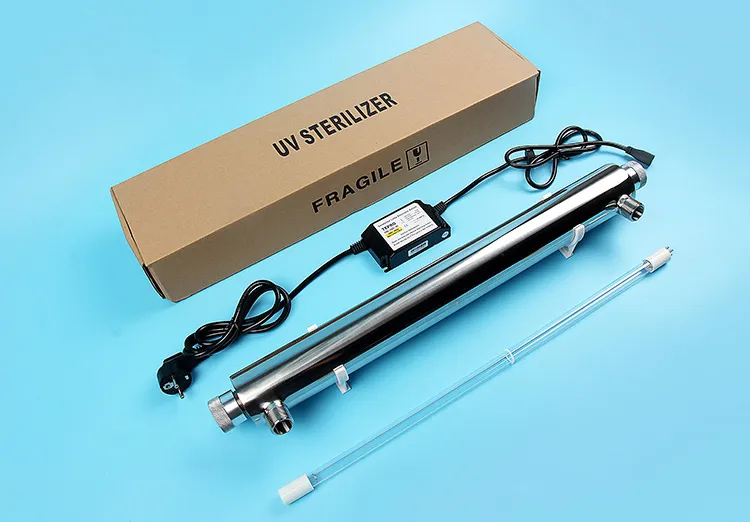

Water Disinfection: Swimming pools, spas, aquaculture, wastewater treatment, and drinking water systems.
Specialty Use: TOC reduction in semiconductor manufacturing and ultrapure water production.

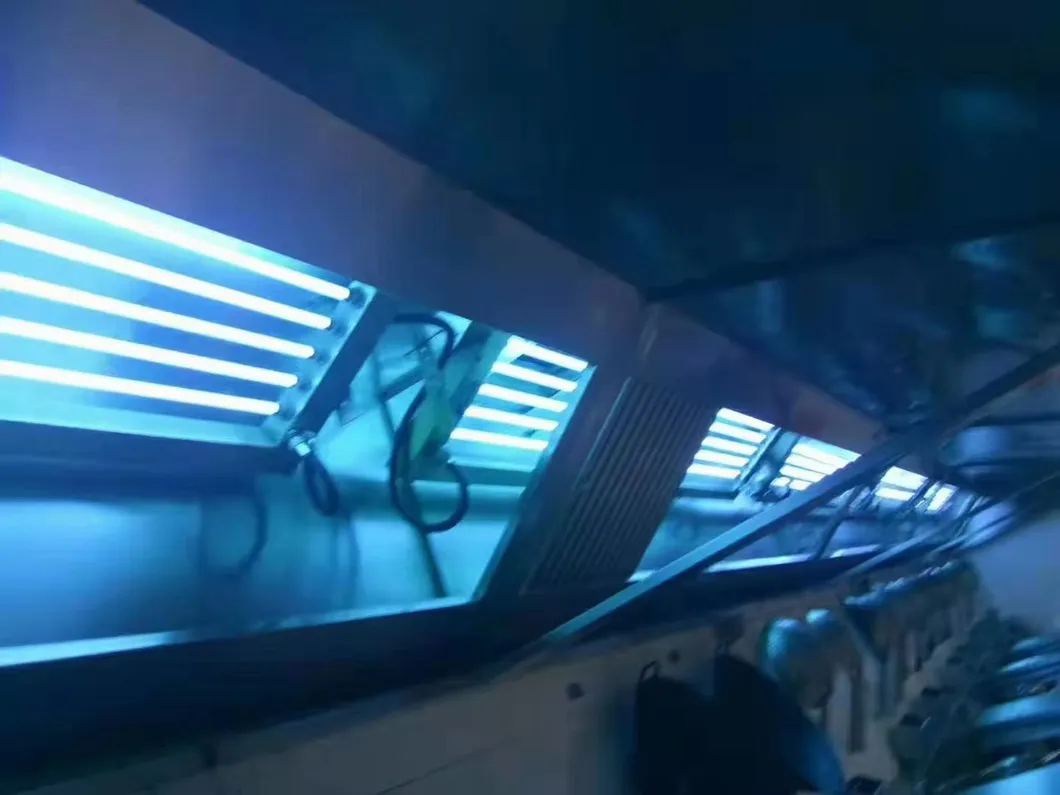

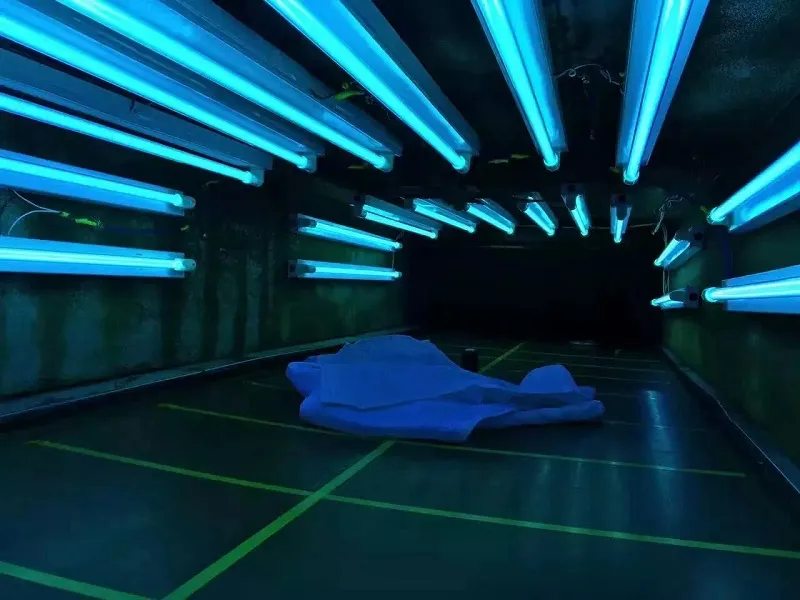

Exhibition & Quality Control

Certifications

Packaging & Delivery

Products are carefully packed using plywood or reinforced cartons to ensure safe international transport.

Frequently Asked Questions

Q1: Can I request samples of the UV Lamp? A: Yes, we welcome sample orders to test and check the quality before mass production.

Q2: What is the typical lead time for orders? A: Lead time is approximately 5-7 days for samples and 15-20 days for mass cargo orders.

Q3: Do these UV lamps come with a warranty? A: Yes, we offer a 1-year warranty on our UV lamps to ensure customer satisfaction and product reliability.

Q4: What are the main applications for these lamps? A: Our lamps are widely used for water treatment, aquariums, medical disinfection, and air purification systems.

Q5: What is the difference between normal and amalgam lamps? A: Amalgam lamps increase UV output efficiency by 2-3 times for the same length and maintain high-intensity radiation stably in environments ranging from 4 to 60 degrees Celsius.

Q6: Do you accept OEM or ODM requests? A: Yes, we provide OEM services, allowing for customized packaging and logo integration on the products.
