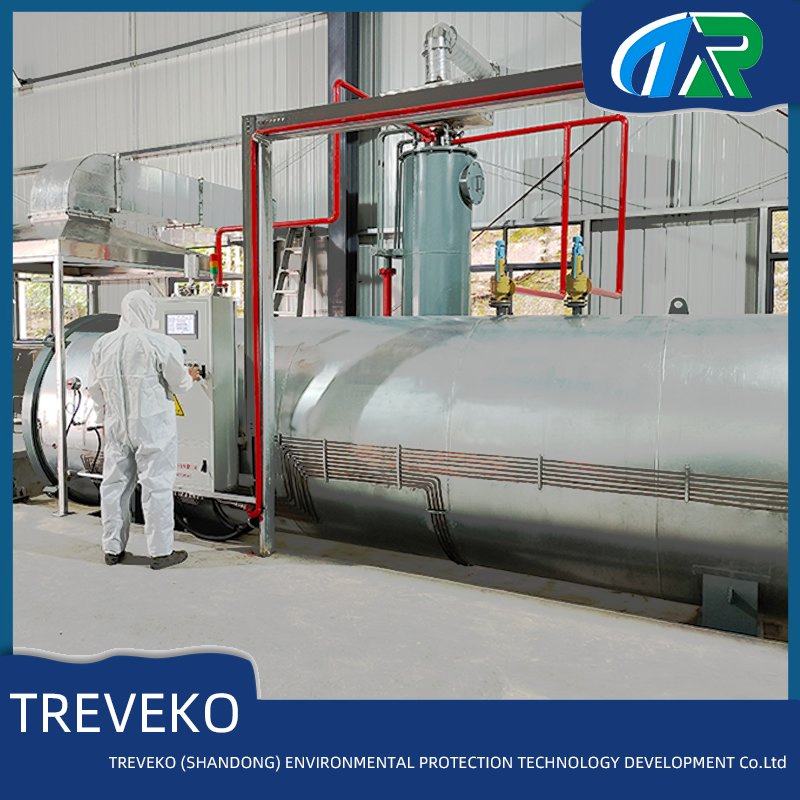

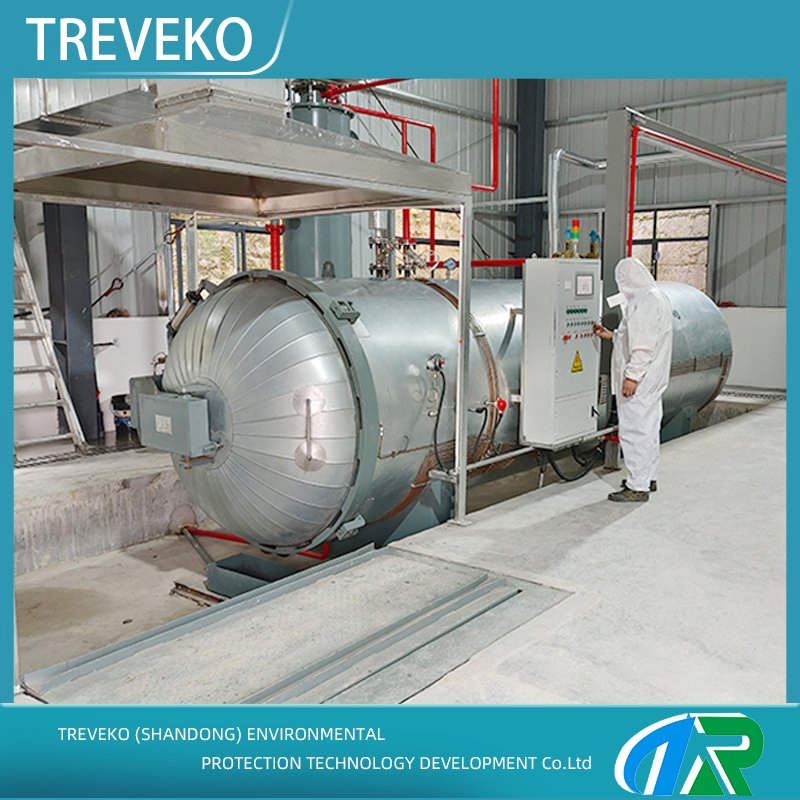

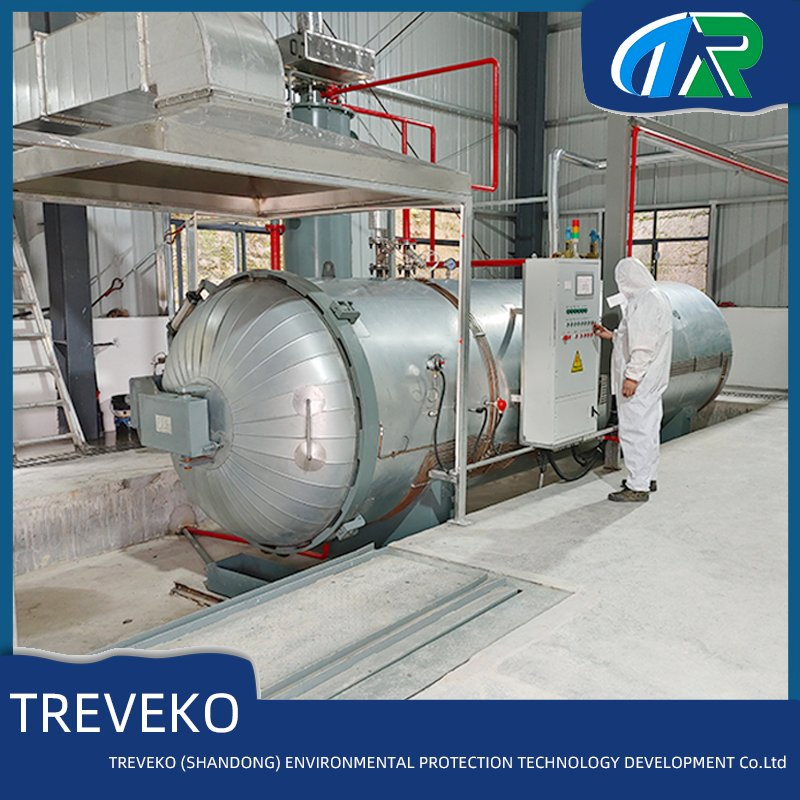

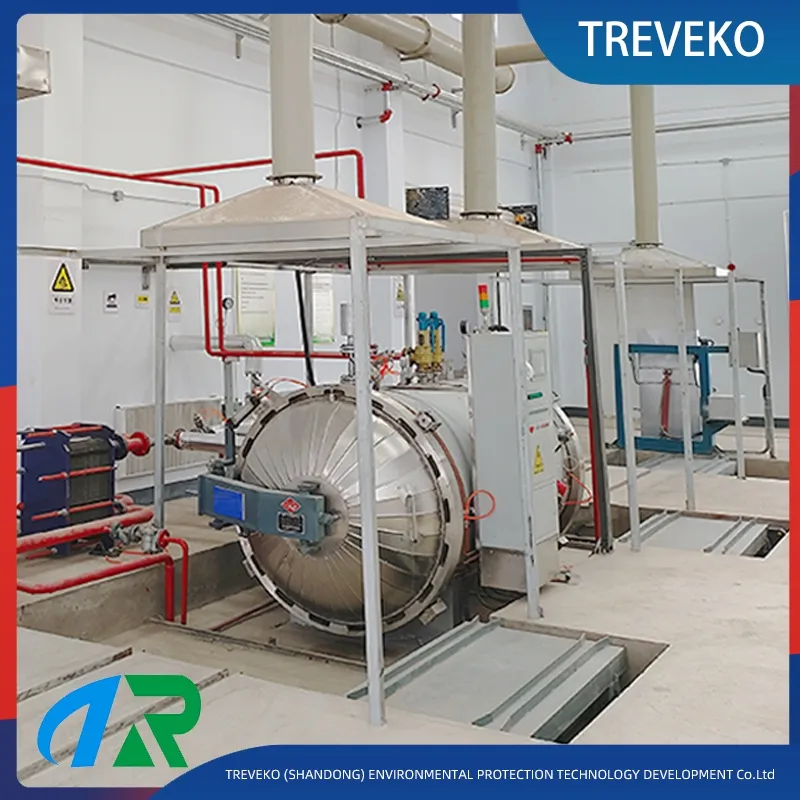

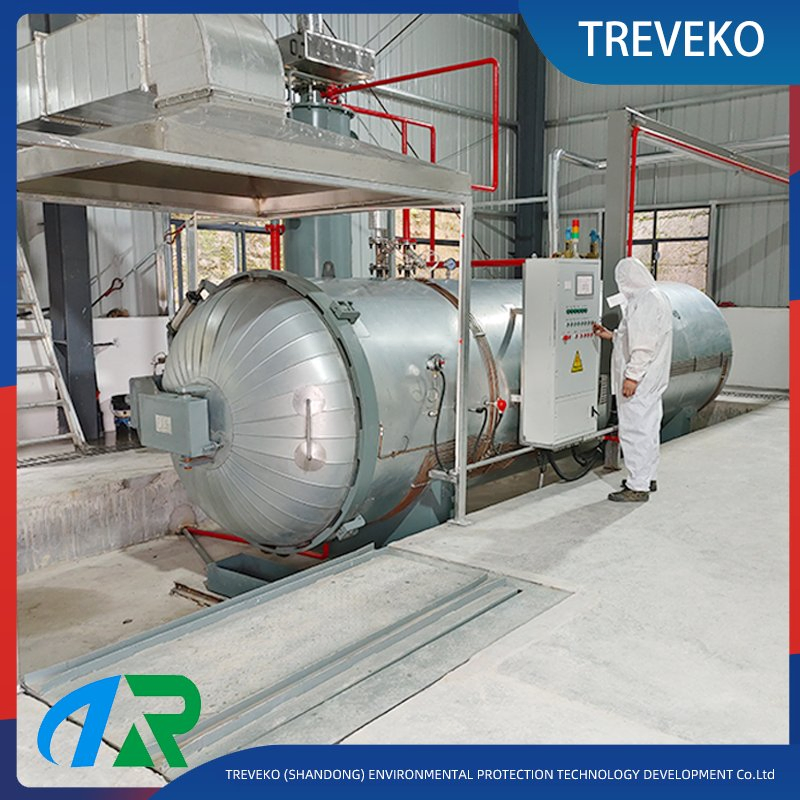

This Medical Waste High-Temperature Steam Sterilization System is a complete emergency disposal solution with a design capacity of 3.2 tons per day.

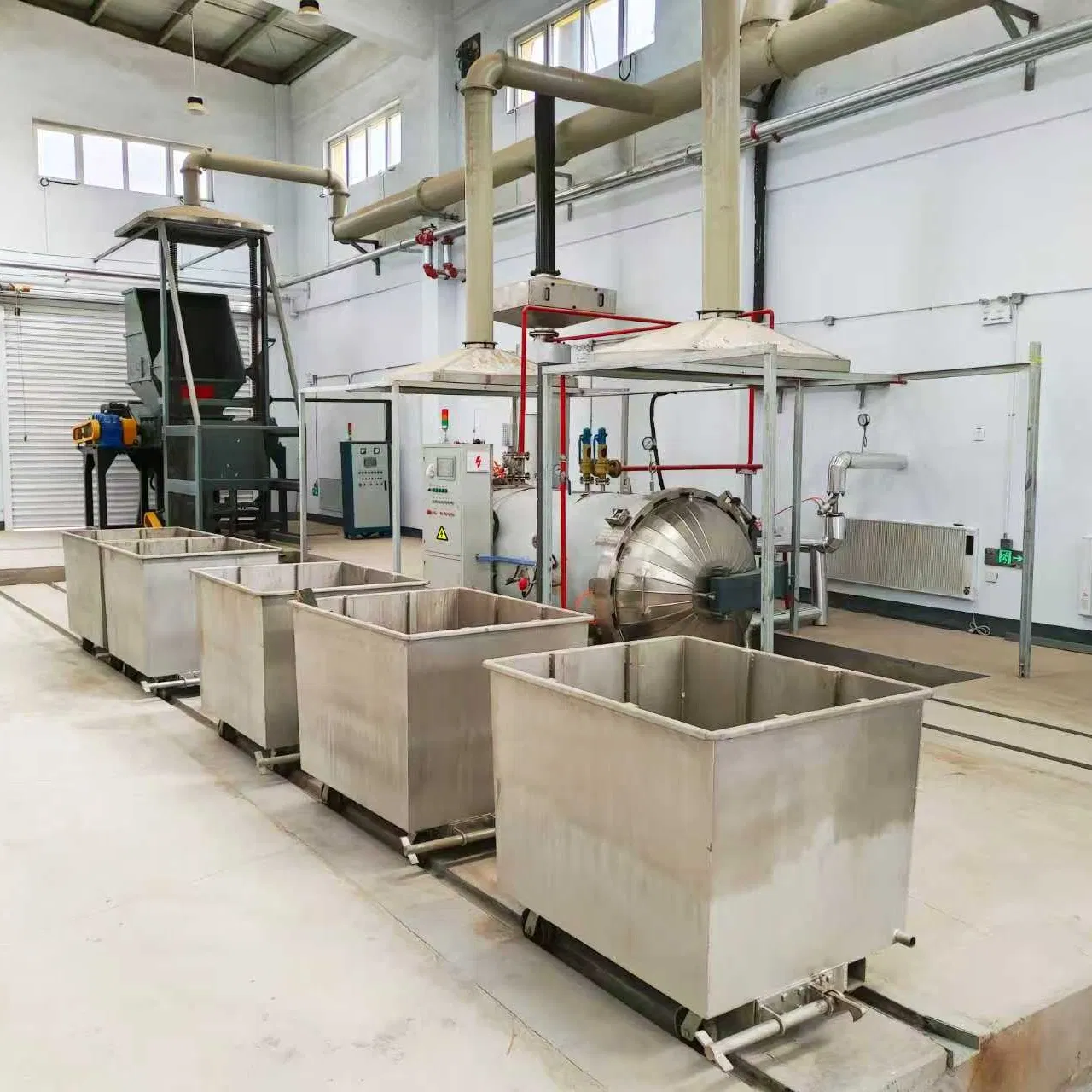

Loading & Sterilization: Waste is loaded into dedicated stainless-steel sterilization carts and automatically transferred into a horizontal cylindrical sterilizer (≥1700mm dia. x ≥4500mm length).
High-Temperature Treatment: The vessel operates at ≥0.22 MPa and ≥135°C for ≥45 minutes, utilizing pre-vacuum and post-vacuum cycles for effective air removal, sterilization, and drying.
Shredding & Disposal: Sterilized waste is automatically conveyed to a dual-shaft shredder (2x18.5KW) for irreversible size reduction, transforming it into ordinary municipal solid waste.
| No. | Project Item | Technical Parameter |
|---|---|---|
| 1 | Model | TR-MJG-3.2 |
| 2 | Processing Capacity | ≥3.2 T/D |
| 3 | Main Material | Q345R Steel (Anti-corrosion, ≥ 16mm) |
| 4 | Sterilizer Type | Circular Horizontal Structure |
| 5 | Diameter | ≥1700mm |
| 6 | Length | ≥4500mm |
| 7 | Furnace Doors | 2 (Rotary Swing Type) |
| 8 | Control System | Automatic PLC with Manual Override |

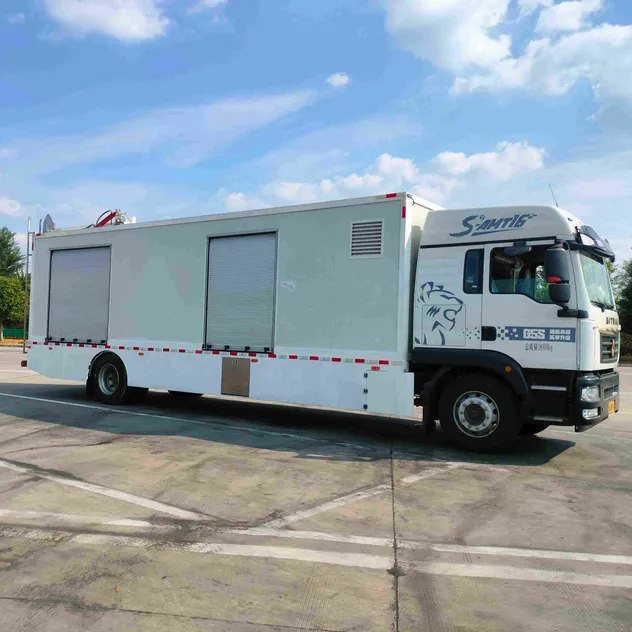

Mobile microwave sterilization

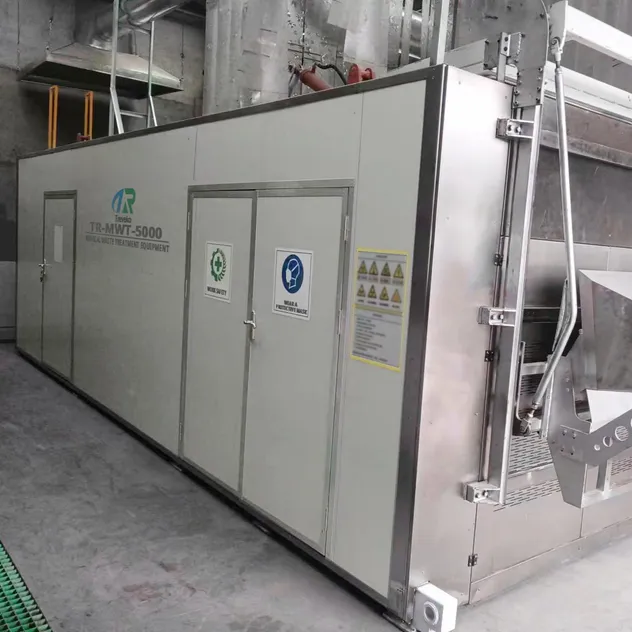

Microwave medical waste treatment

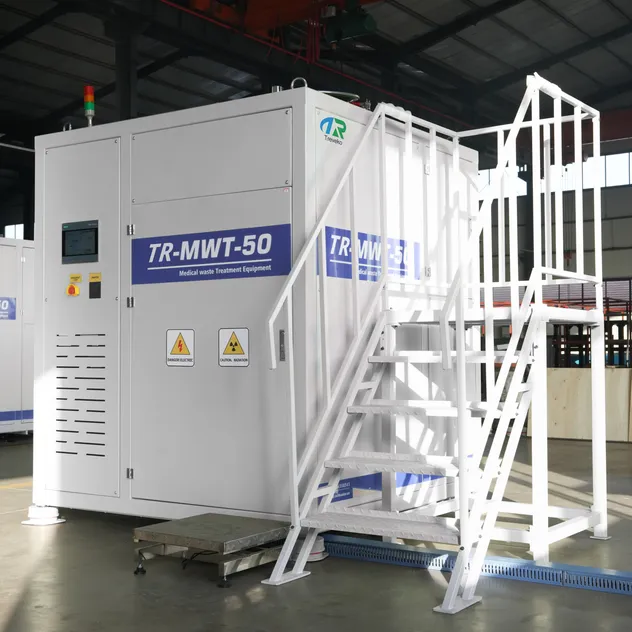

Small microwave treatment

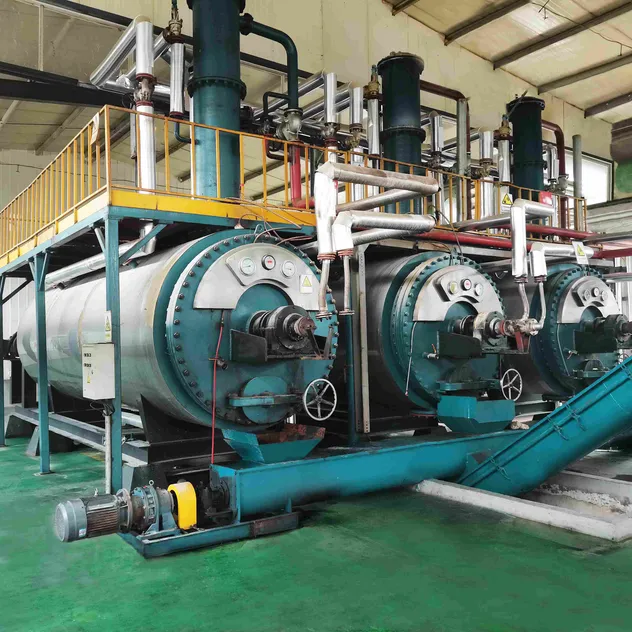

High temperature chemical treatment

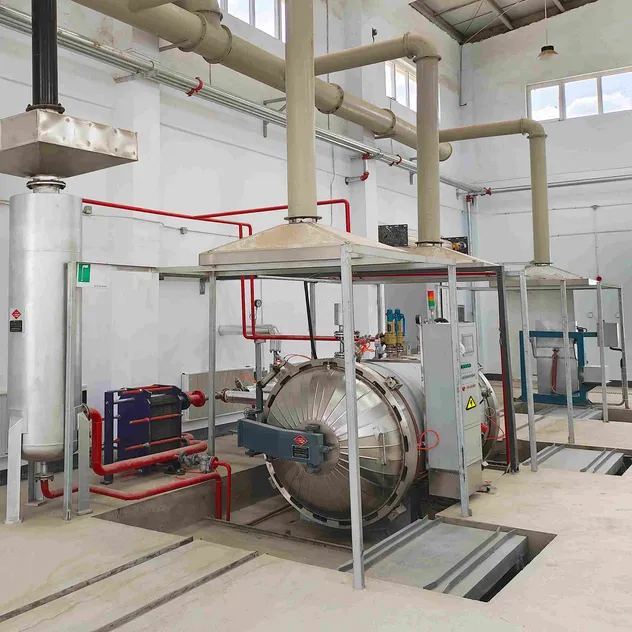

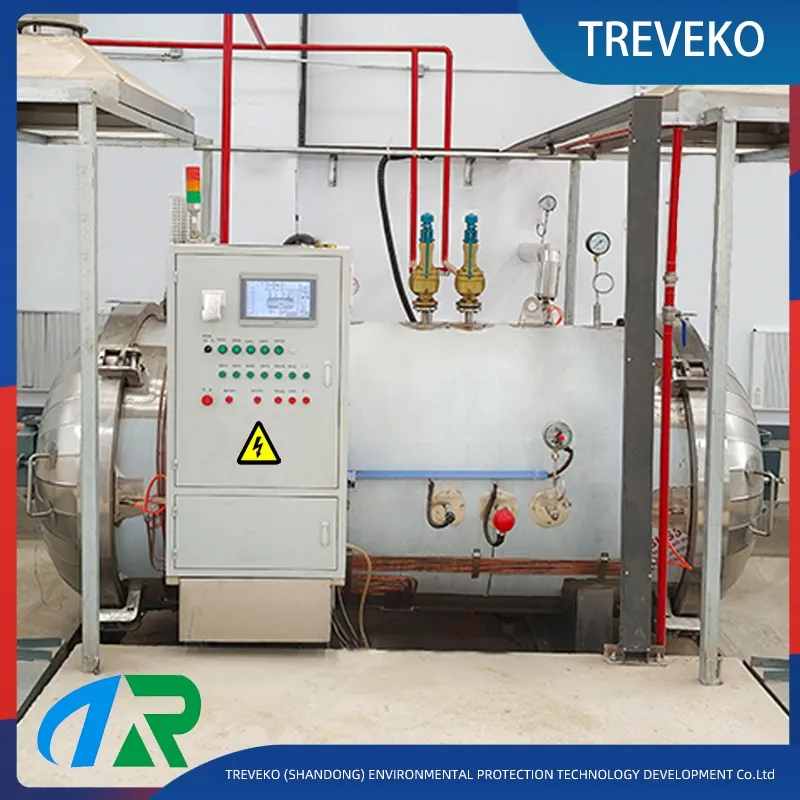

Horizontal steam sterilization

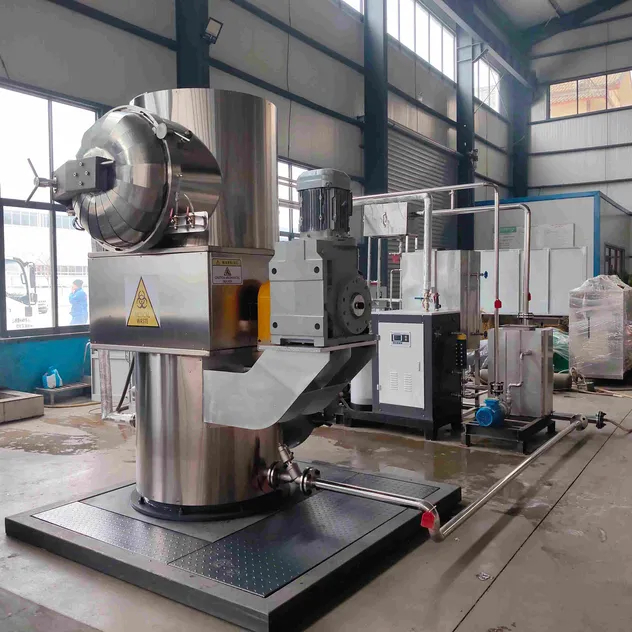

Vertical steam treatment
The system is designed for high-efficiency emergency disposal with a capacity of ≥ 3.2 tons per day, making it suitable for regional medical waste centers.
The equipment operates at a temperature of ≥ 135°C and a pressure of ≥ 0.22 MPa for at least 45 minutes to ensure complete pathogen destruction.
Sterilized waste is automatically transferred to a dual-shaft shredder for irreversible size reduction, turning it into harmless municipal solid waste for landfilling.
Yes, the system features a central PLC control unit that manages the entire cycle from loading to shredding automatically, though manual override is available for maintenance.
The system includes integrated exhaust gas treatment (using UV and carbon adsorption) and wastewater treatment to meet environmental emission standards.
For standard models, the delivery time typically ranges from 30 to 60 days depending on the specific configuration and customization requirements.
