Medical Pressure Steam Sterilization Equipments Pulse Vacuum Sterilizer Autoclave

Customization:	Available
Theory:	Autoclave
Type:	Pulse Vacuum Autoclave

Send Inquiry

Product Description

THR-WG Series Pulse Vacuum Autoclave Sterilizer

Models: 600L 800L 1200L 1500L 2000L 2500L

Basic Specifications

Model NO.

THR-WG Series

Certification

CE, ISO13485

Electric Tension

380V

LCD Display

With LCD Display

Alarm System

Ultra High Temperature Alarm

Material

Stainless Steel

Design Pressure

0.245MPa

Design Temperature

139℃

Vacuum

-0.09MPa

Water Pressure

0.15-0.3MPa

Steam Pressure

0.3-0.7MPa

Working Pressure

0.225MPa

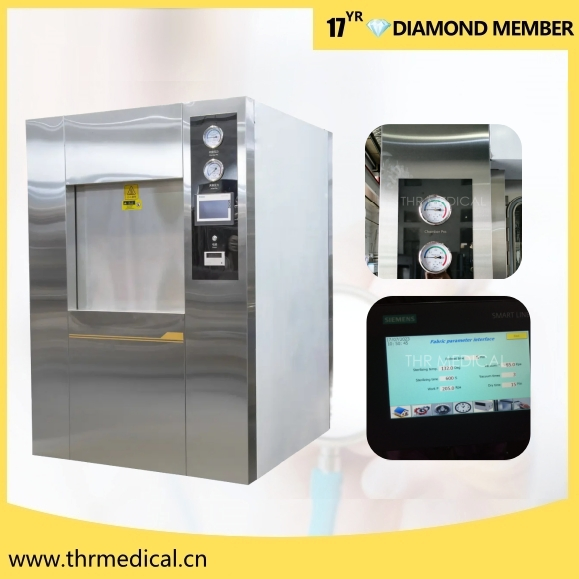

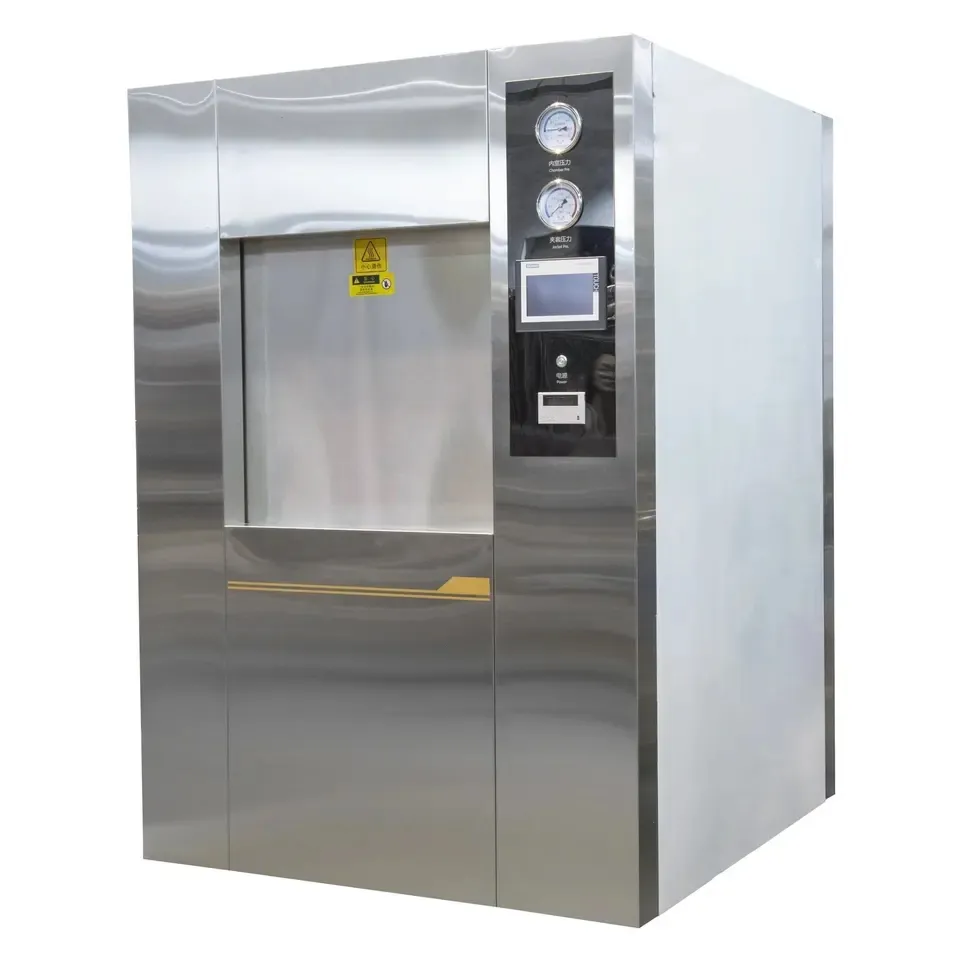

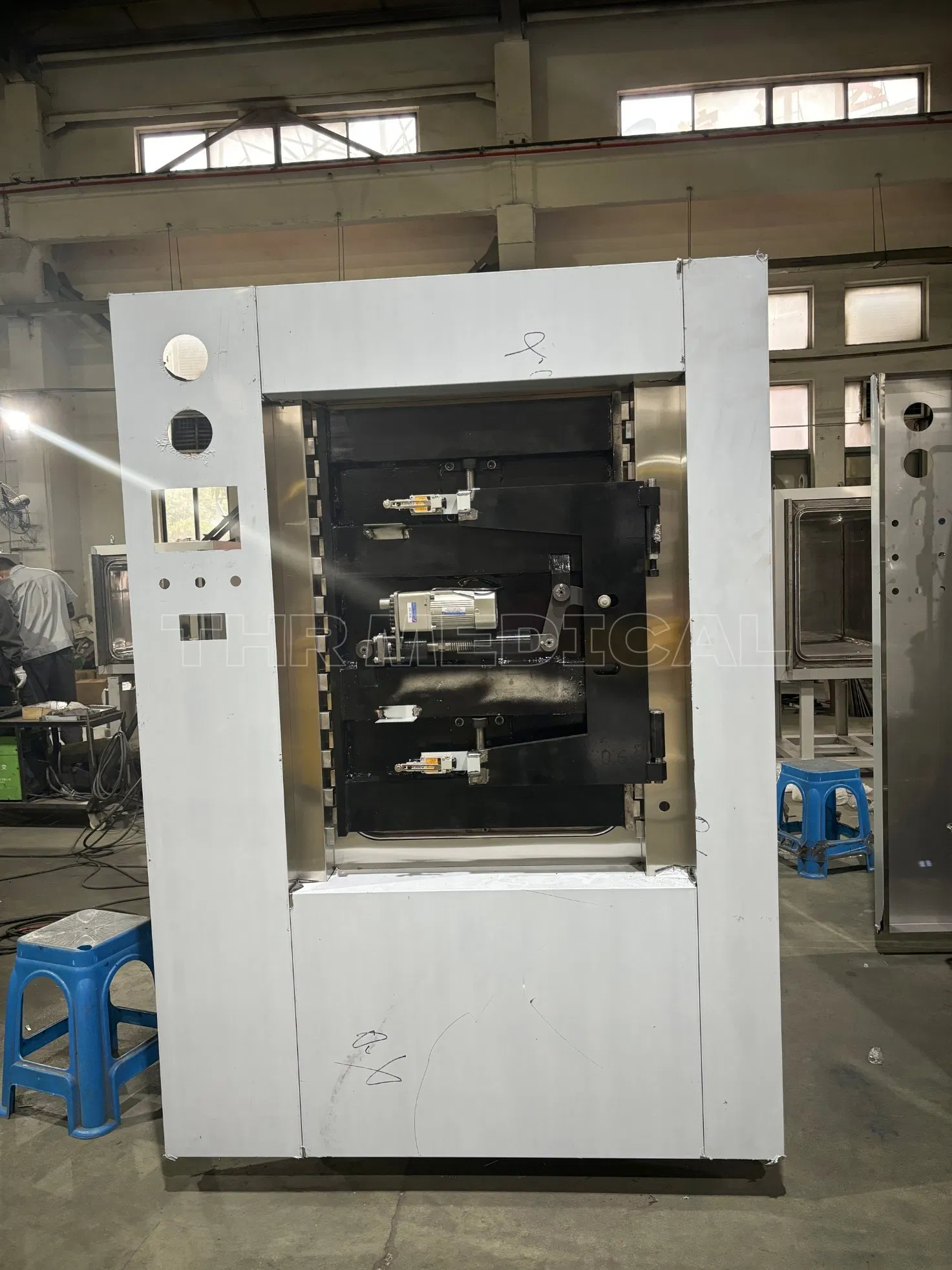

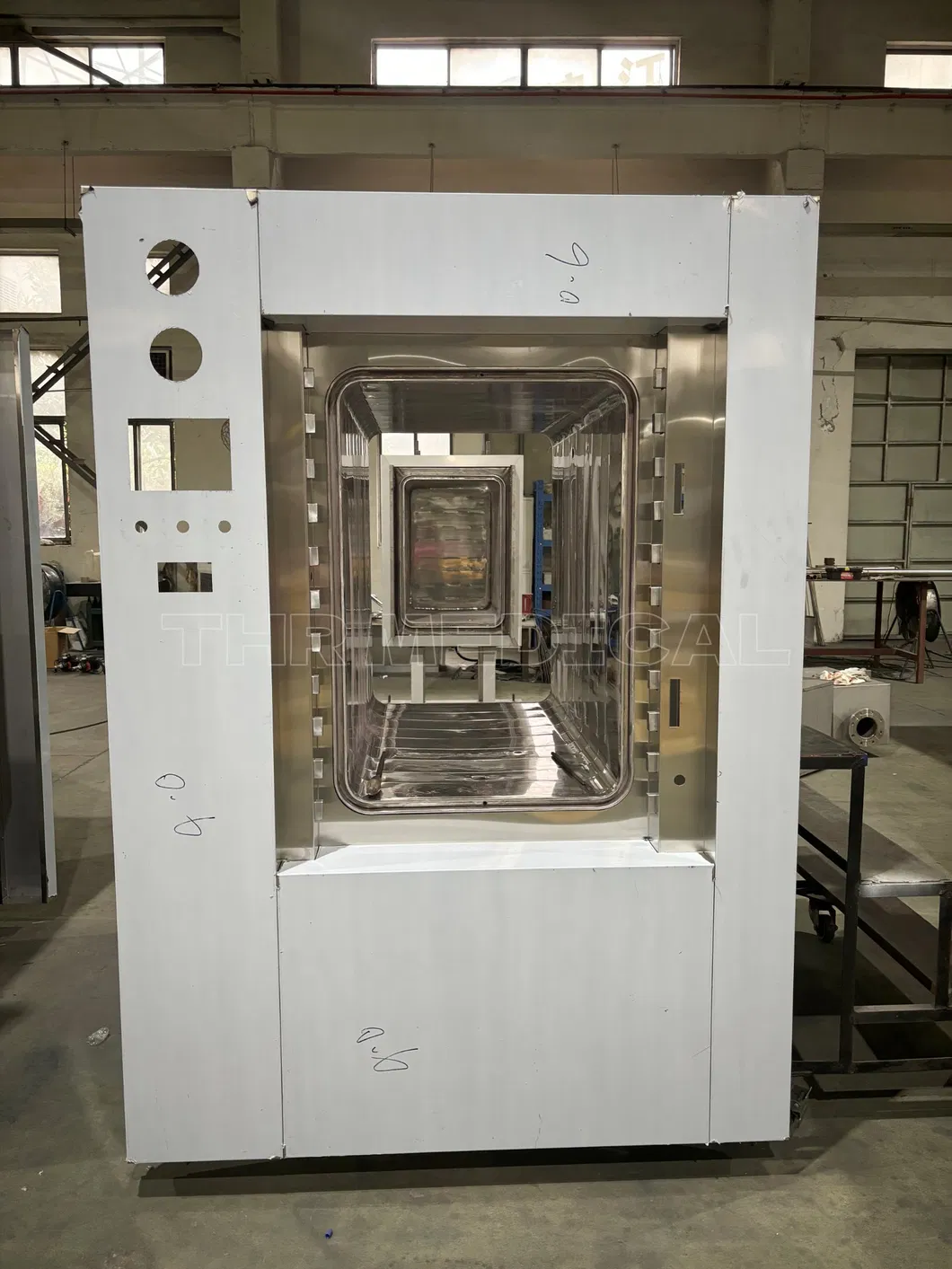

Pulse Vacuum Sterilizer Autoclave Side View

Product Overview

THR-WG series pulsating vacuum sterilizers use saturated steam as the sterilizing medium. Relying on the physical property that saturated steam releases a large amount of latent heat and moisture during condensation, it ensures items are sterilized in a highly heated and humid state. Cold air interference is eliminated through pulsating vacuum exhaust, and vacuum dehumidification is realized via a jacket device to ensure the dry state of sterilized items.

This series is primarily utilized in hospital disinfecting supply rooms, third-party sterilization centers, and operating rooms for medical devices, dressings, rubber, lumen devices, implantable devices, and liquids.

🛡️ Compliance: Designed in accordance with GB150, GB 8599, and TSG R0004 standards.

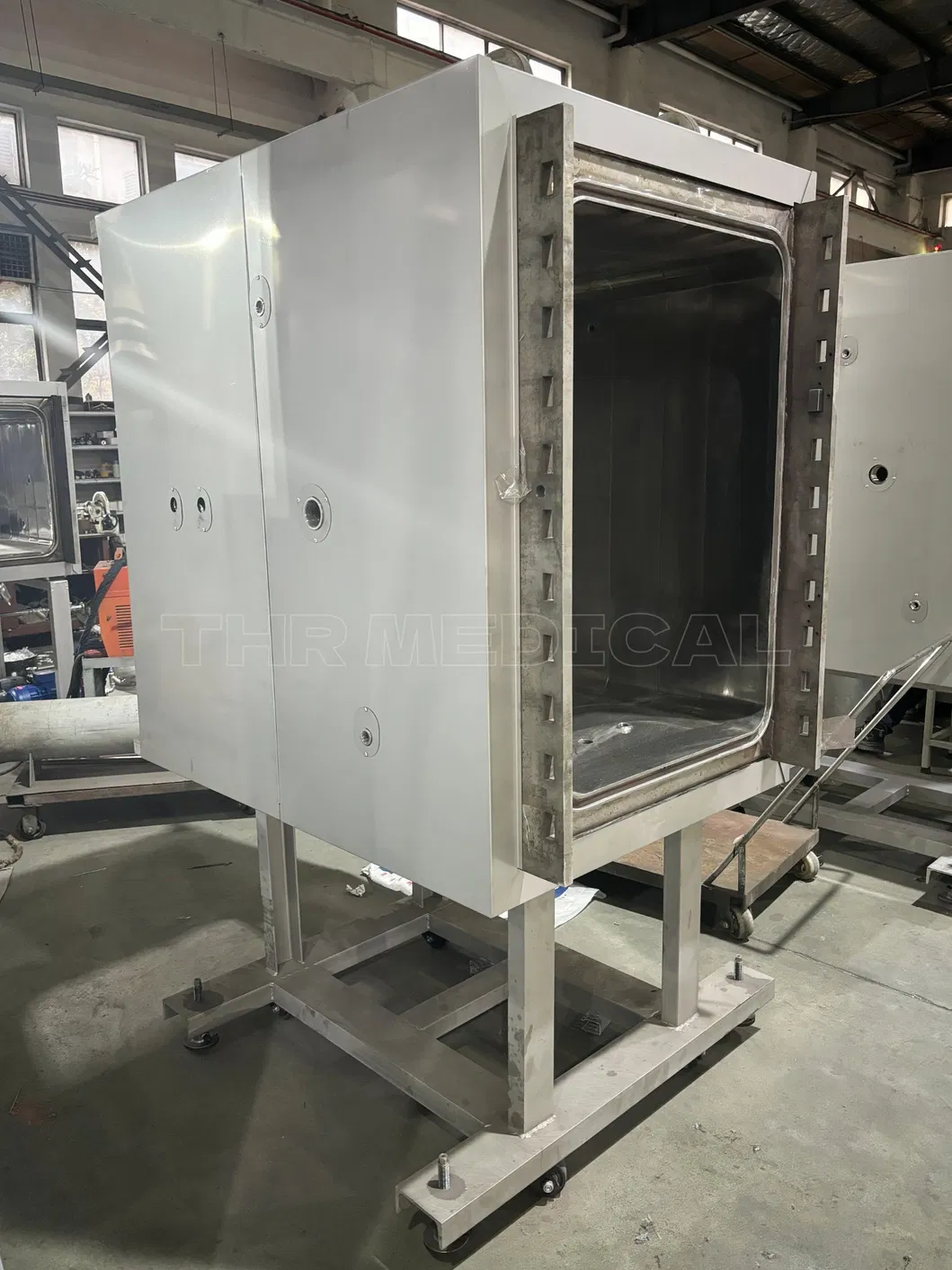

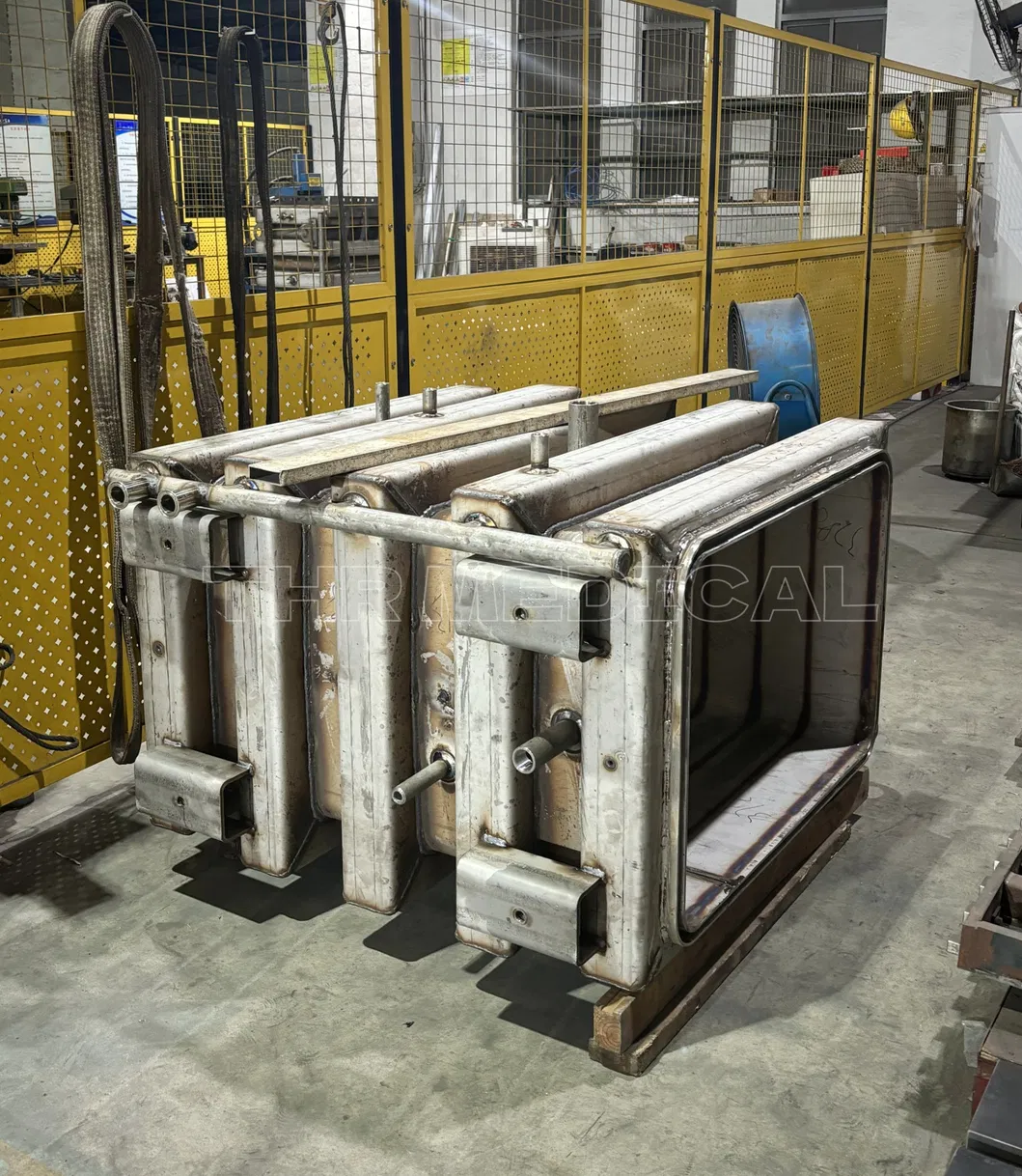

🏗️ Structure: Horizontal rectangular double-deck tank made from S30408 stainless steel.
🔒 Door Sealing: Pneumatic sealing with interlocked doors for maximum safety.

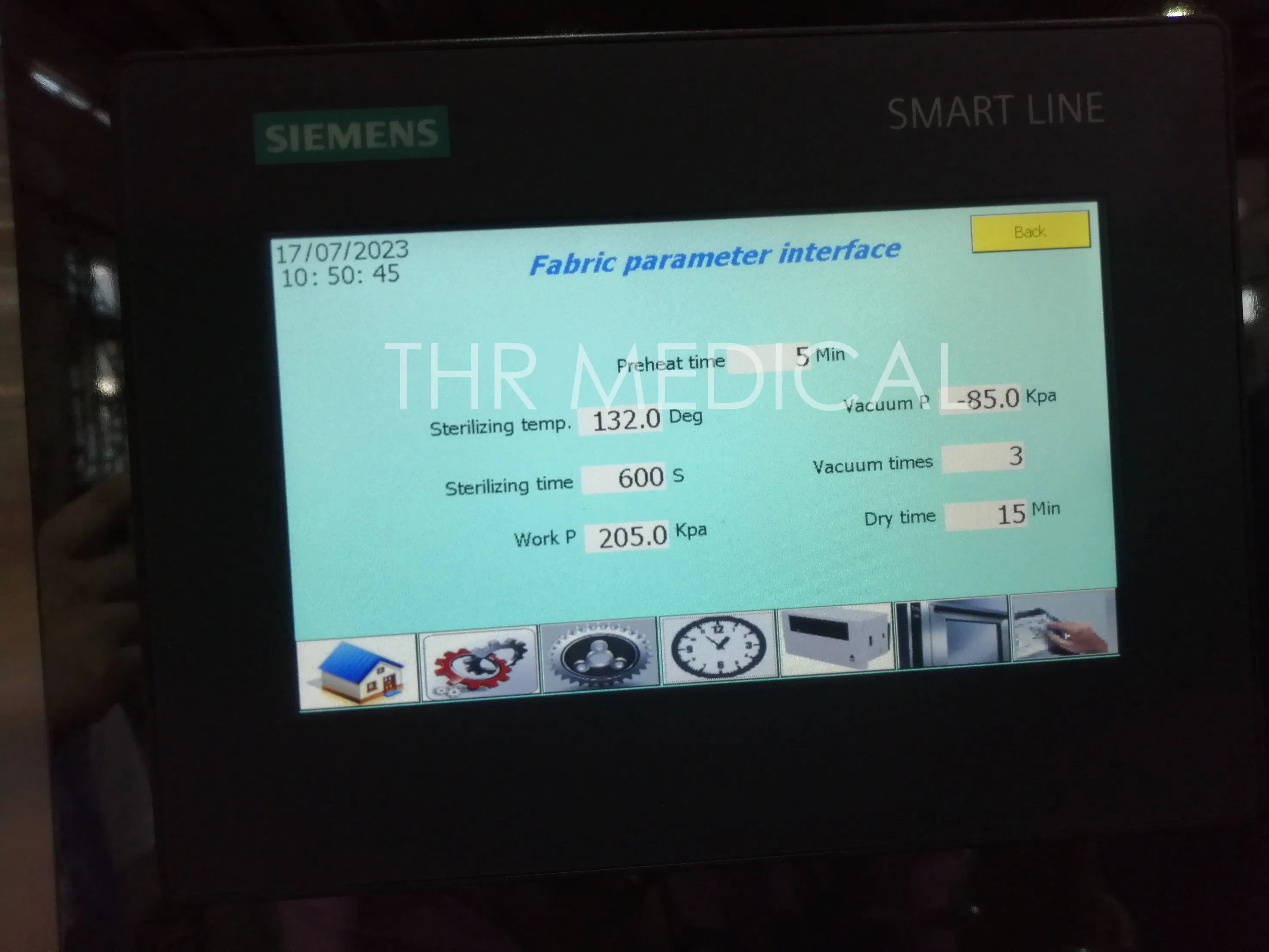

⚙️ Control: Siemens PLC and touch screen for precise operation and report processing.

Technical Data & Utilities

Parameter	Value	Parameter	Value
Design Pressure	0.245MPa	Working Pressure	0.225 MPa
Design Temperature	139ºC	Working Temperature	105-134ºC
Vacuum	-0.09 MPa	Temp. Equilibrium	≤±1ºC
Water Pressure	0.15-0.3 MPa	Compressed Air	0.3-0.7 MPa
Steam Pressure	0.3-0.7 MPa	Power Supply	AC380V/50HZ (3-phase 5-wire)

Model Dimensions

Model	Overall Size (LxWxH mm)	Chamber Size (LxWxH mm)	Net Weight
THR-WG0.1	950×1200×1750	560×400×450	700KG
THR-WG0.36	1300×1350×1900	1000×600×600	1000KG
THR-WG0.6	1500×1360×1950	1200×610×910	1400KG
THR-WG1.2	1750×1440×1950	1450×680×1180	1800KG
THR-WG2.0	1950×1750×2200	1600×900×1400	2500KG
THR-WG3.0	2700×1750×2200	2400×900×1400	3500KG

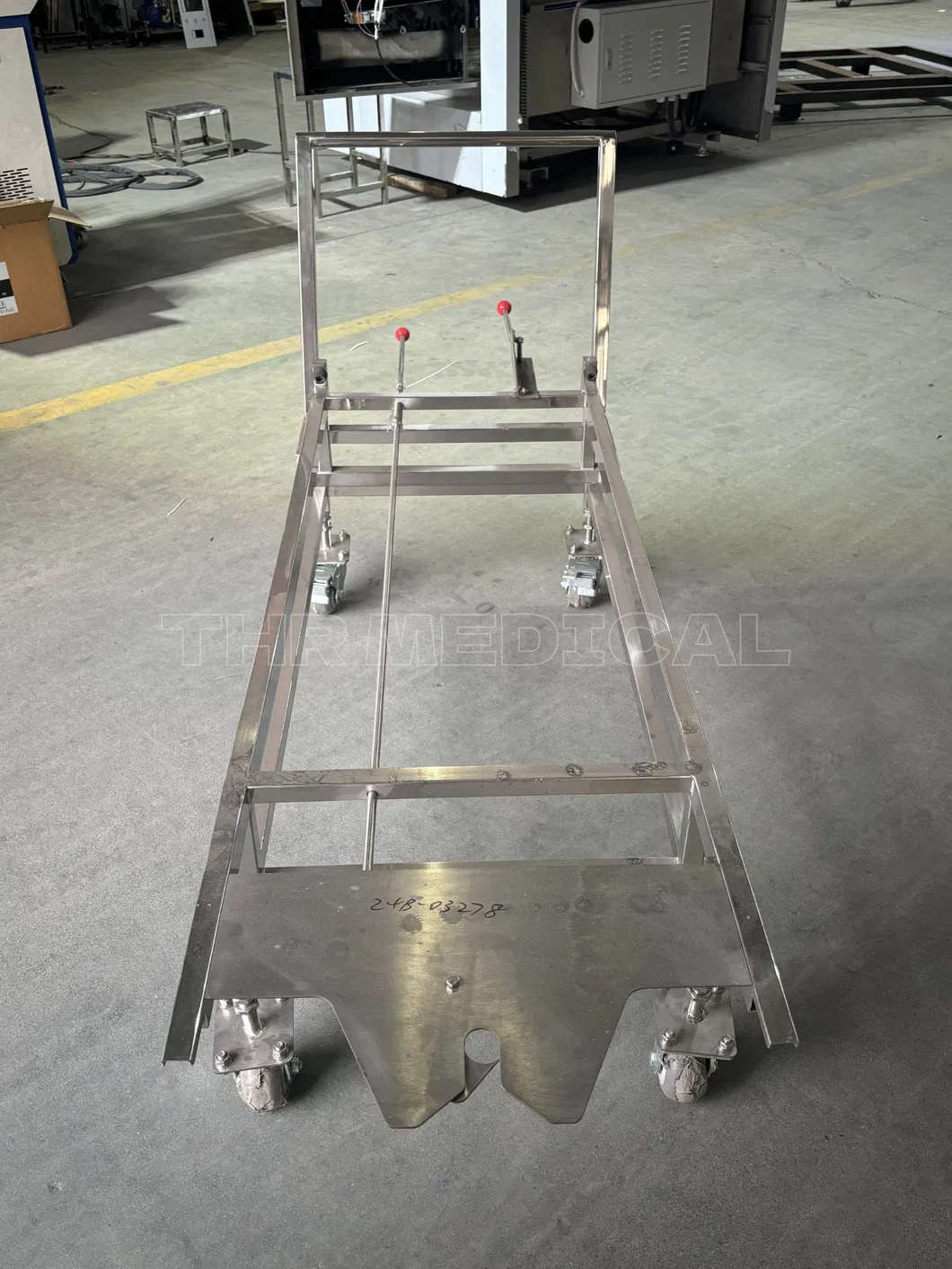

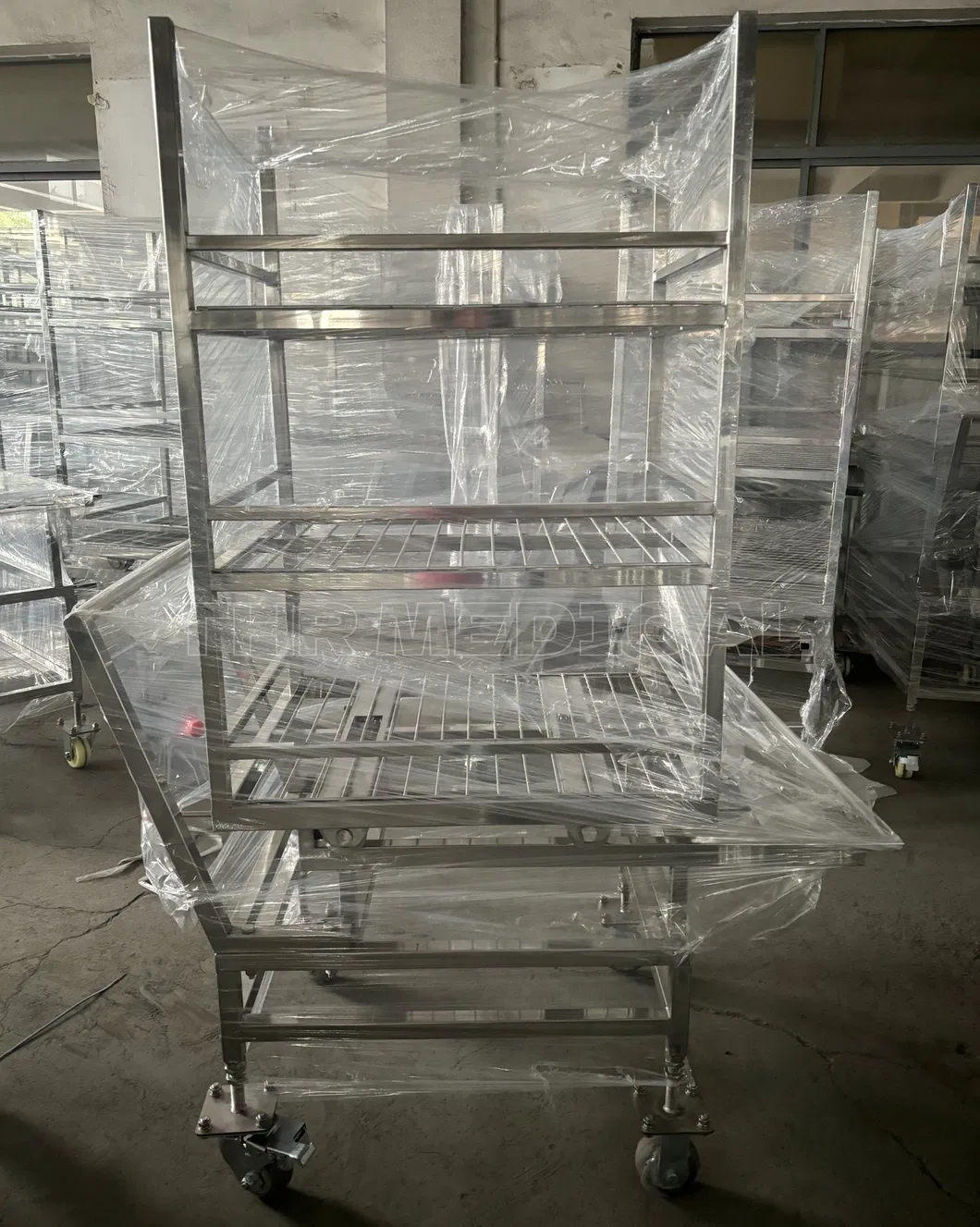

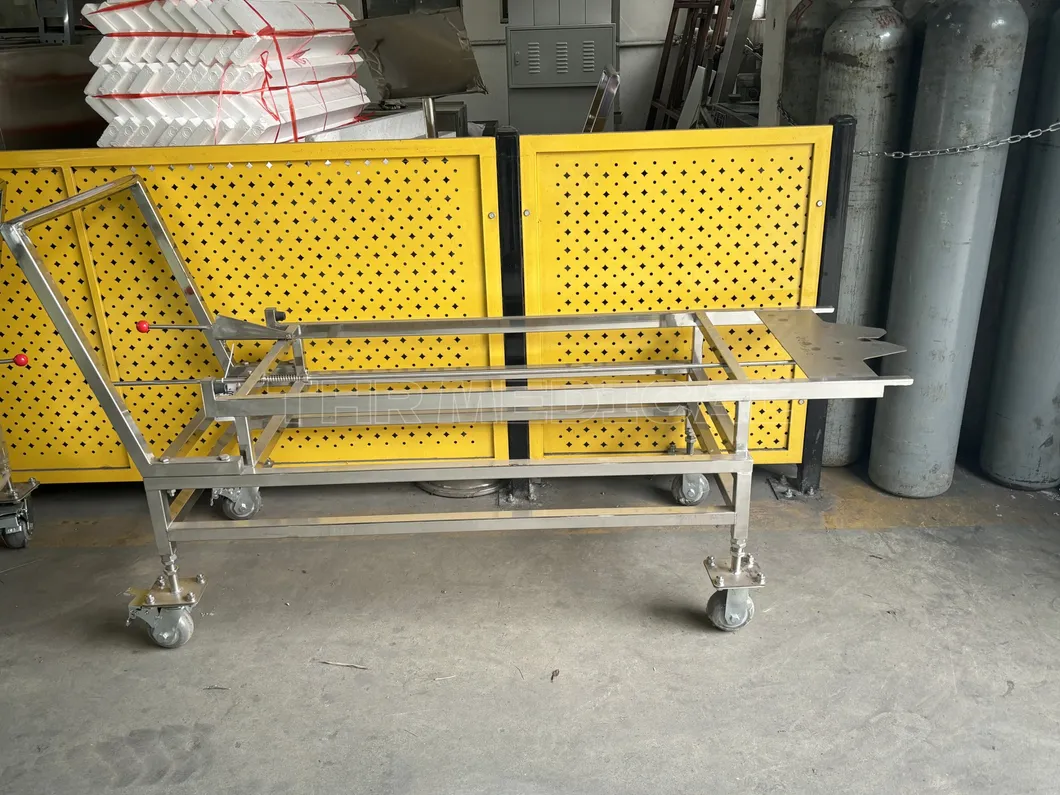

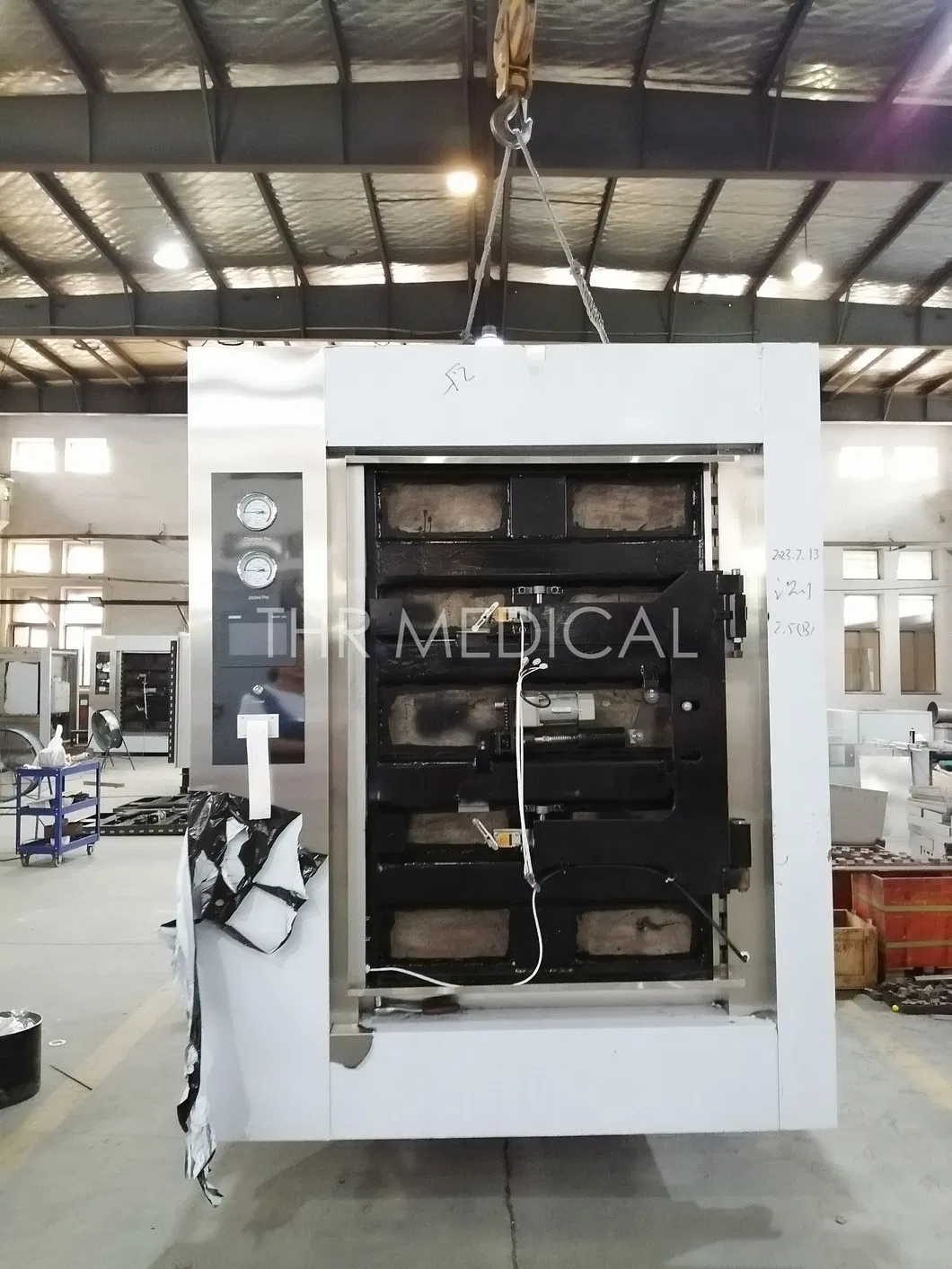

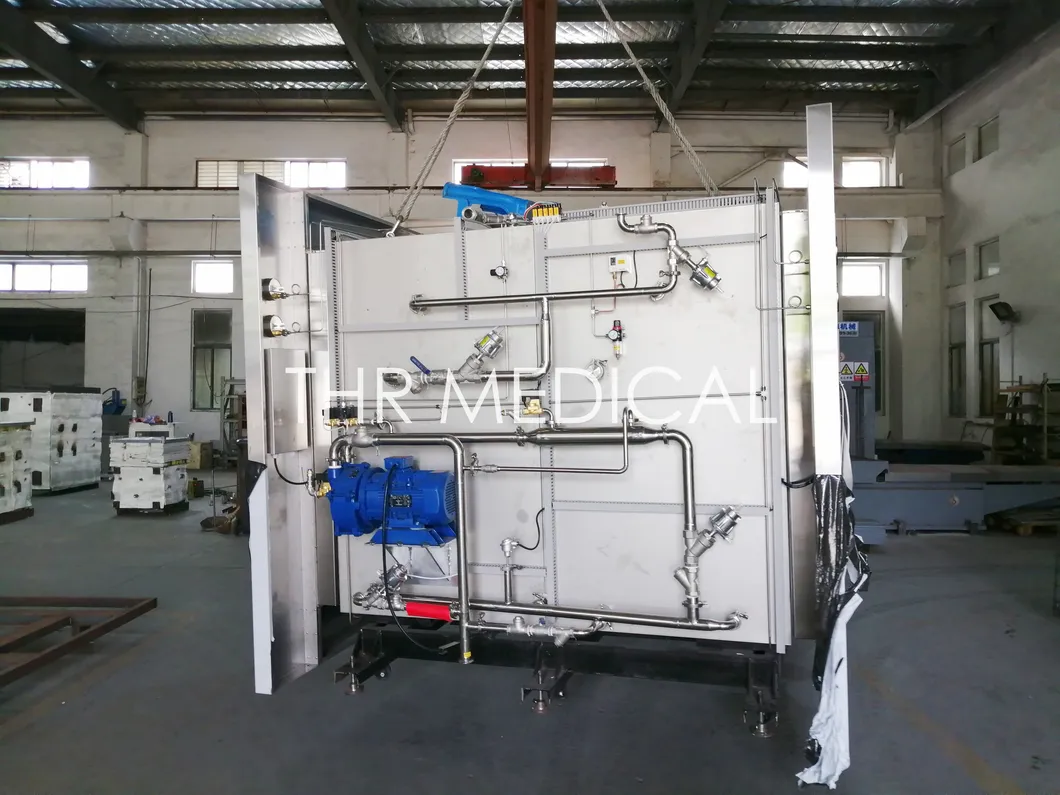

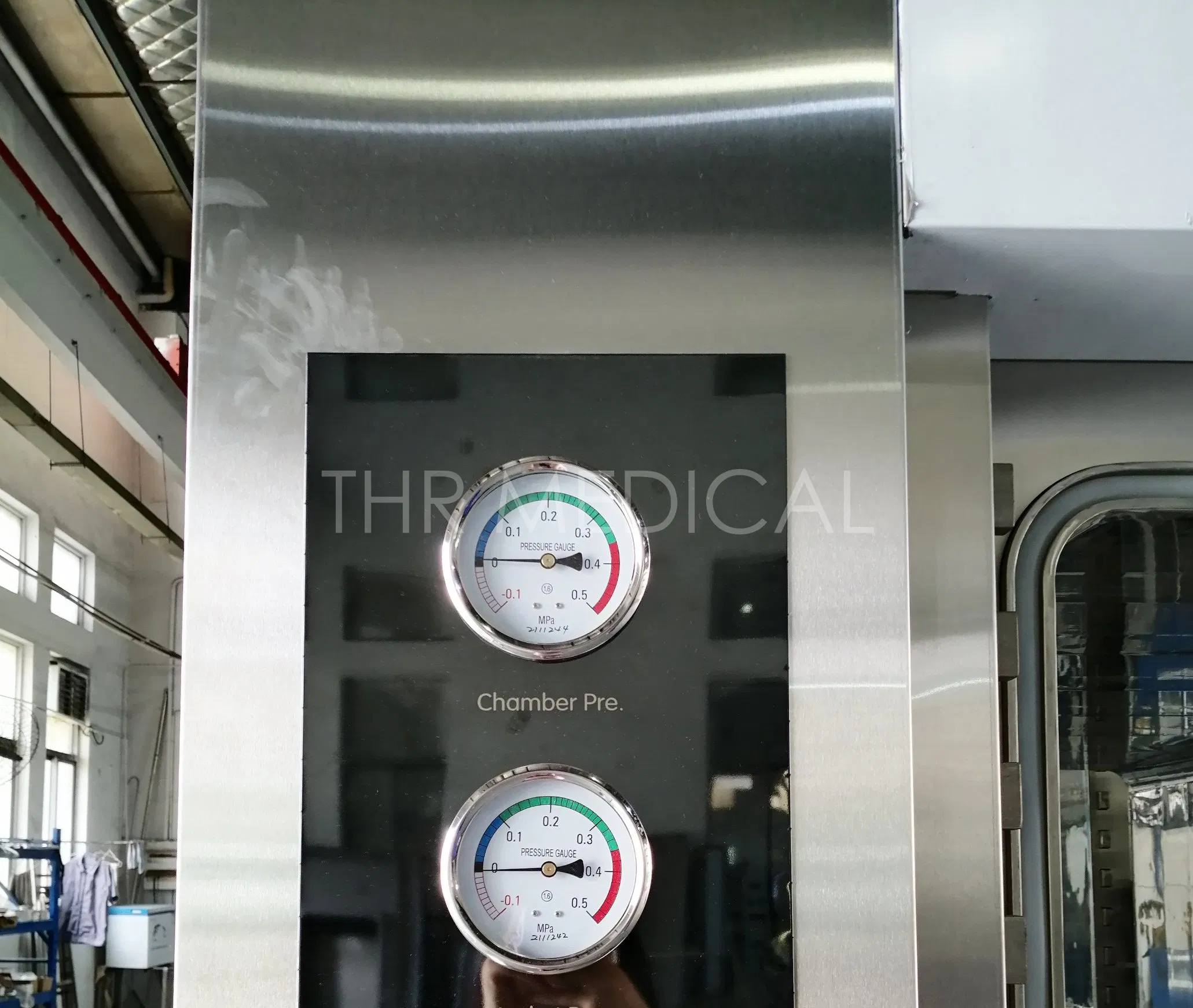

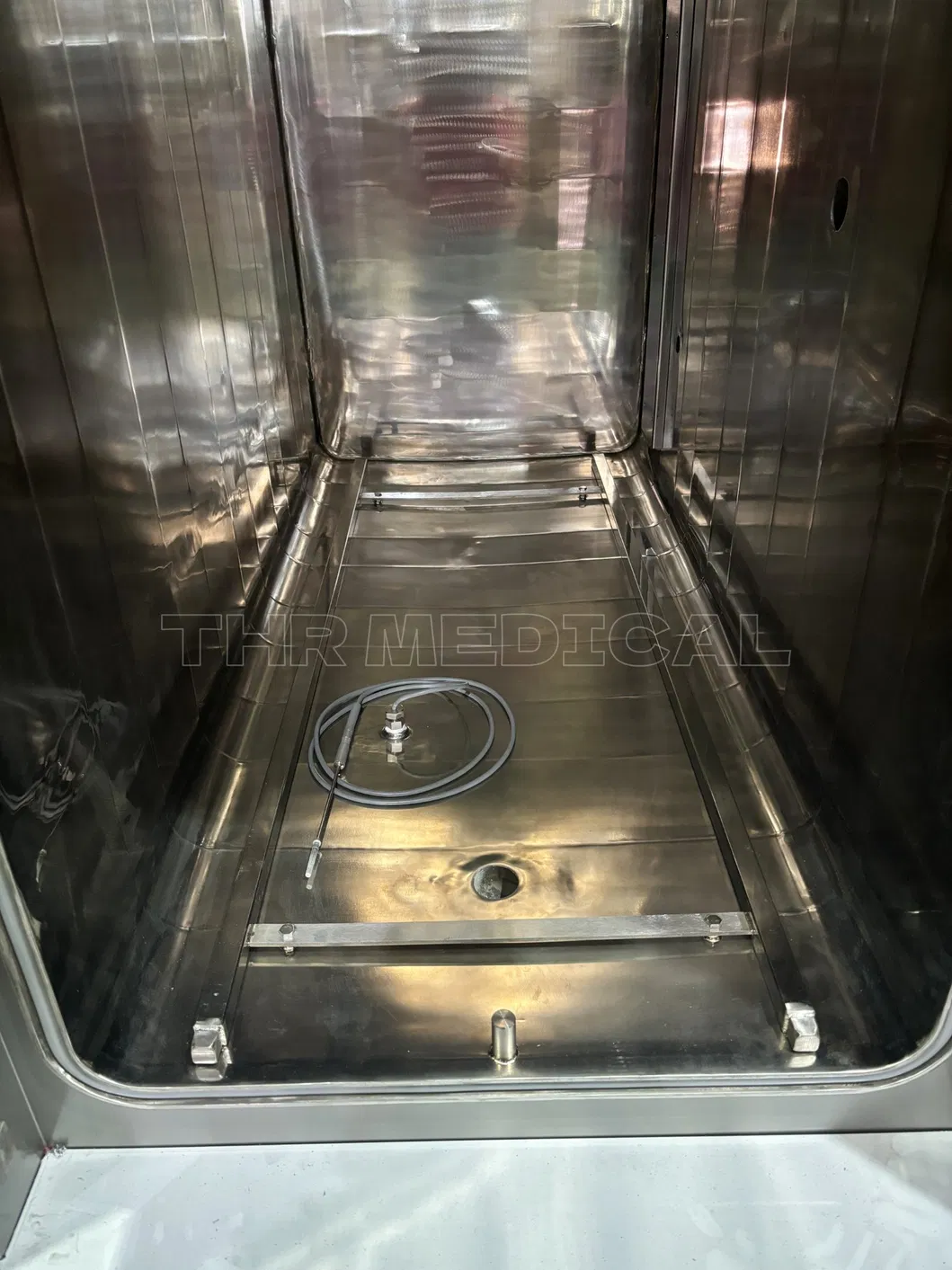

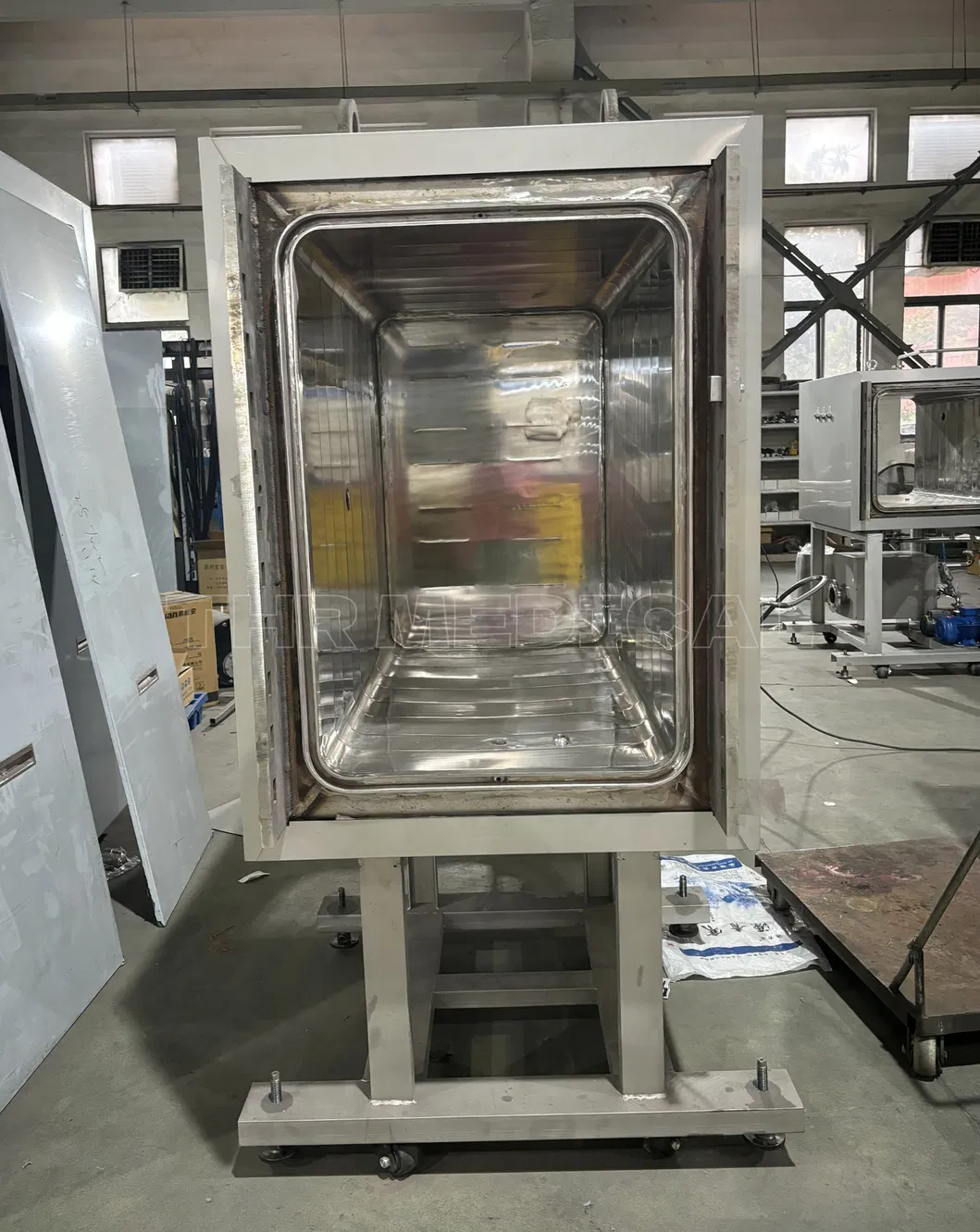

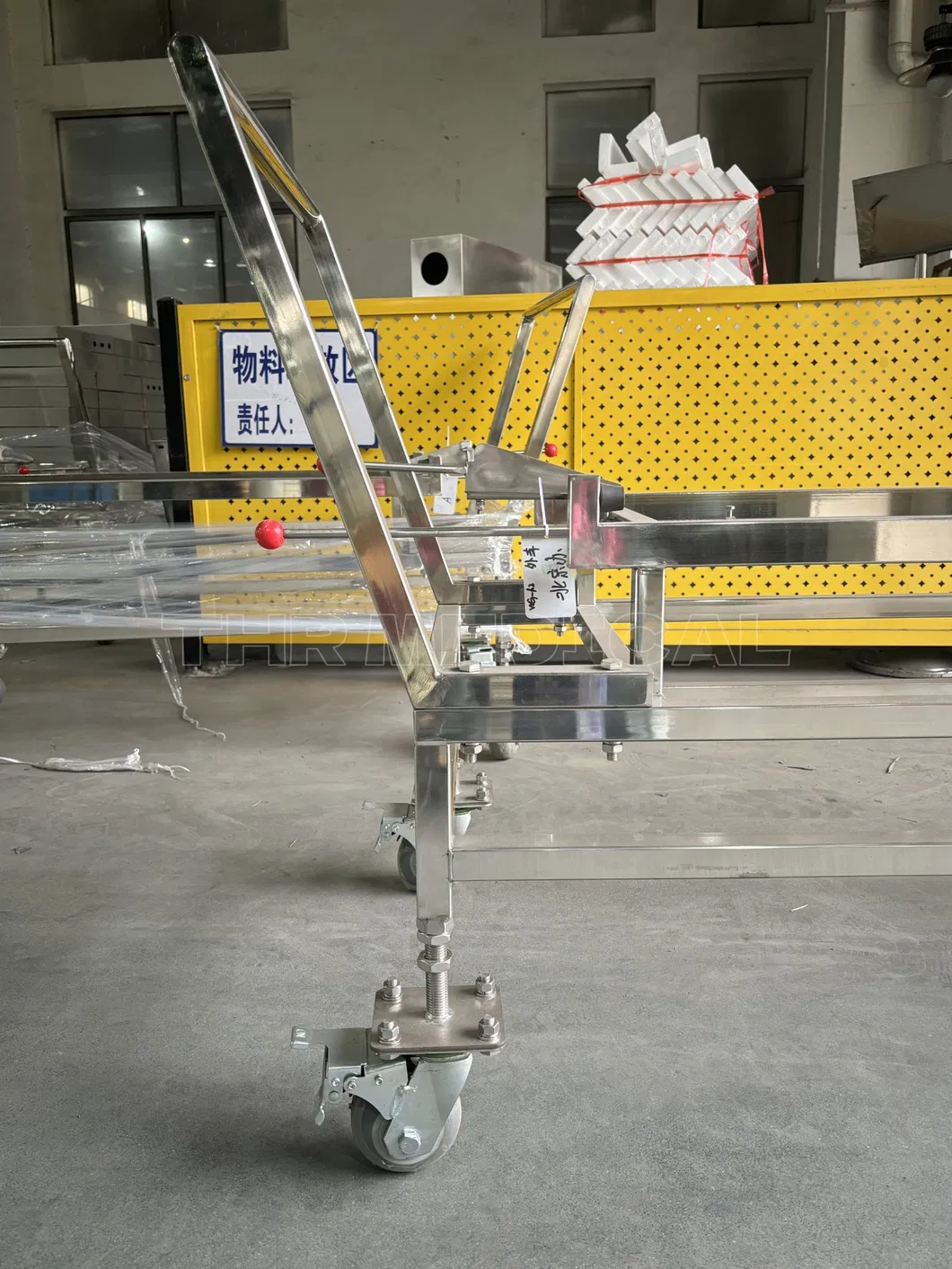

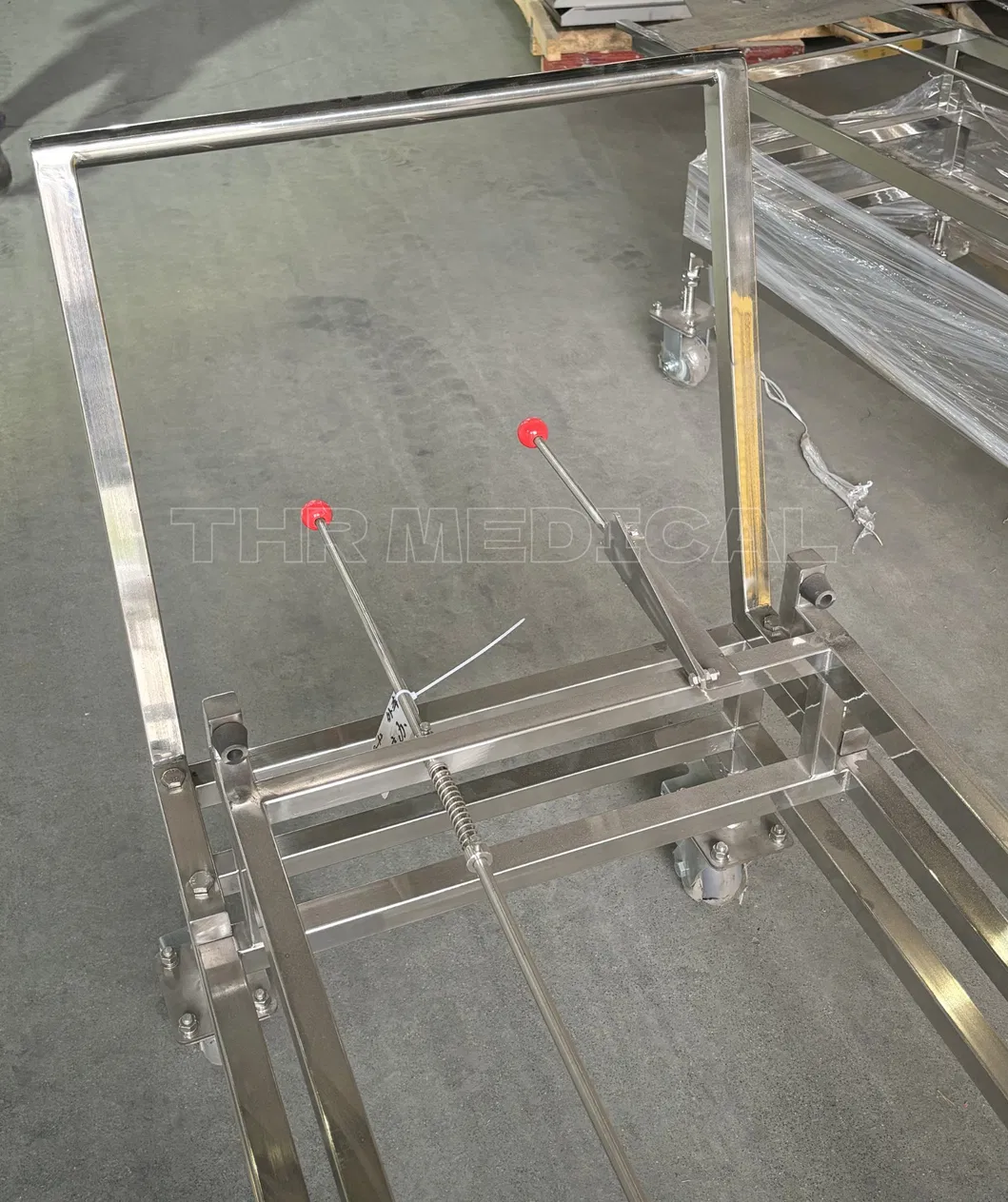

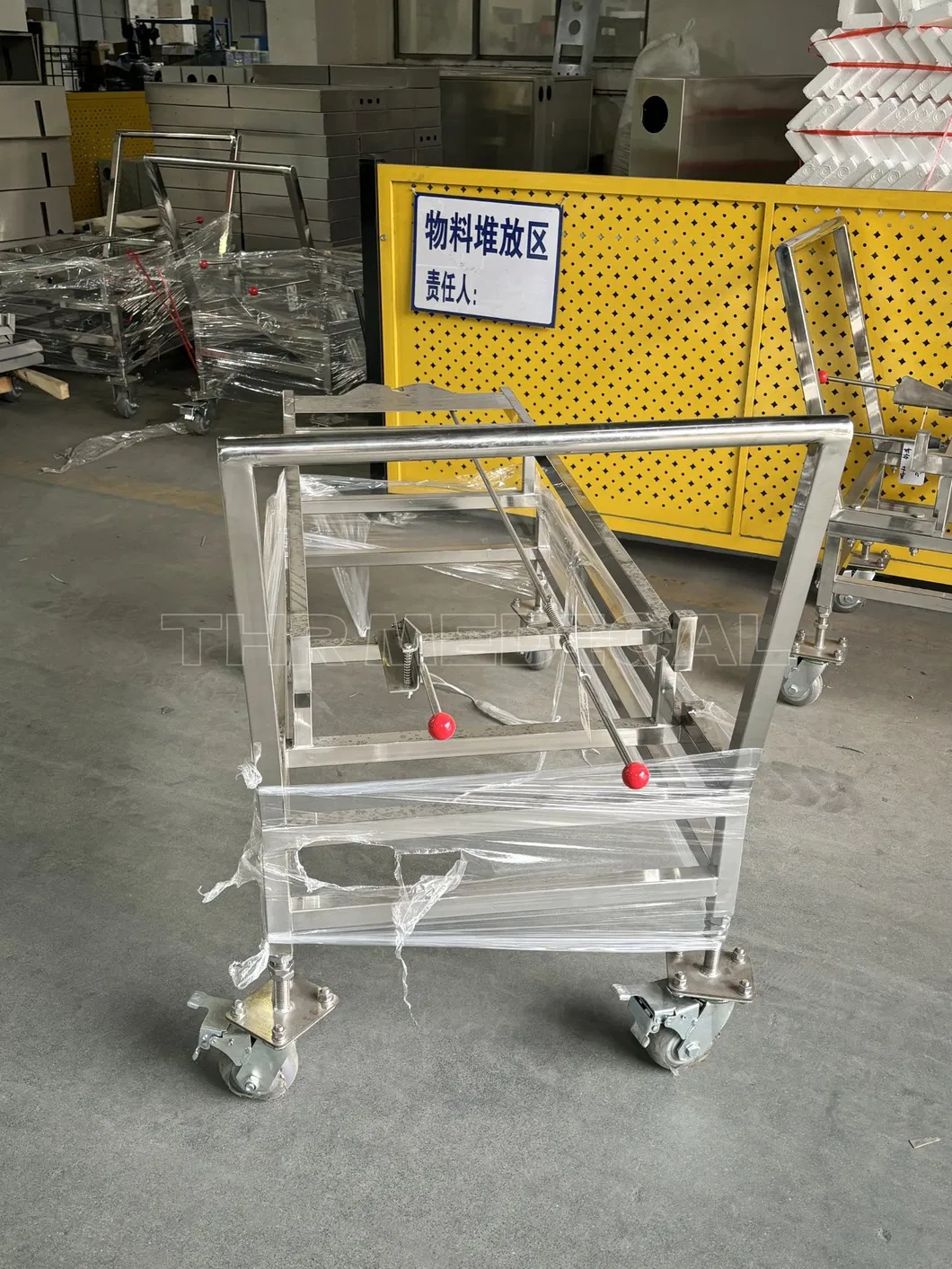

Detail Gallery

Frequently Asked Questions

What is the primary sterilizing medium used in the THR-WG series?

The sterilizer uses saturated steam as the medium, which releases significant latent heat and moisture during condensation to achieve high-efficiency sterilization.

What materials are used for the tank construction?

The horizontal rectangular double-deck tank is manufactured from high-quality S30408 stainless steel.

What kind of control system does the sterilizer feature?

It adopts a Siemens PLC plus a Siemens touch screen system for program selection, parameter setting, and equipment operation.

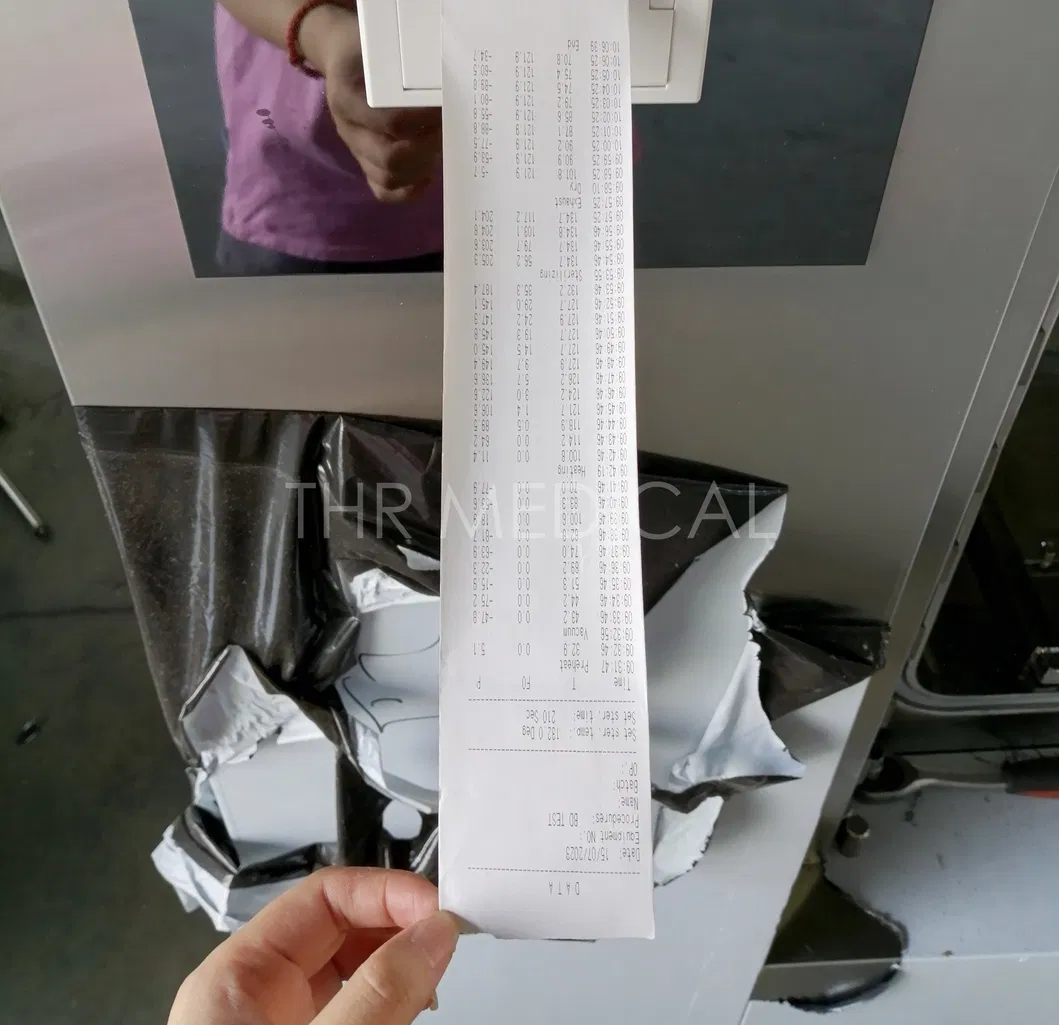

Is the sterilization process documented?

Yes, the system includes sterilization information recording and printing capabilities to maintain perfect sterilization records.

What safety features are included for the doors?

The doors feature pneumatic sealing and are fully interlocked to conform to strict safety and technical specifications.

Which standards does this equipment comply with?

It is manufactured in accordance with GB150 "the Pressure Vessel", GB 8599 technical requirements for large steam sterilizers, and TSG R0004 safety specifications.
