Basic Specifications
Model NO.
RX-Series (0.1 - 8)
Application
Granules, Powder
Application Area
Chemical, Food
Capacity
50-100L (Standard)
Speed Control
Variable Speed
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Type
Non-Fumigated Wooden Box
Product Description

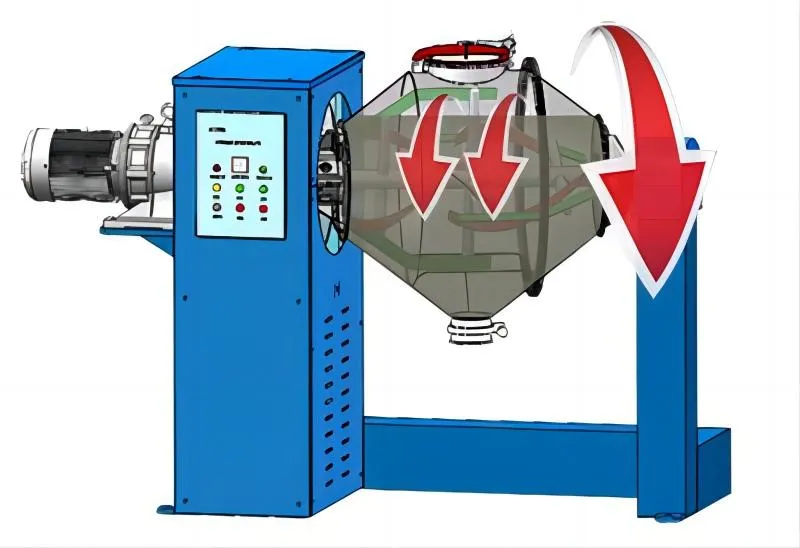

The Double Cone Mixer features a unique double cone structure where materials tumble back and forth inside the drum. It rotates clockwise for several minutes and can then reverse, accelerating material diffusion, flow, and shearing. This process prevents material segregation and ensures thorough mixing without dead spots, effectively achieving uniform blending for materials of various sizes and types.
It contributes to achieving uniform material blending, reducing mixing time, lowering energy consumption, ensuring product quality, and enhancing production efficiency. It is an ideal equipment choice for solid powder grinding and mixing.
Core Product Features
1
Versatility: Suitable for mixing various materials including powders, granules, and pastes.
2
Gentle Mixing: Ensure uniform blending without damaging delicate ingredients.
3
Efficient Mixing: Achieves thorough mixing in a relatively short time.
4
Easy-Cleaning: Designed for quick and thorough cleaning between batches.
5
Durable Construction: Built with robust materials for long-term reliability.
6
Wide Application: Used across pharmaceuticals, food, and chemical industries.
Technical Parameters
| Model |
Capacity (m³) |
Filling Coeff. |
Power (kW) |
Dimensions (LxWxH) mm |
Weight (Kg) |
| RX-0.1 | 0.1 | 0.5 | 1.1 | 1580x650x1350 | 550 |
| RX-0.2 | 0.2 | 0.5 | 1.5 | 1800x750x1650 | 680 |
| RX-0.3 | 0.3 | 0.5 | 2.2 | 2050x850x1850 | 800 |
| RX-0.5 | 0.5 | 0.5 | 3 | 2400x1050x2100 | 1200 |
| RX-1 | 1 | 0.5 | 4 | 2800x1500x2500 | 1800 |
| RX-2 | 2 | 0.5 | 5.5 | 3400x1600x2700 | 2100 |
| RX-4 | 4 | 0.5 | 7.5 | 3600x1800x3100 | 2600 |
| RX-8 | 8 | 0.5 | 15 | 4300x2200x3700 | 4000 |

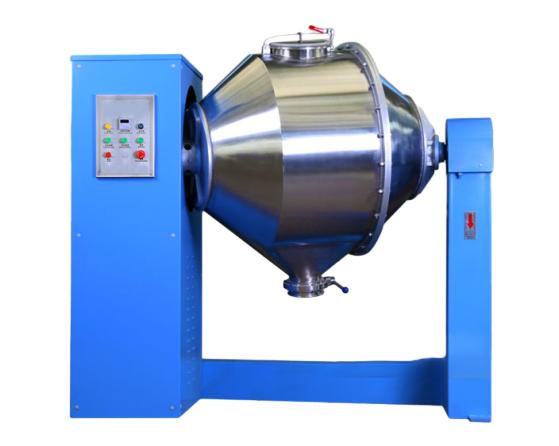

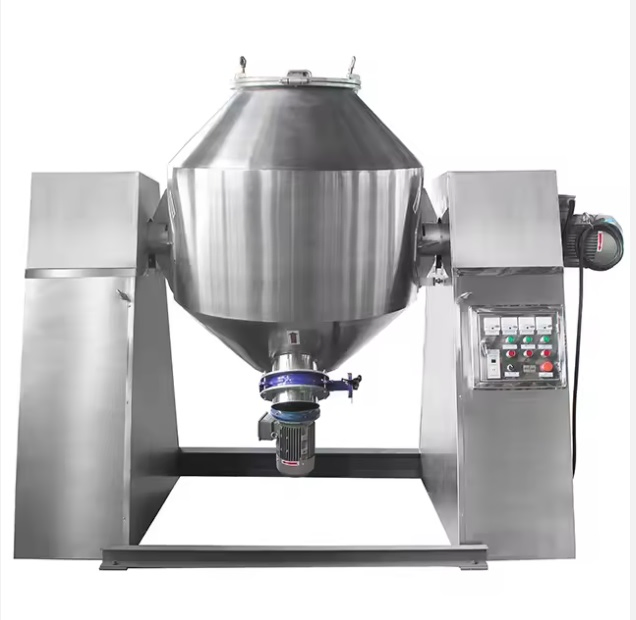

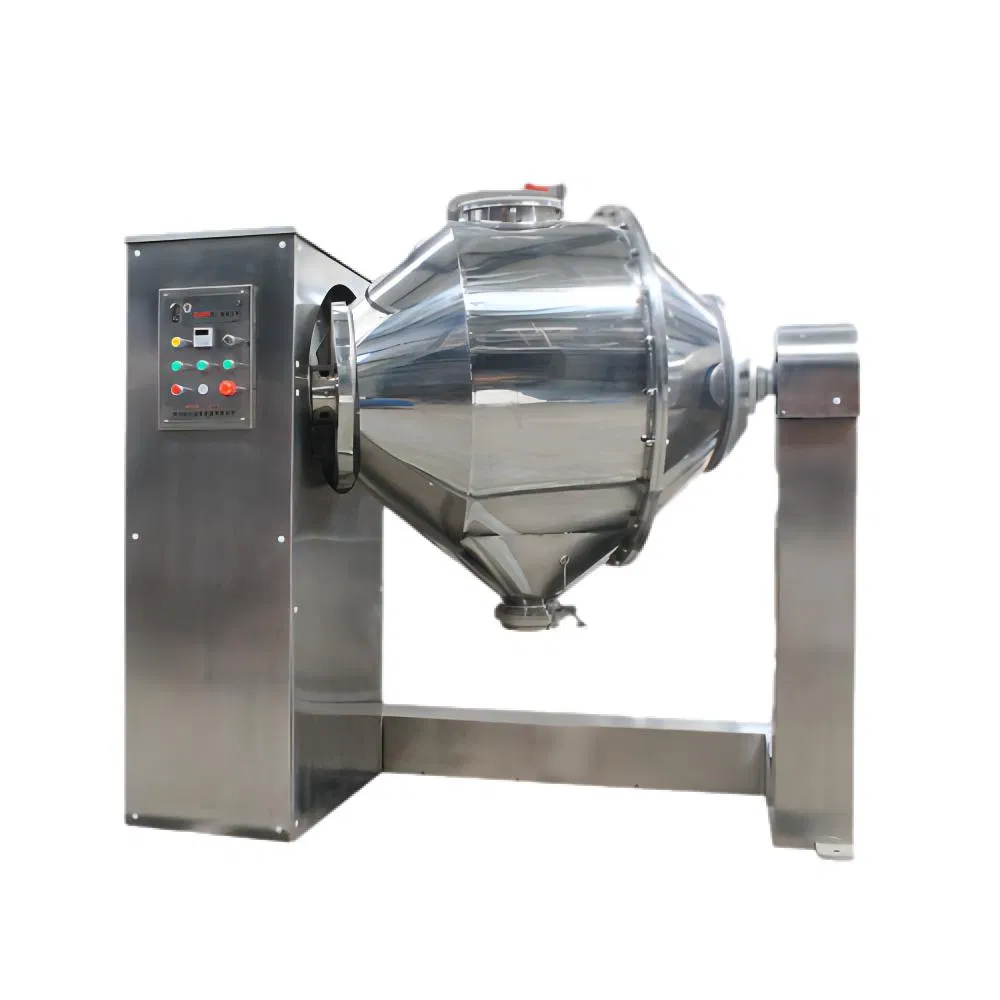

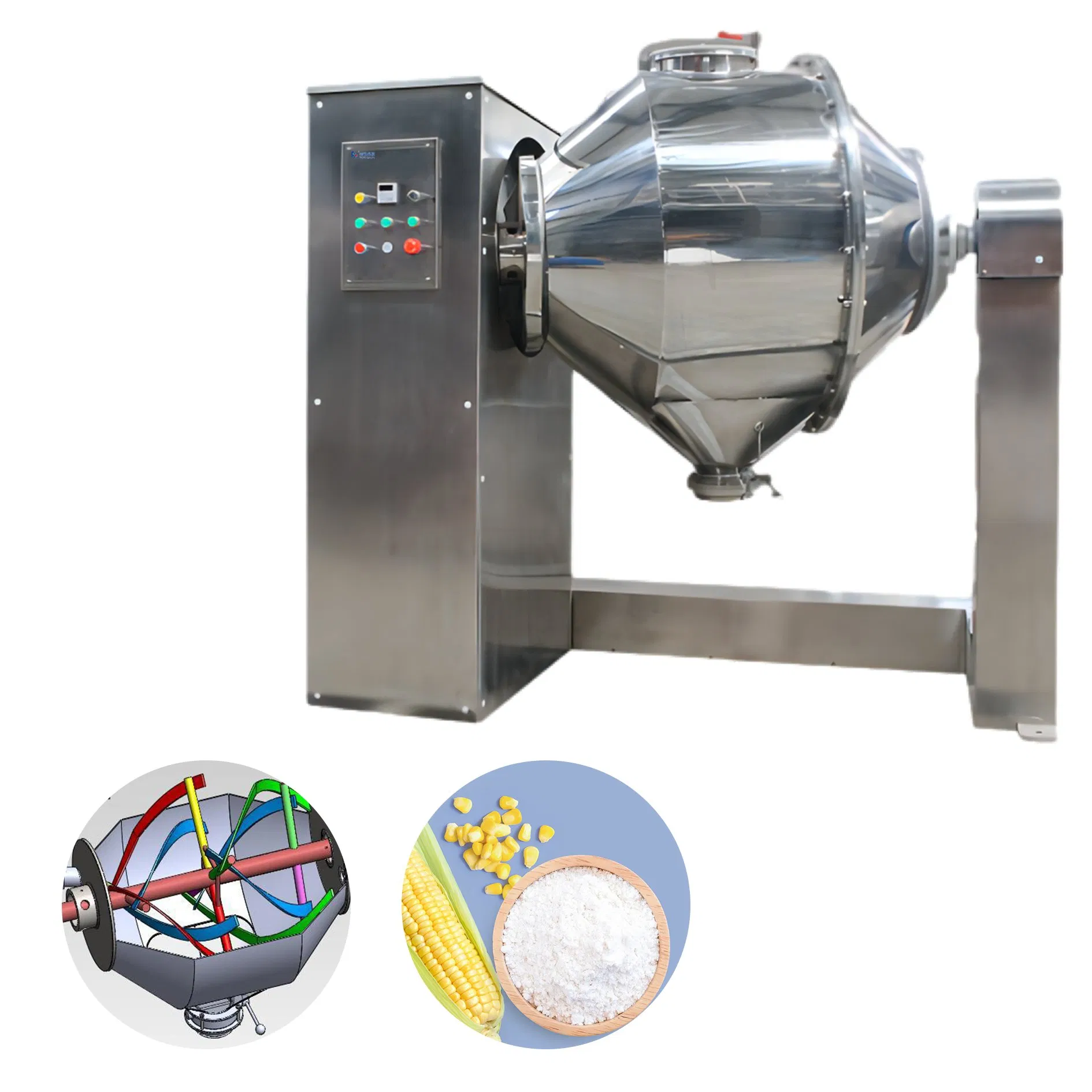

Product Display
Industrial Applications
The Double Cone Mixer is widely utilized across multiple sectors including:
powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry.
Certifications
Frequently Asked Questions
What materials are suitable for the Double Cone Mixer?
The mixer is ideal for dry powders, granules, and certain pastes used in pharmaceutical, food, chemical, and metallurgy industries.
How does the double cone structure improve mixing?

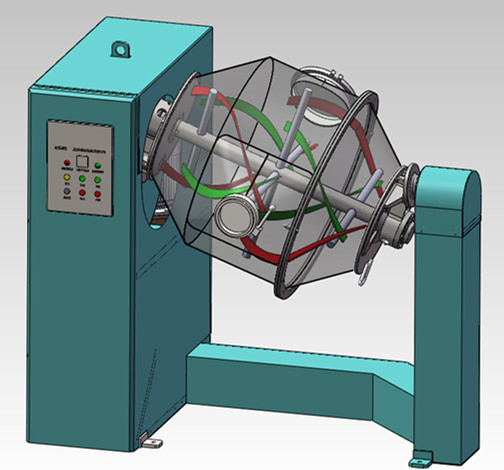

The double cone shape causes materials to tumble and shear as the drum rotates. This ensures continuous diffusion and flow, preventing dead spots and segregation.
Is the mixing speed adjustable?
Yes, the equipment features variable speed control, allowing users to optimize the rotation frequency (typically between 40-49 R/min) based on material sensitivity.
Is the equipment easy to clean for different batches?
Absolutely. The internal structure is designed for quick and thorough cleaning, which is essential for industries like food processing and pharmaceuticals to avoid cross-contamination.
What safety features are included?
Standard safety features include an Emergency Stop Button, Overload Protection, Safety Locks, and Anti-Slip Feet for stable operation.
What is the standard warranty period for this mixer?
The equipment comes with a 1-year warranty covering manufacturing defects and operational reliability.
