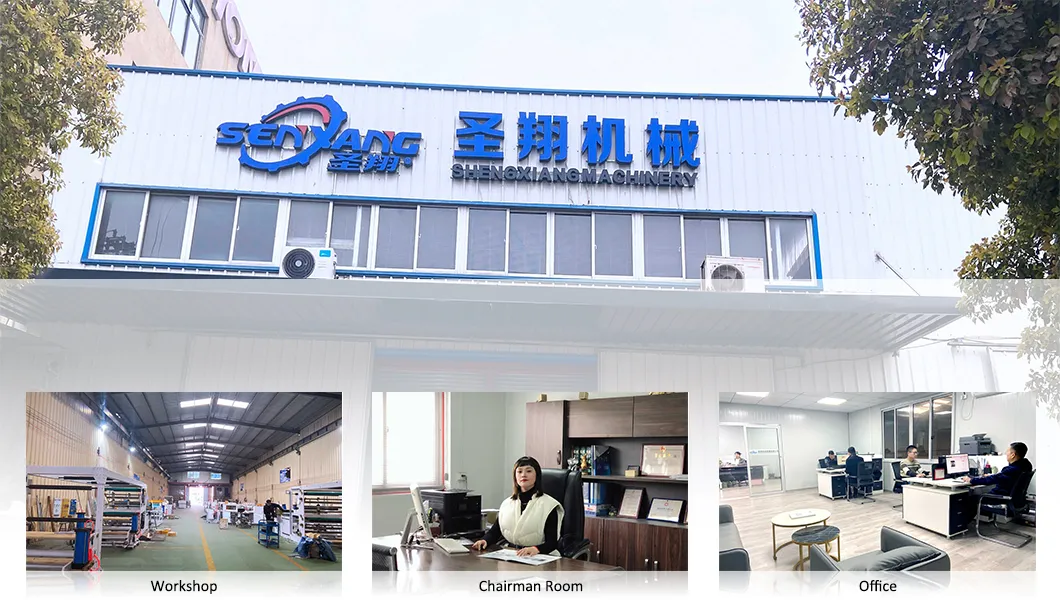

Established in 2010, we are a private economic entity integrating development, design, production, sales, and service. We specialize in the manufacture of high-quality packaging equipment such as cross-cutting machines, A4 paper cutting machines, slitting machines, roll paper cutting machines, rewinding machines, and printing machines.

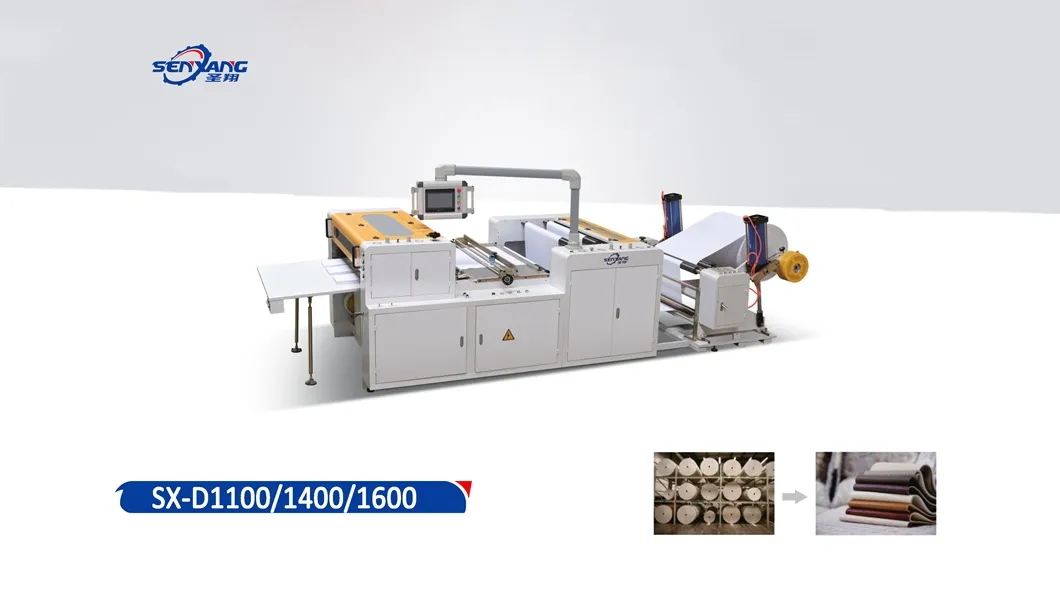

| Model | SX-D1100 | SX-D1400 |
|---|---|---|
| Cutting Width | 1100 mm | 1400 mm |
| Min Vertical Cutting Width | 50 mm | 50 mm |
| Max Diameter of Material | φ1400 mm | φ1400 mm |
| Length of Cutting | 20-1500 mm | 20-1500 mm |
| Cutting Speed | 20-200 times/min | 20-200 times/min |
| Cutting Precision | ±0.2 mm | ±0.2 mm |
| Total Power | 7 kw | 8.5 kw |
| Weight | 3600 kg | 4000 kg |
| Overall Size (L x W x H) | 5400*2000*1400 mm | 5400*2300*1400 mm |

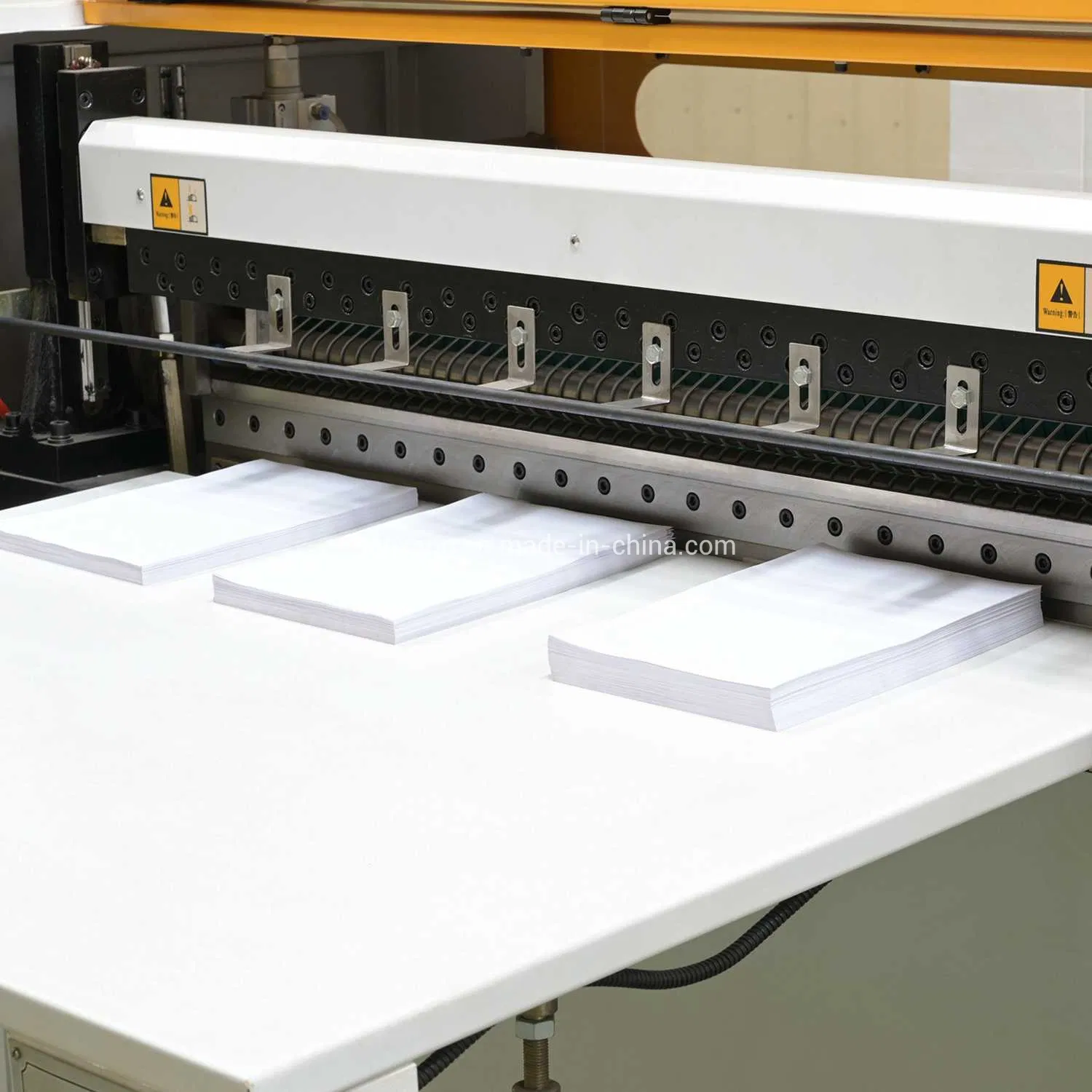

This machine is suitable for cutting all kinds of thin paper (28-100g), PVC, PET film, paper-plastic composite, cloth, leather, and other large drum packaging materials.

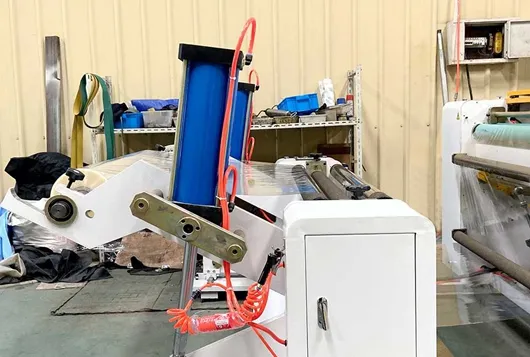

1. Pneumatic feeding system for large roller materials.
2. Automatic photocell EPC system.

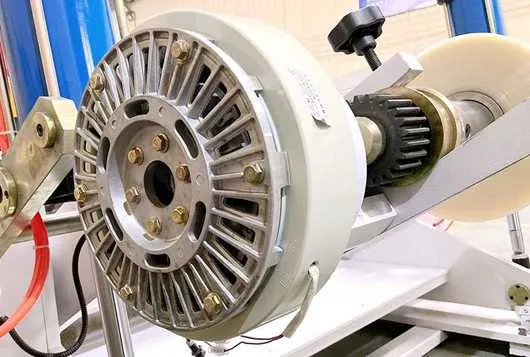

1. 10KG/20kg controller ensures flat paper feeding.
2. Keeps double-sided materials under consistent tension.

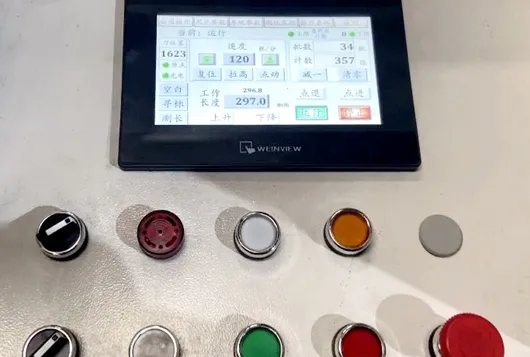

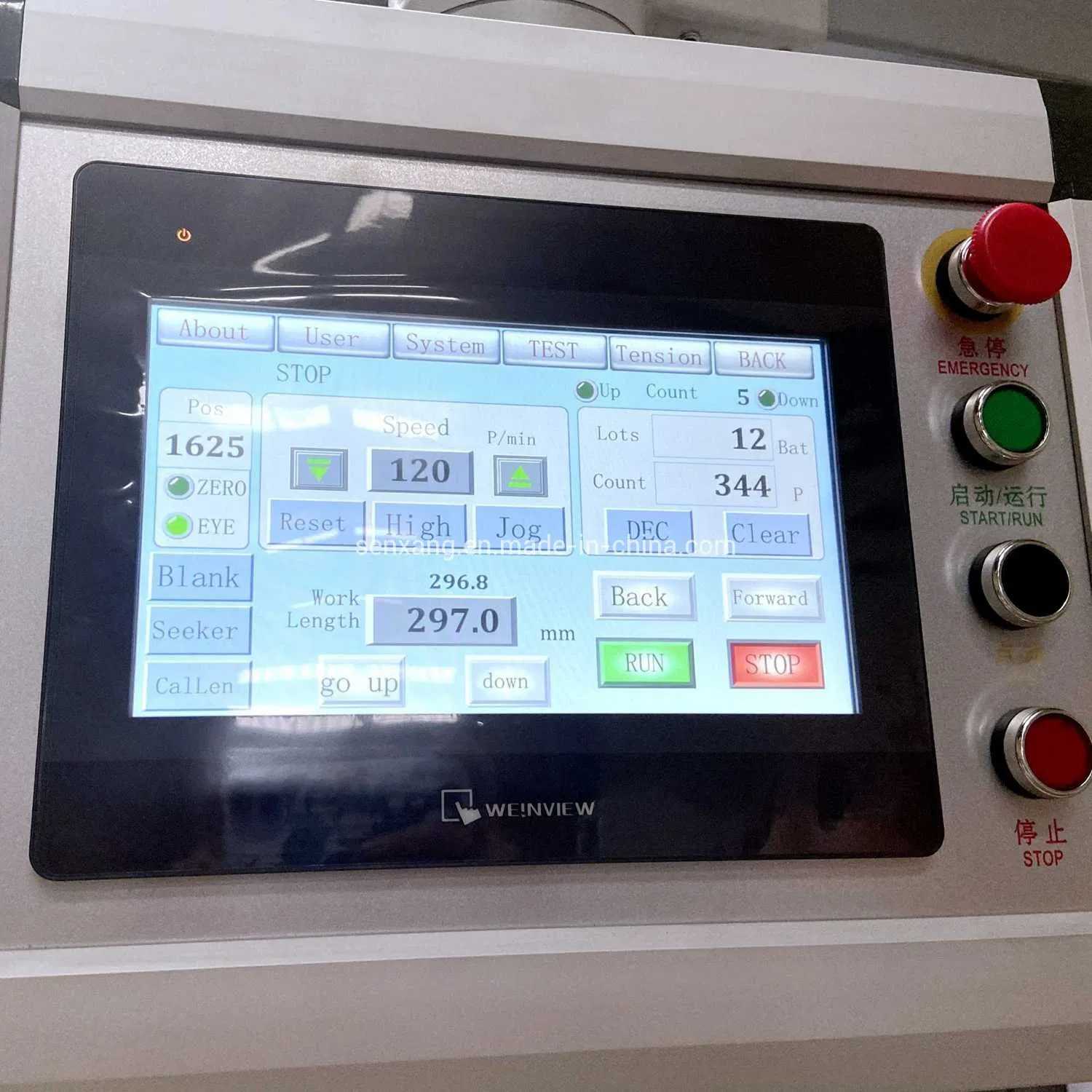

1. Position adjustable interface.
2. Large screen size for convenient operation.

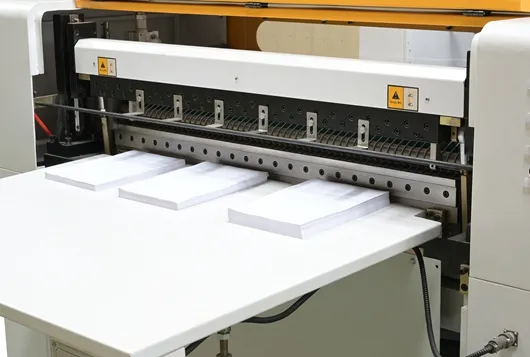

1. Protective cover for the cutting knife.
2. Fixed wooden plate for stability.
1. Quality Warranty: One-year warranty with on-site commissioning and technical training.
2. Training Services: Comprehensive training on operating procedures and routine maintenance.
3. Lifetime Service: Ongoing support for equipment upgrades and maintenance after the warranty expires.
4. Archives Service: Detailed records of contract parameters and technical drawings for every client.
