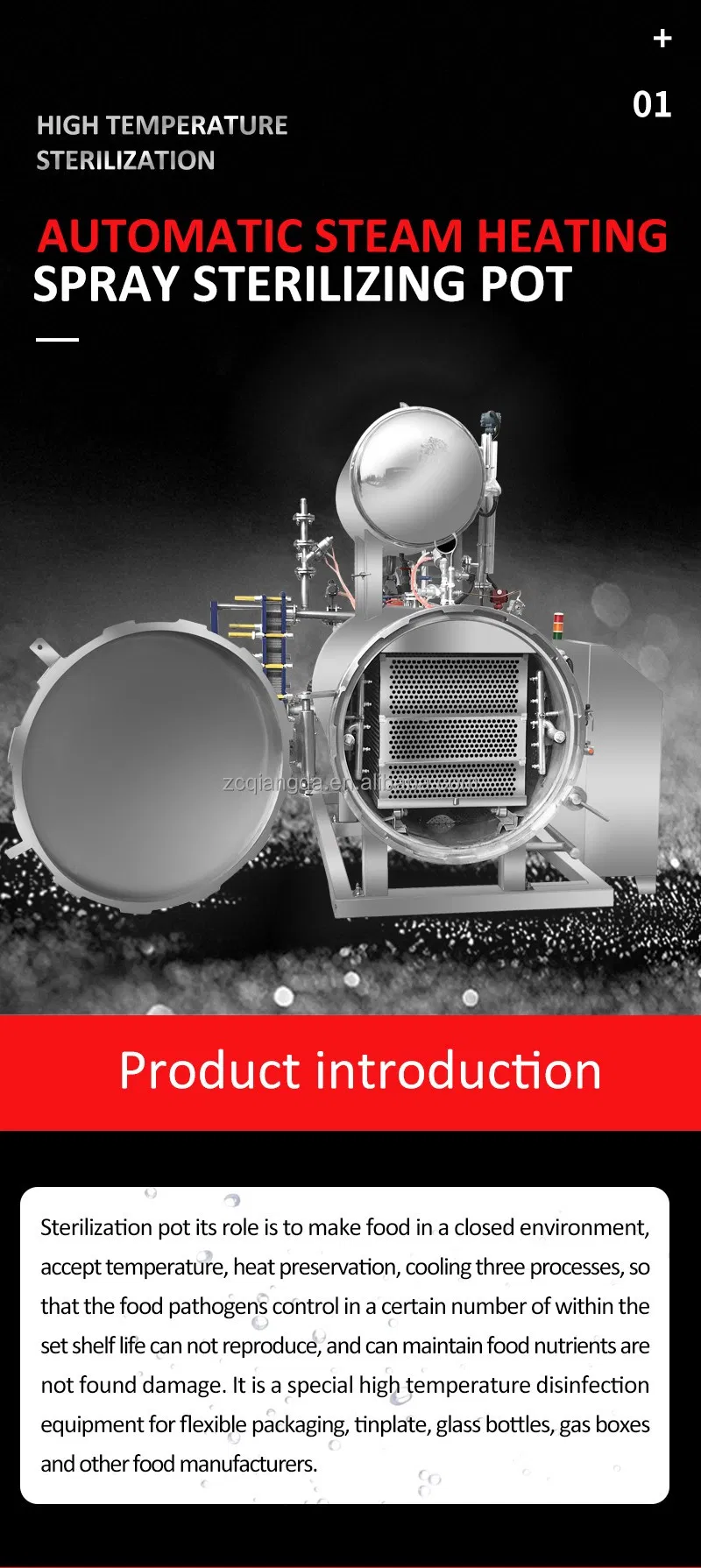

The function of the retort machine is to subject food to heating, heat preservation, and cooling within a closed environment. This process controls pathogenic bacteria within safe levels, prevents reproduction throughout the shelf life, and ensures nutritional components remain intact. It is essential high-temperature disinfection equipment for manufacturers using flexible packaging, tinplate, glass bottles, and gas boxes.

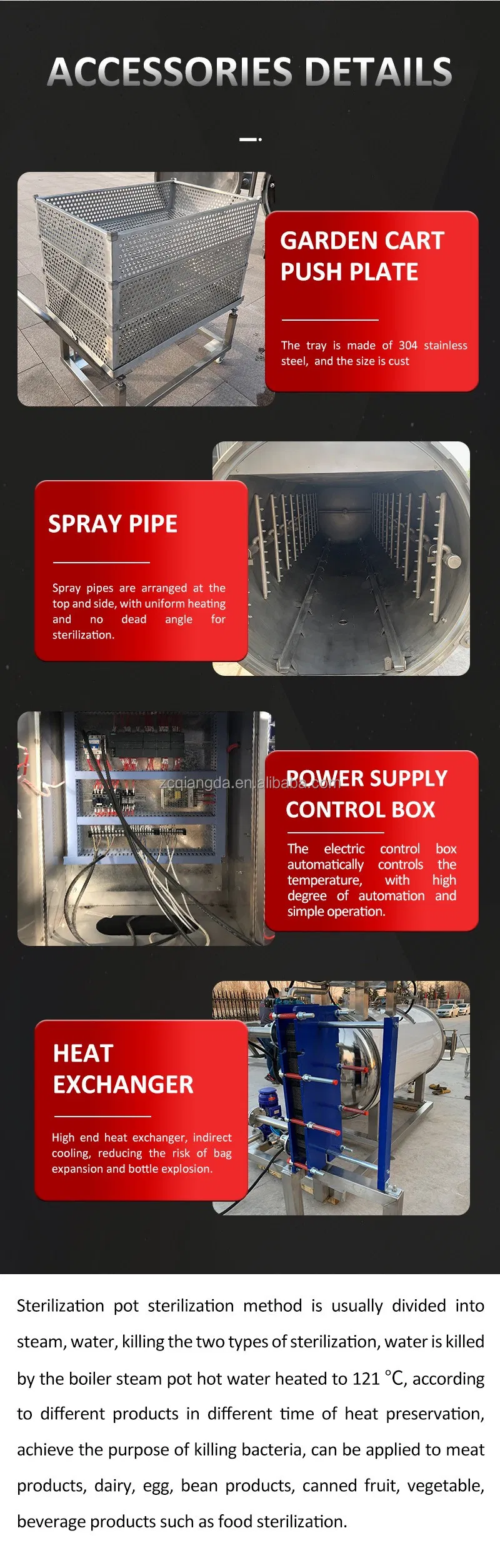

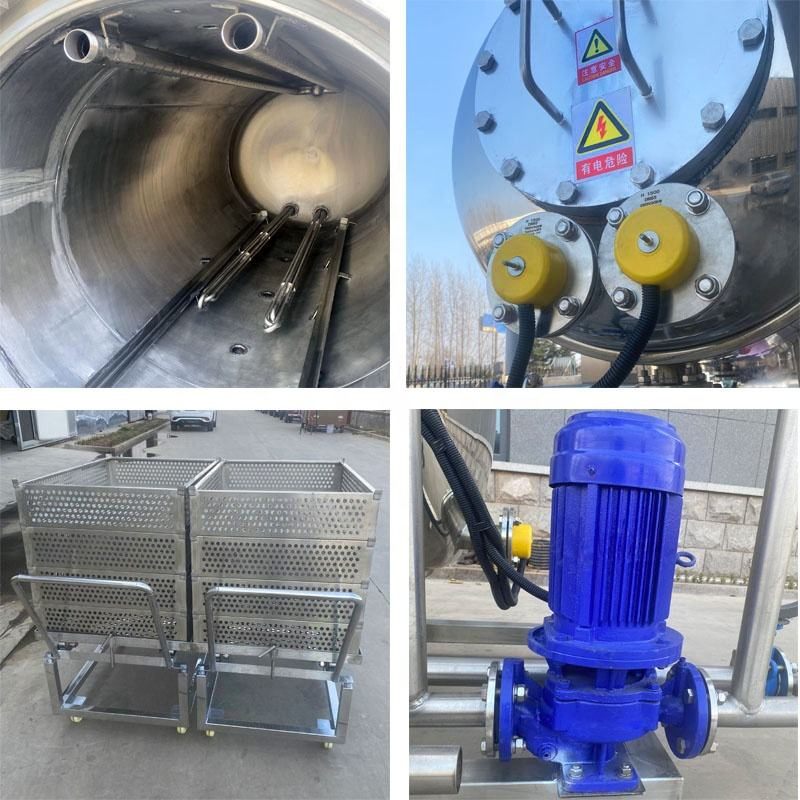

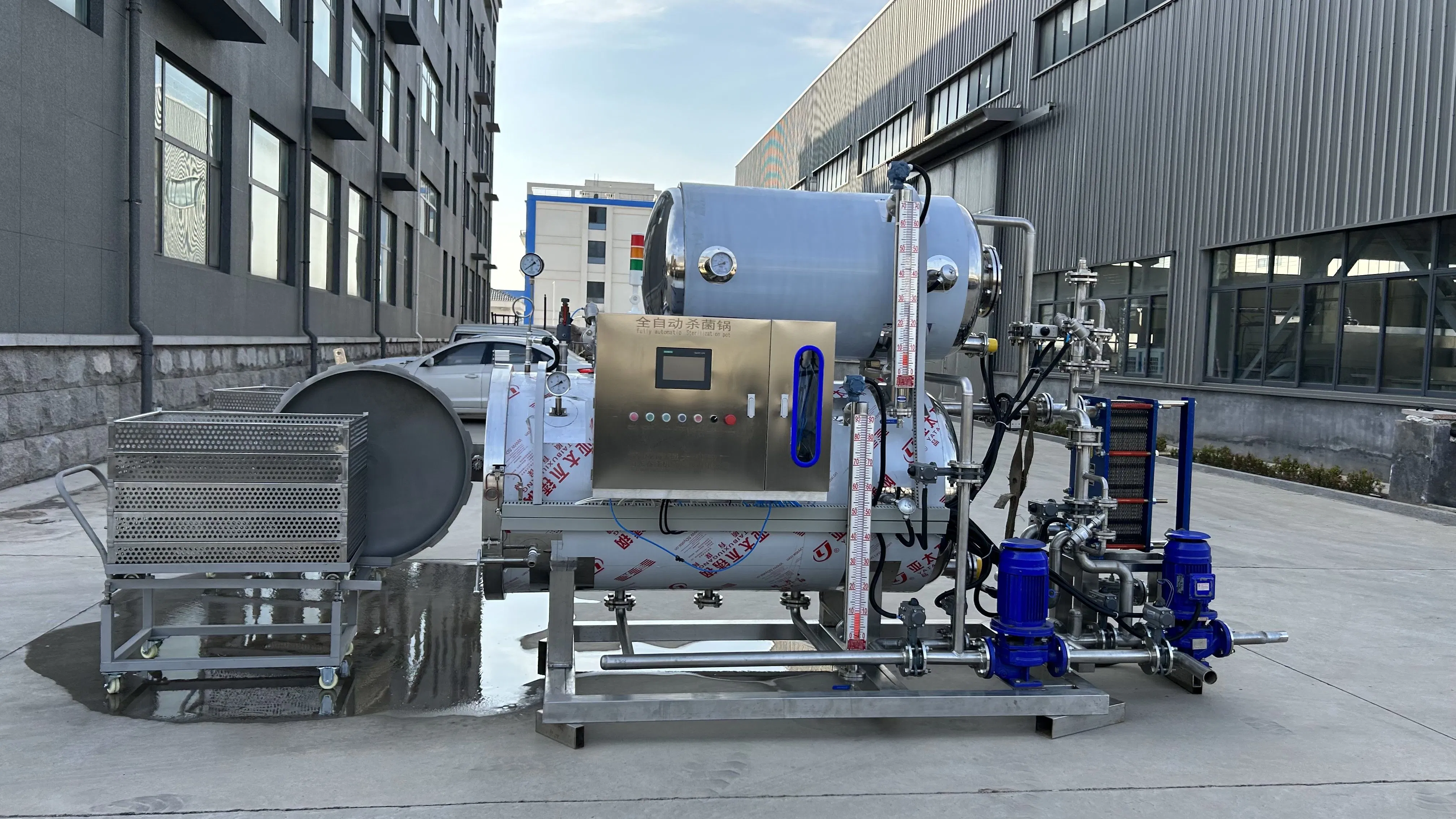

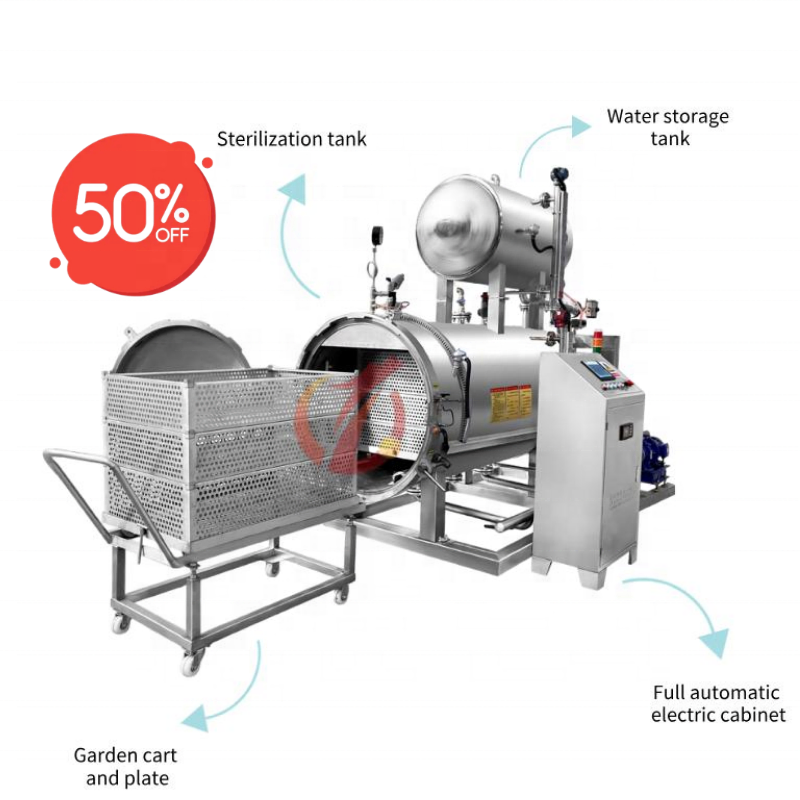

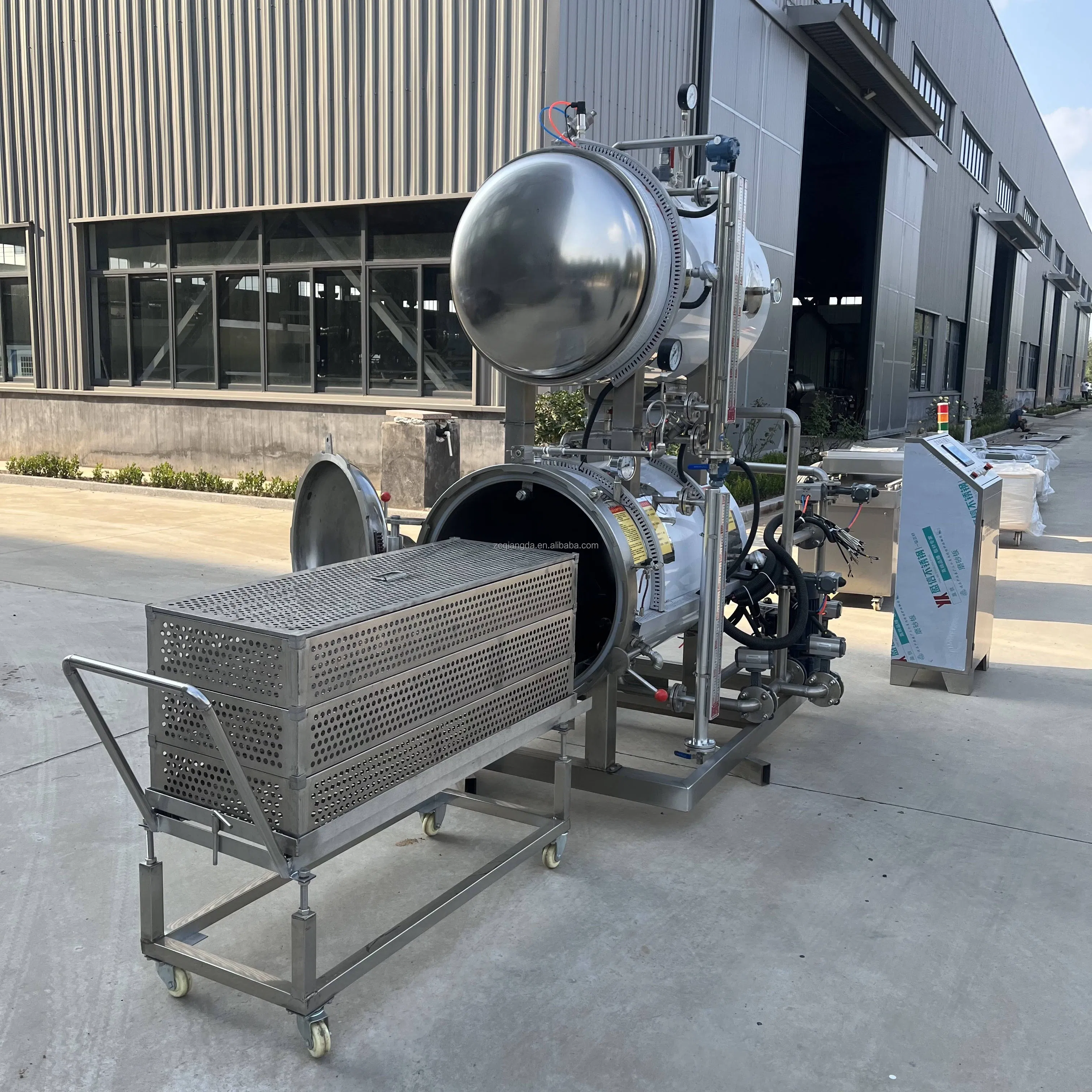

The retort machine is composed of the pot body, pot cover, opening device, locking wedge, safety interlocking device, track, sterilization basket, steam nozzle, and several pipe orifices.

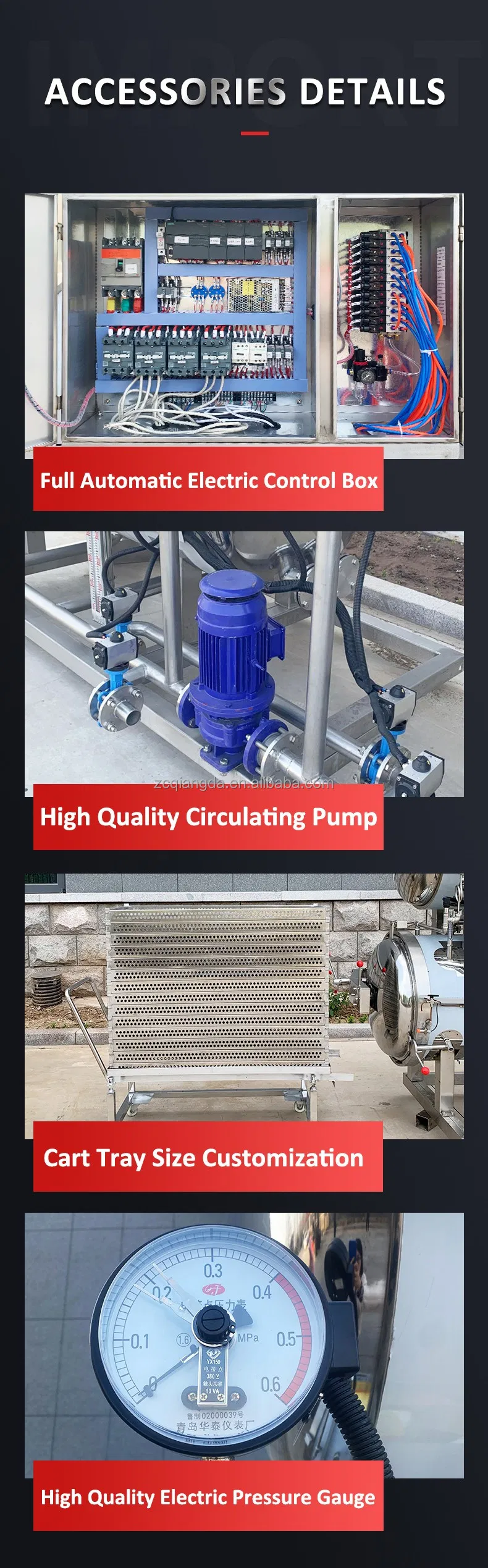

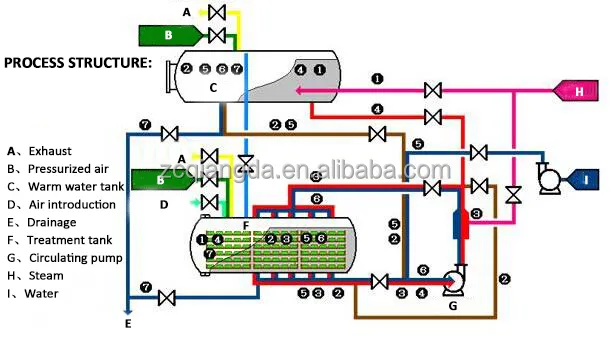

Complete with all necessary accessories, our retort machine follows a precise process flow as illustrated below.
Note: Output is for reference; specific sterilization output is calculated based on your product size.
| Diameter * Length (mm) | Power (kw) | Volume (m³) | Weight | Dimensions (mm) | Yield (kg/batch) | Tray Configuration |
|---|---|---|---|---|---|---|
| 400*800 | 13.5 | 0.1 | 150kg | 1650*850*1400 | 20 | 1 cart 1 plate |
| 500*800 | 27 | 0.15 | 200kg | 1700*900*1650 | 40 | 2 cart 1 plate |
| 600*1000 | 27 | 0.36 | 320kg | 1900*1100*1900 | 100 | 3 cart 1 plate |
| 700*1200 | 27 | 0.5 | 650kg | 2200*1200*210 | 150 | 3 cart 1 plate |
| 800*1500 | 50 | 0.75 | 750kg | 2800*1400*2400 | 250 | 8 cart 2 plate |
| 900*1800 | 60 | 1.14 | 1.3T | 3500*1600*3200 | 300 | 8 cart 2 plate |
| 1000*2200 | 80 | 1.73 | 1.7T | 3800*1600*3300 | 500 | 10 cart 2 plate |
| 1200*2700 | 8 (Pump) | 3.05 | 2.2T | 4700*1900*4000 | 800 | 15 cart 3 plate |

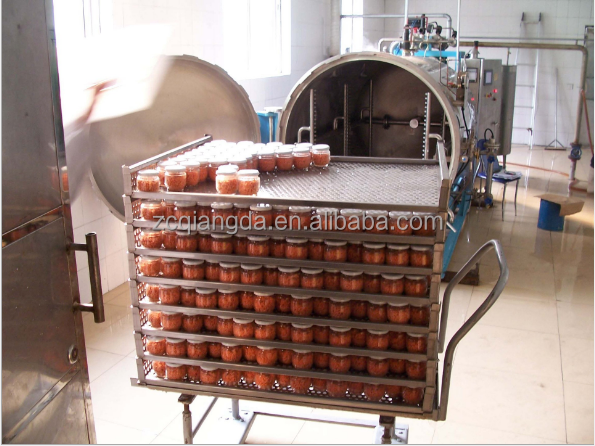

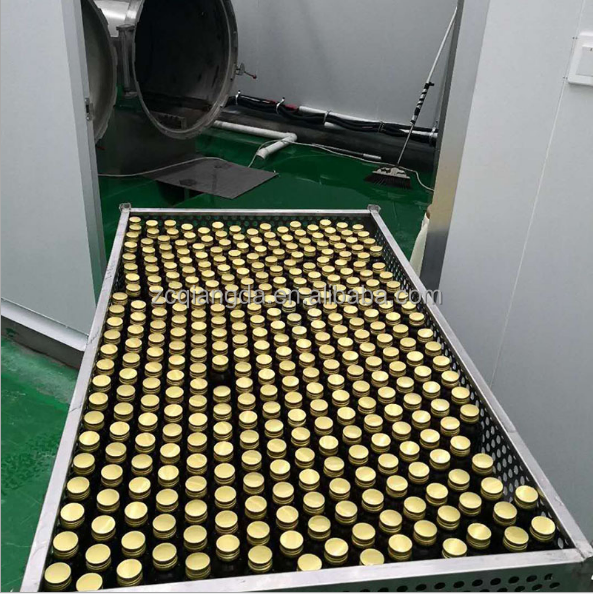

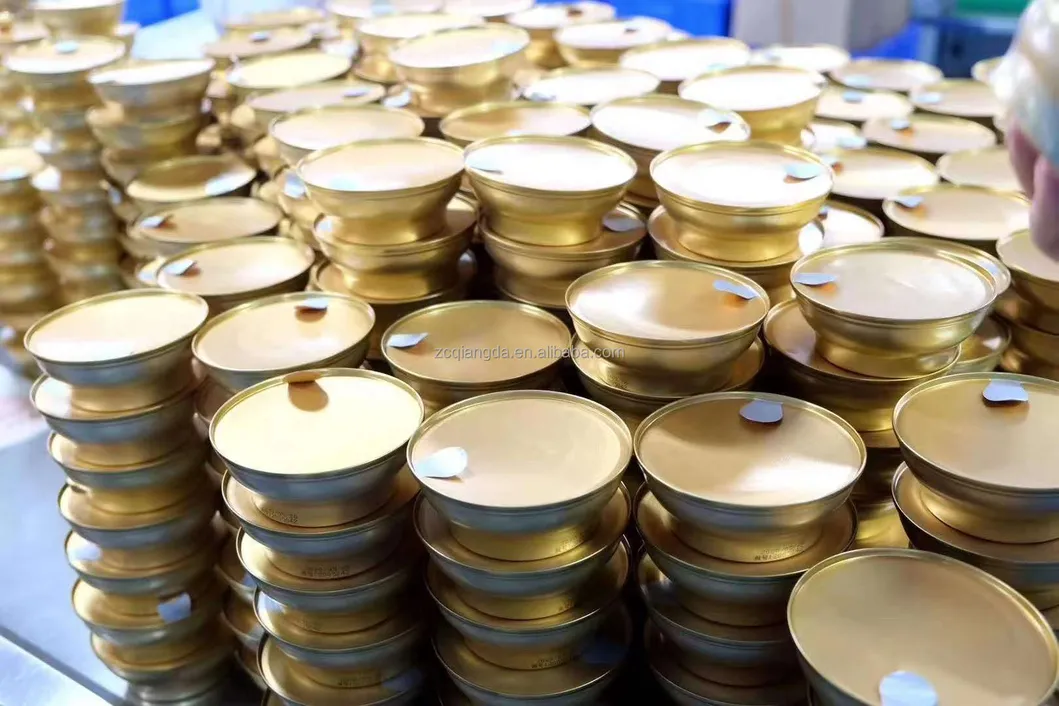

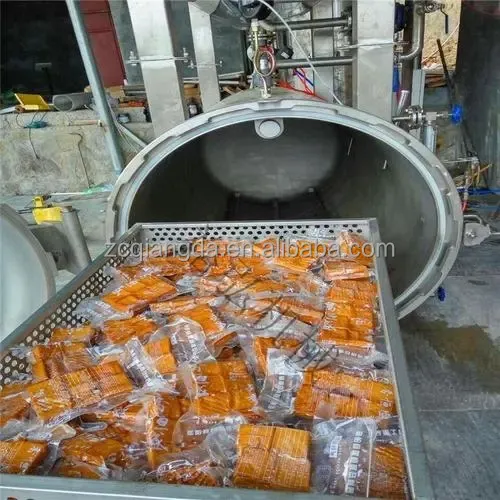

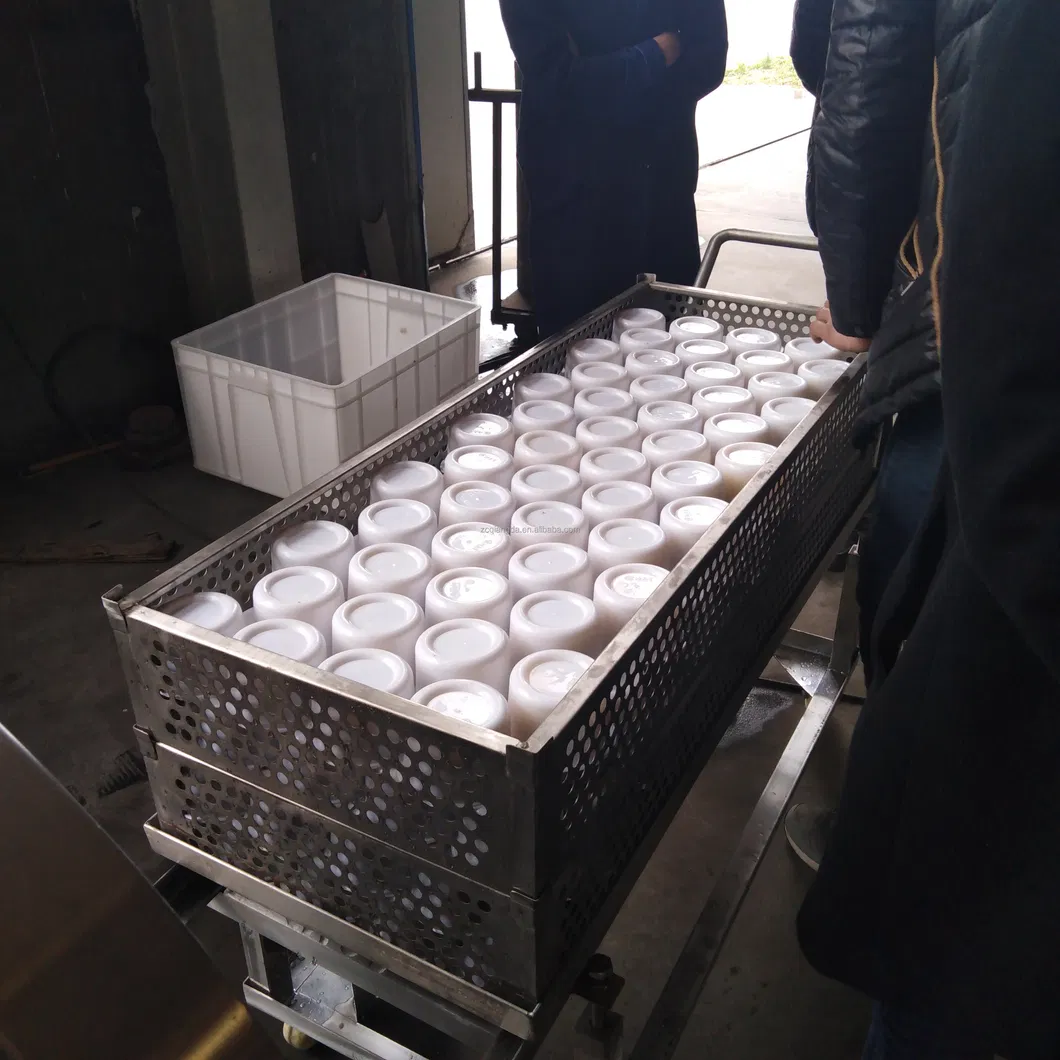

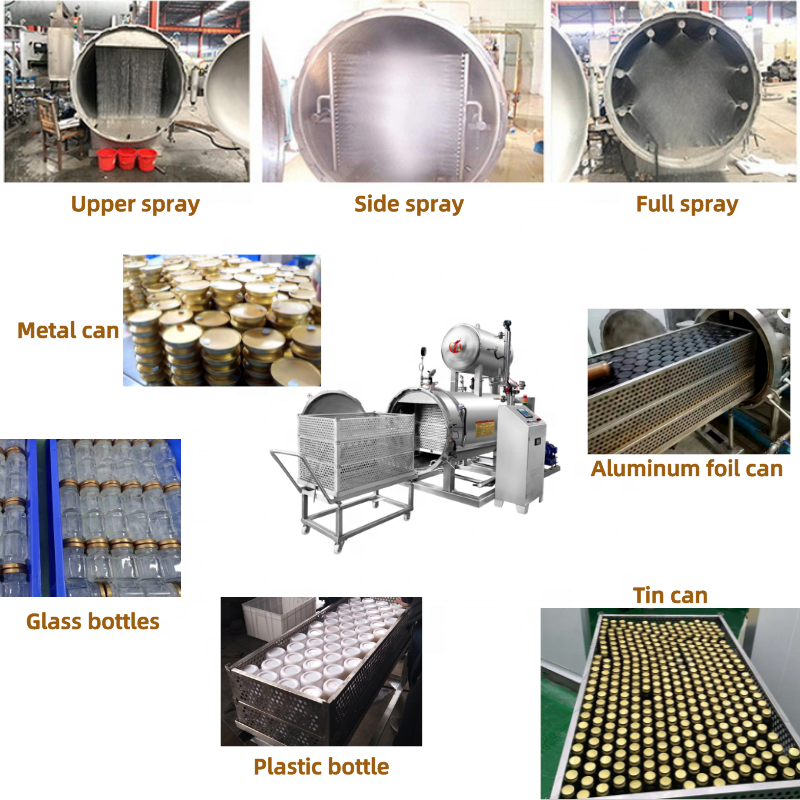

Applicable for sterilizing canned products in glass bottles, iron cans, PET plastic bottles, and vacuum soft packaging. Ideal for beverages, dairy, fruit juices, vegetables, seafood, meat products, and pet food. Suitable for food factories, restaurants, and large canteens.

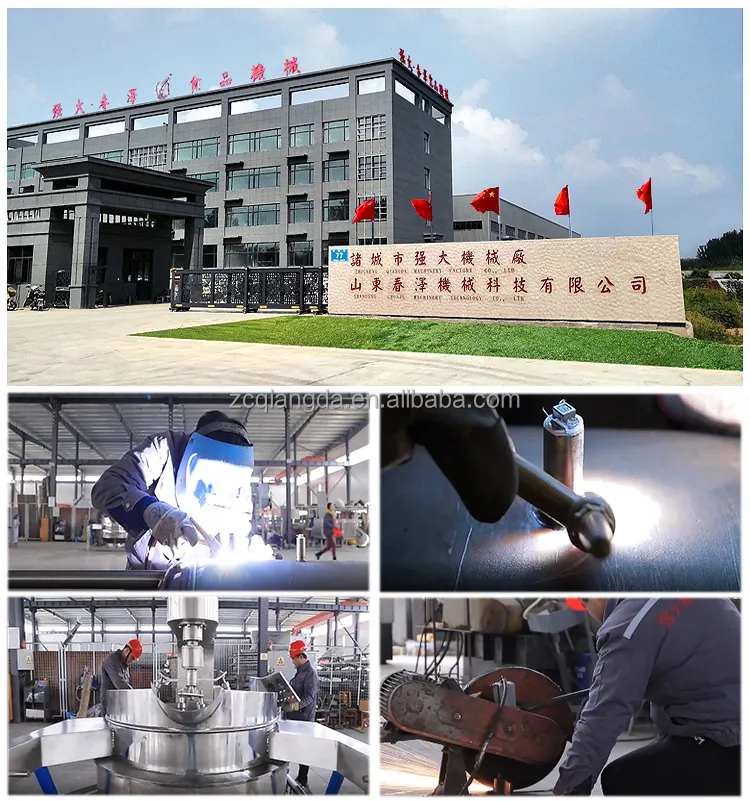

Established in 2003, we are a group enterprise integrating scientific research, production, and service. We specialize in the export of food machinery including sterilization equipment, pasteurization systems, and vacuum packaging machines.
Our facility focuses on technological innovation and quality control. We design custom production lines based on specific client needs and workshop scales, offering comprehensive technical support and maintenance services.
