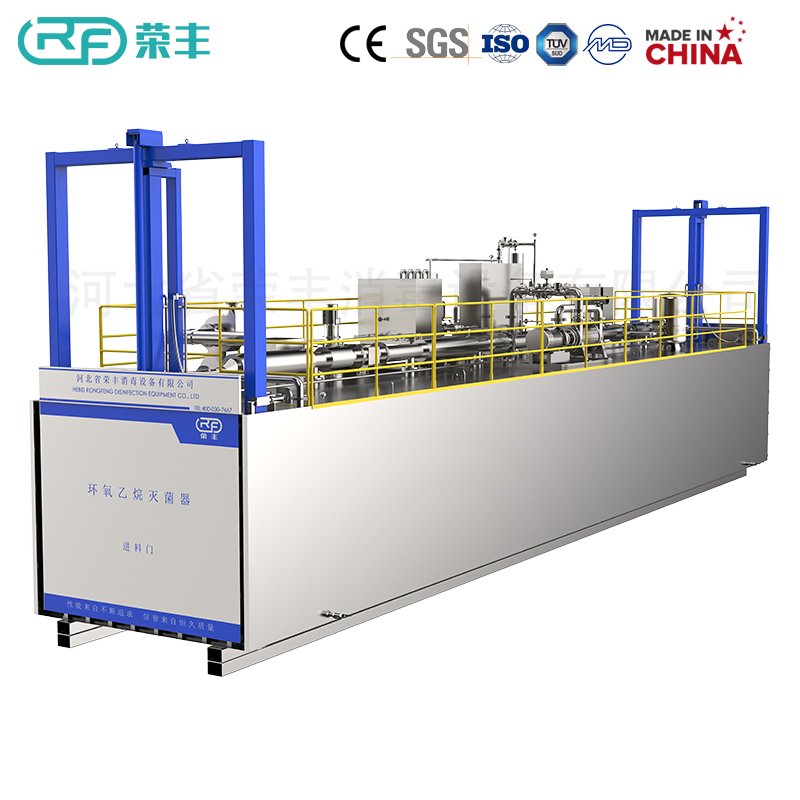

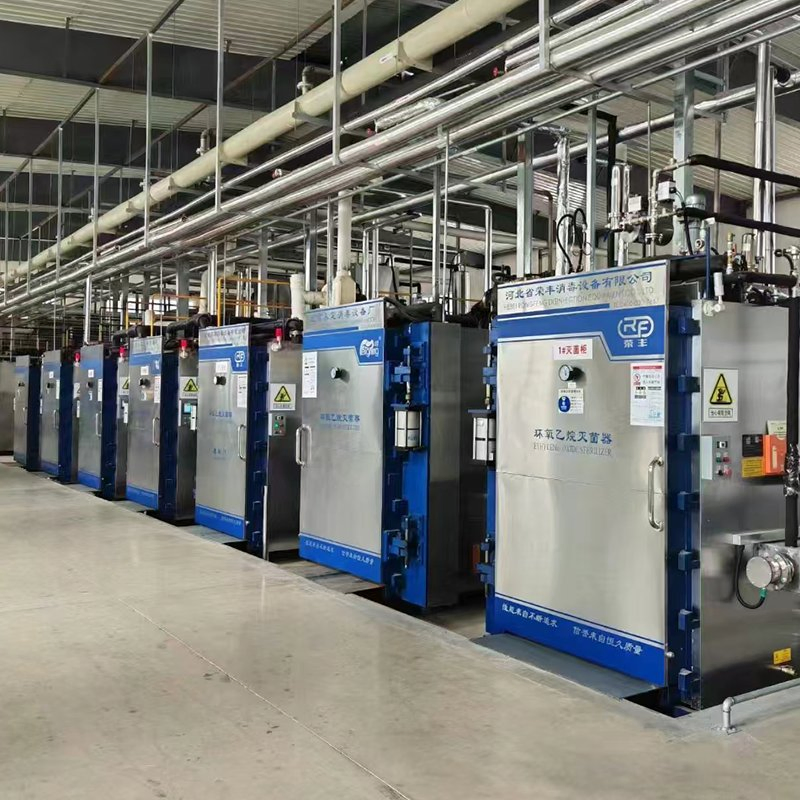

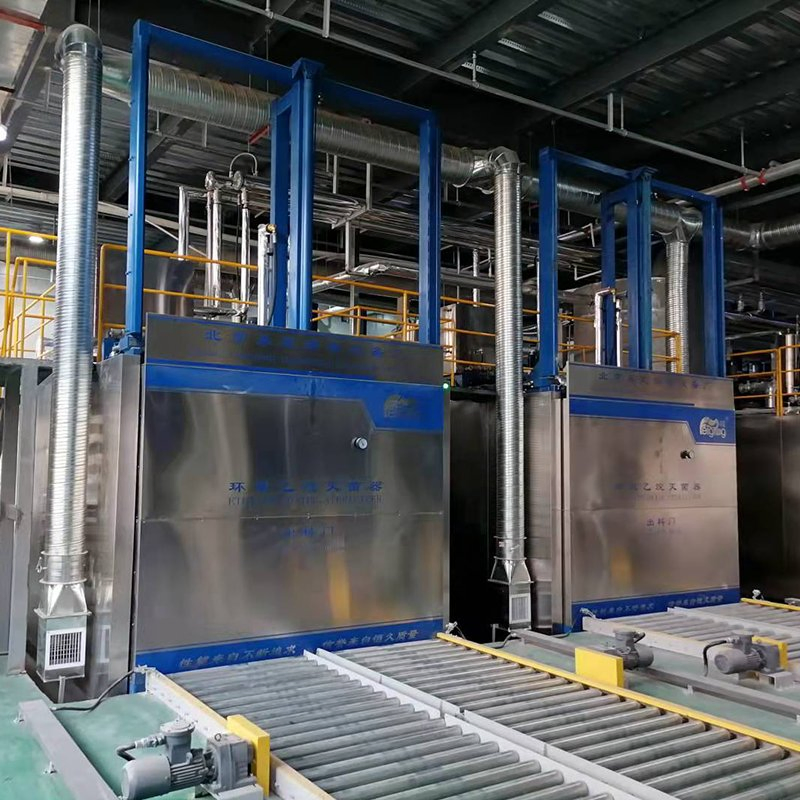

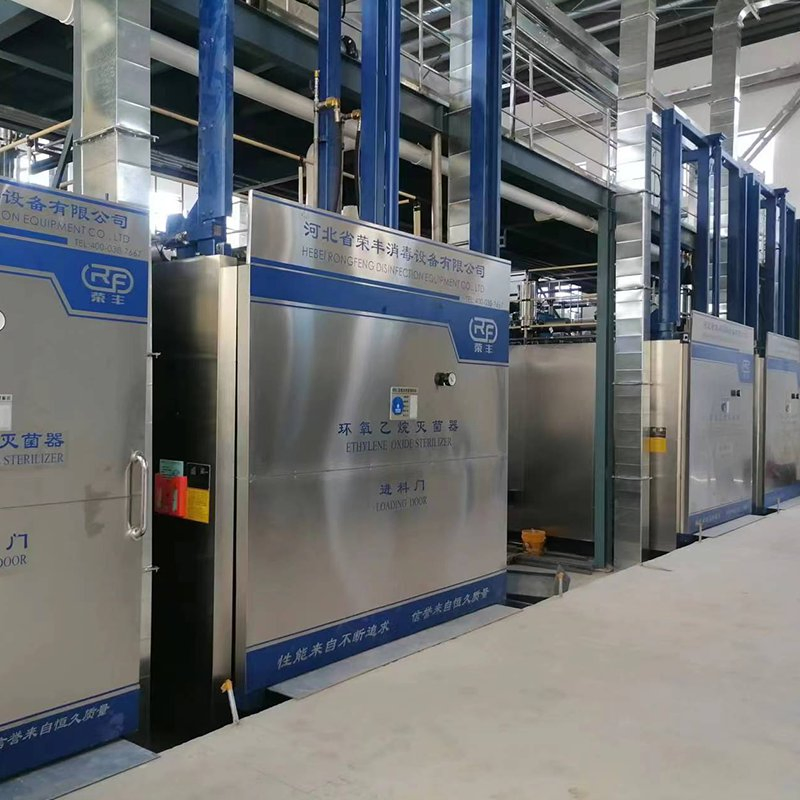

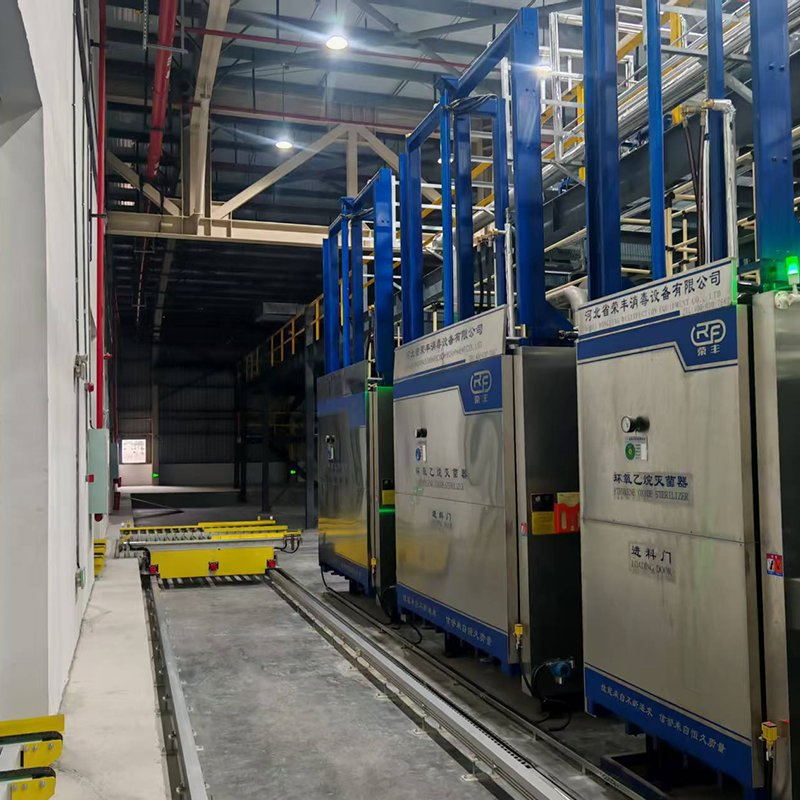

Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer

1 / 5

Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer

Customization:	Available
Theory:	Chemical Sterilization
Type:	Gas Sterilization Equipments

Send Inquiry

Product Description

Basic Information

Model NO.

HMQ

Certification

CE, ISO13485

Material

Stainless Steel

Specification

1-100m³

Voltage

380V

LCD Display

Equipped

Sterilization Principle

Ethylene oxide sterilizer is professional equipment for low-temperature fumigation and sterilization. It processes articles enclosed in a sterilization room with ethylene oxide gas under specific temperature, pressure, and humidity conditions. It features a broad sterilization spectrum and strong penetration (capable of penetrating cloth, cartons, and polyethylene film), ensuring thorough sterilization without damaging items.

Key Product Features

Durable ConstructionBuilt with pressure vessel grade plates, ensuring a service life of up to 20 years.

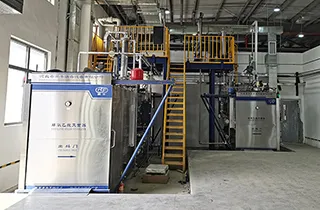

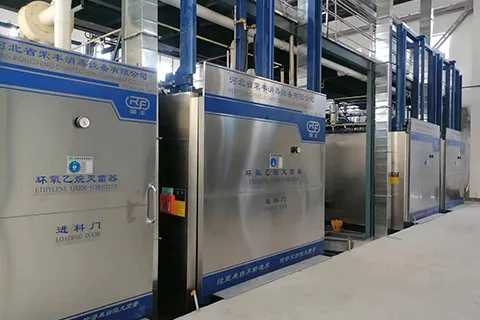

Fully CustomizableSupport for tailored sizes, configurations, and door types (lifting, sliding, or revolving).

Uniform HeatingHexahedral hot water circulation heating eliminates dead corners and ensures consistent conditions.

Smart ControlIntelligent automatic/semi-automatic operation with voice prompts and advanced monitoring.

Safety FirstReal-time monitoring for over-temperature, over-pressure, and non-vaporization with auto-alarms.

Easy MaintenanceDisassemble-friendly dosing pipelines and drainage valves for convenient cleaning and water replacement.

Technical & Basic Parameters

Inner Tank Volume

1 ~ 100m³

Temp. Range

0 ~ 100℃

Pressure Control

±80Kpa

Humidity Range

0 ~ 99%RH

Volume (m³)	Model	Inner Size LWH (mm)	Temp (℃)	Humidity (%RH)	Pressure (MPa)	Power (kW)	Weight (kg)
1	HMQ-1	1400x700x1000	30-70	40-80	-0.08~0.08	45	1000
3	HMQ-3	2500x1000x1200				45	3000
6	HMQ-6	2900x1350x1550				45	5000
15	HMQ-15	5600x1350x2000				100	9000
30	HMQ-30	10000x1350x2000				100	15000
50	HMQ-50	8500x2700x2200				100	25000
