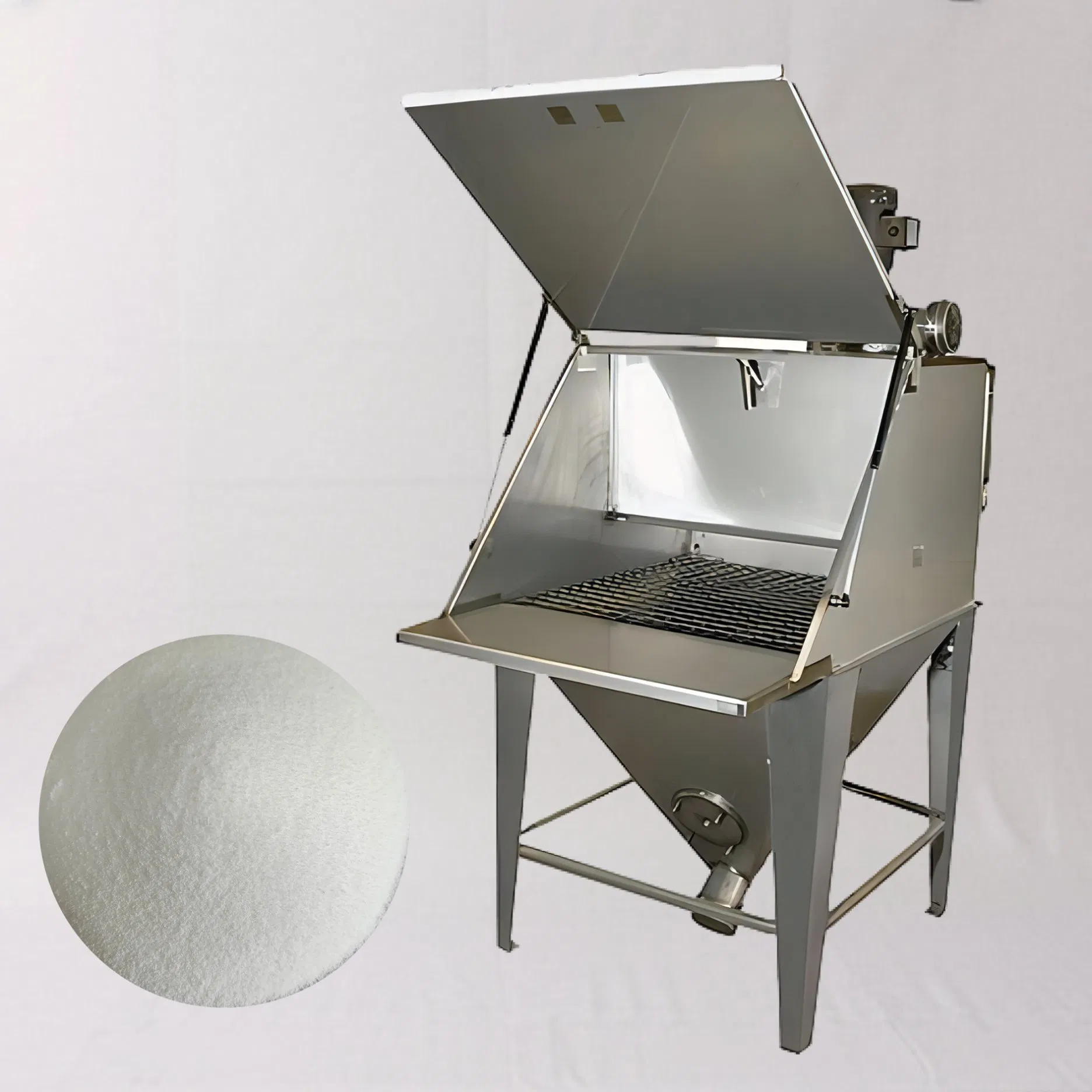

Ergonomic Anhydrous Dextrose Powder Feeding Machine Dust-Free Bag Feeder

Customization: Available
Capacity(t/h): 150-300
Motor Power(kw): 1~10

Product Description

Basic Information

Model NO.
WT-100/WT-150
Raw Material
Powder
Usage
Chemical Industry, Metallurgy, Mine
Type
Storage Feeder
Appearance
Open-Type
Max Feeding (mm)
630
Installation Slope
0
Warranty
1 Year
Movement Mode
Gravitational Traction
Origin
China
Package Size
125.00cm * 125.00cm * 220.00cm
Gross Weight
700.000kg

Product Overview

Dust-Free Bag Feeder
It allows the dust generated during feeding to be sucked into the filtration system by the negative pressure formed by the centrifugal fan or exhaust pipe, separating the material from the air to prevent dust from scattering and escaping, thus avoiding environmental pollution and protecting the health of operators.

At the same time, during the cleaning process of the filter, the materials originally attached to the filter mesh will return to the hopper, avoiding material waste. This machine is suitable for unpacking, releasing, and unloading small bag materials. It has a wide range of applications and can be connected to material suction machines, pipe chain conveyors, equipment entrances, etc.
Feature Header

Key Features

  • Effective prevention of dust flying, significantly improving the working environment for feeding operators.
  • Modular design with a compact structure, ensuring simple and convenient installation, operation, and maintenance.
  • The interior of the hopper is treated with a mirror finish, effectively eliminating material static electricity.

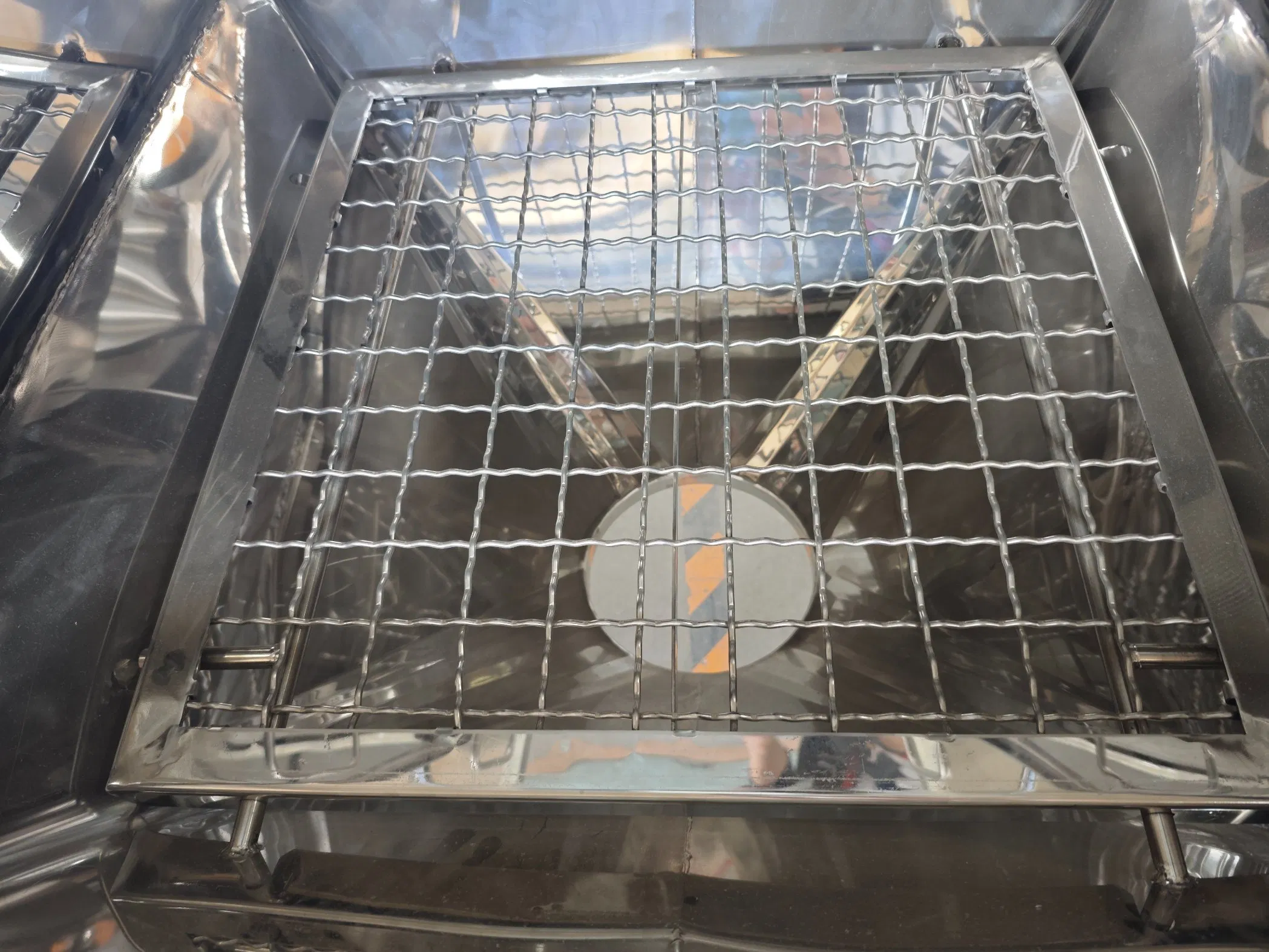

  • Optional configuration of vibrating screens and lump breakers to intercept foreign objects, ensuring high material quality.

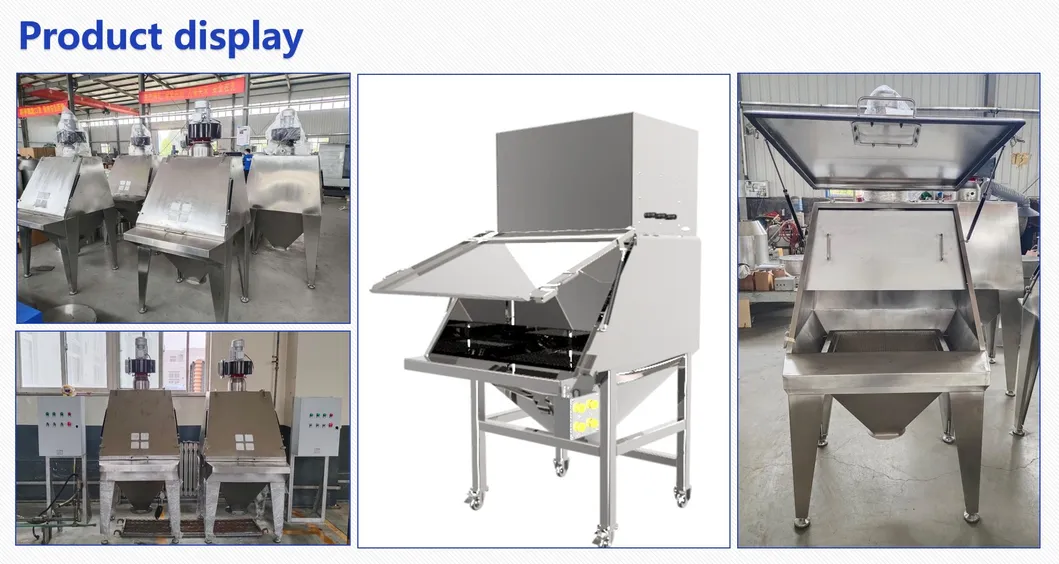

Equipment Detail 1 Equipment Detail 2

Technical Specifications

Model WT100 WT150
Volume (L) 100 150
Power (kW) 0.75 1.1
Compressed Air [L/min / MPa] 50 / 0.6
Discharge Interface 8-inch quick connector
Dust Removal Fan Interface Φ100 Φ150
Weight (Kg) 150 200
Overall Dimensions (mm) Length: 1000, Width: 900, Height: 2000
1. Does not include the power of additional selected fan and its electrical components.
2. Only for the compressed air consumption required by the backflush device.
Technical Drawing 1 Technical Drawing 2

Industrial Application

Application View

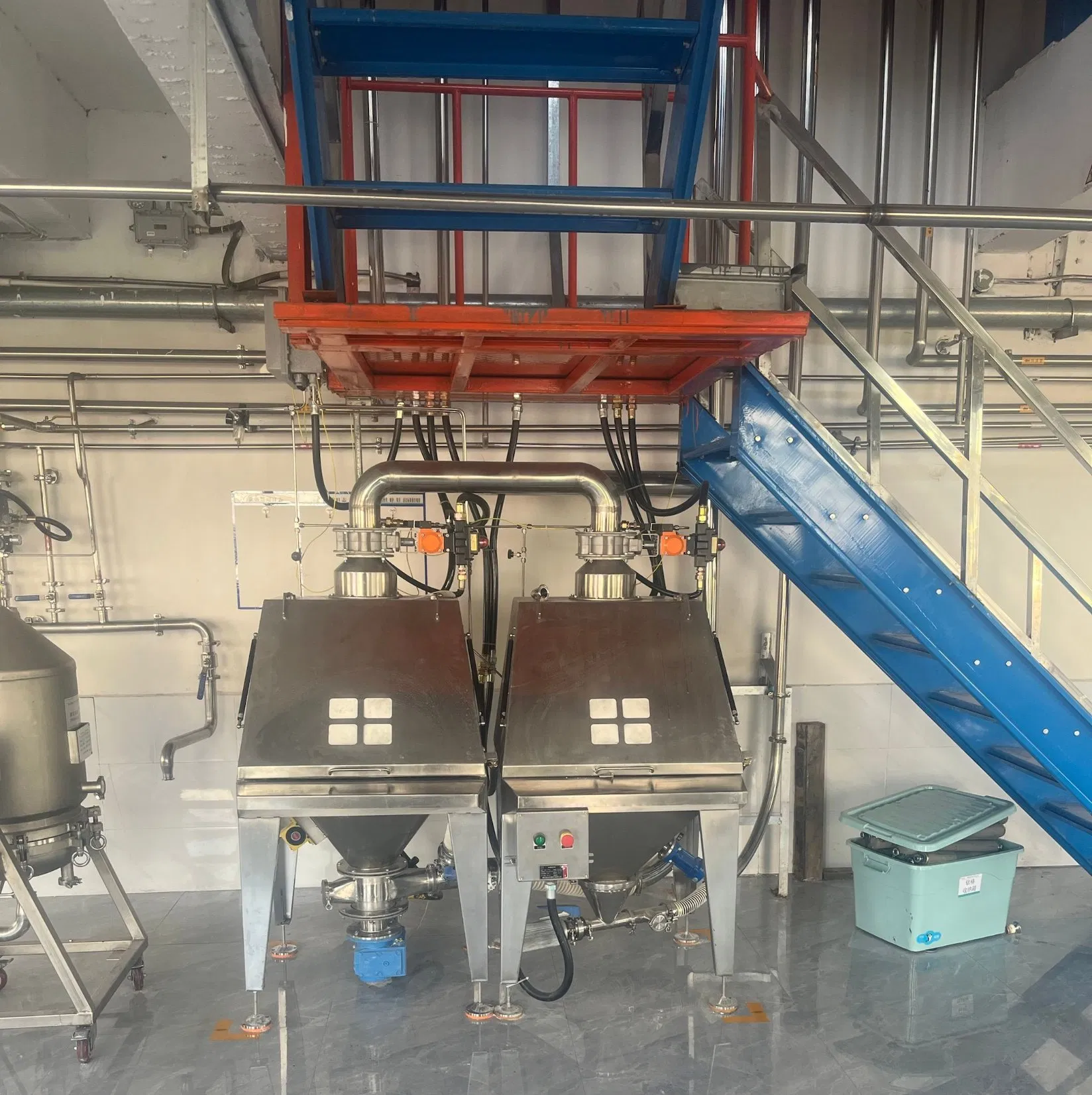

The equipment is widely used for dust-free enclosed feeding, sealed conveying, and pneumatic conveying. It serves critical roles in:
  • Metal Materials Industry
  • Food Processing Industry
  • Chemical and Pharmaceutical Industries
  • New Energy Material Handling
Frequently Asked Questions
How does the dust-free feeding system protect operators?
The system utilizes negative pressure generated by a centrifugal fan to suck dust into a filtration system, preventing it from escaping into the workspace and protecting the health of the staff.
Is there any material waste during the filtration process?
No. During the backflush cleaning process of the filter, materials attached to the filter mesh are returned directly to the hopper, minimizing waste.
What materials is the mirror-finish hopper designed for?
The mirror finish is designed to effectively eliminate static electricity, making it ideal for various fine powders used in chemical and pharmaceutical industries.
Can this machine handle foreign objects in the raw material?
Yes, the machine can be configured with vibrating screens and lump breakers to intercept foreign objects and ensure only qualified materials move to the next production stage.
What are the main differences between the WT100 and WT150 models?
The WT150 has a larger volume (150L vs 100L), higher power (1.1kW vs 0.75kW), and a larger dust removal fan interface (Φ150 vs Φ100).
Can this feeder be integrated into existing production lines?
Absolutely. Its modular design allows it to be easily connected to material suction machines, pipe chain conveyors, or various equipment entrances.
