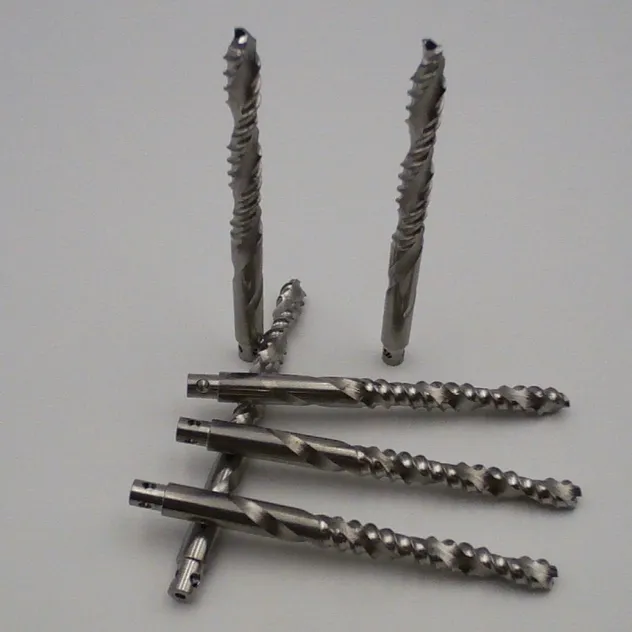

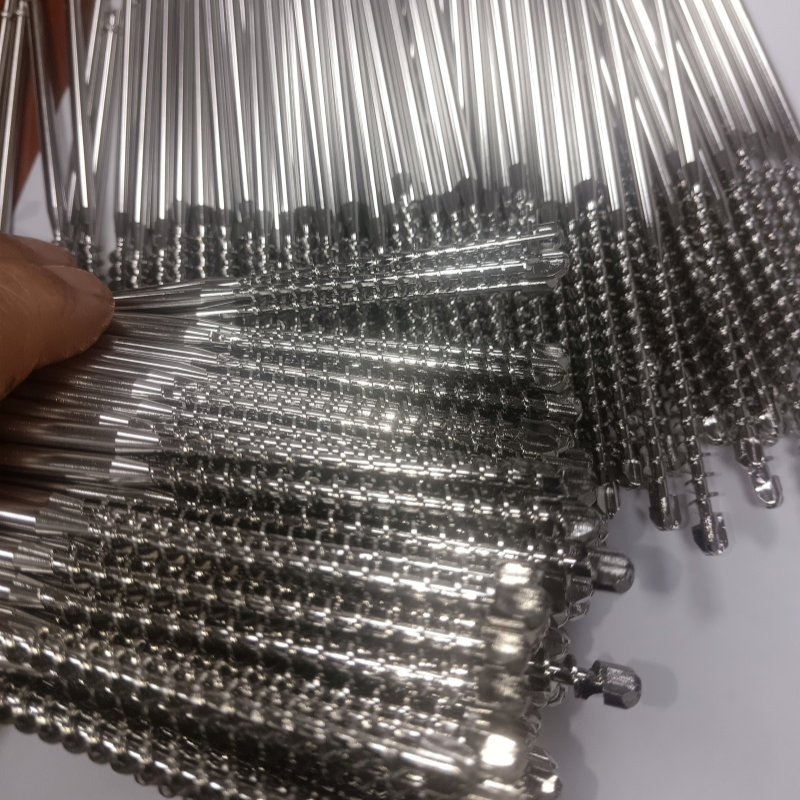

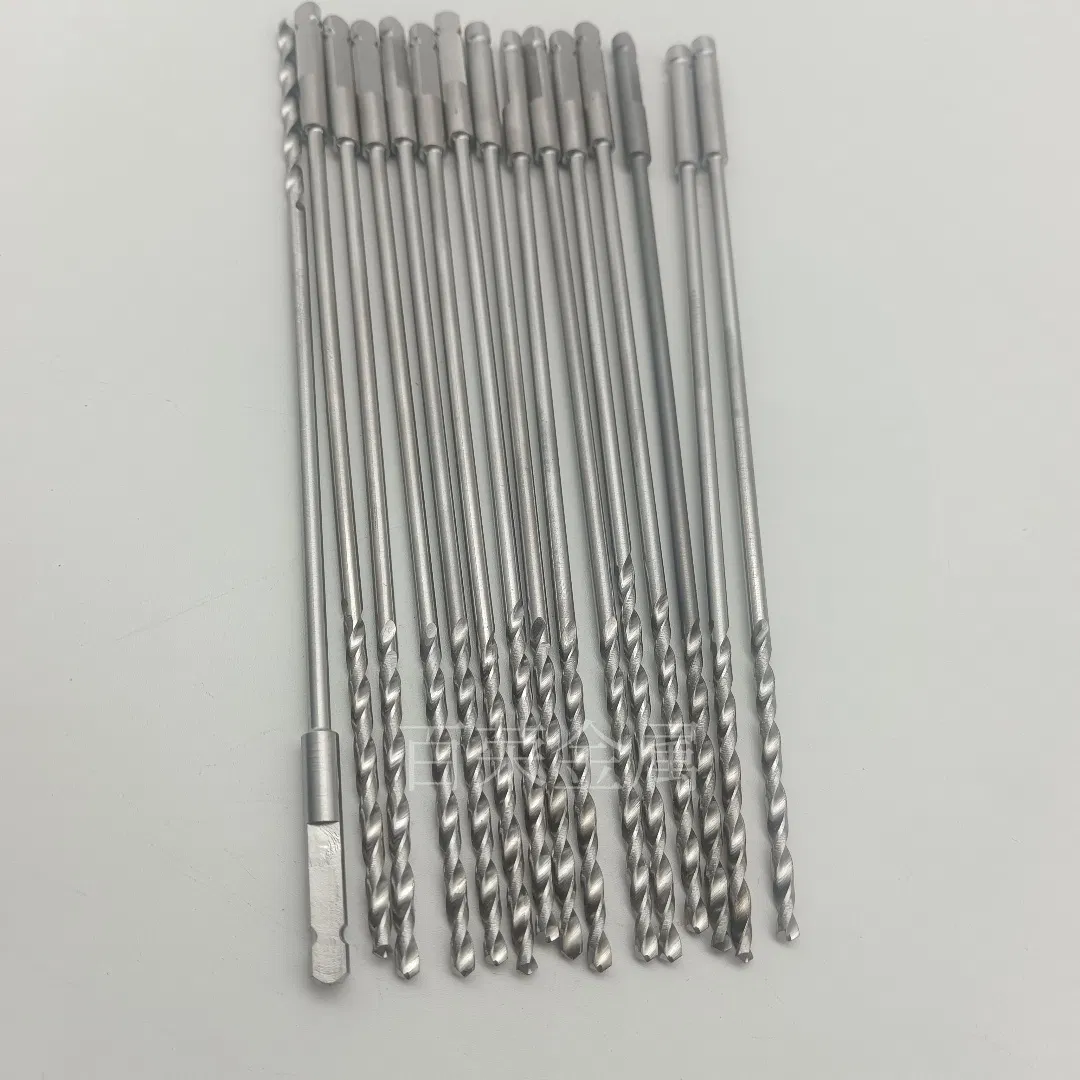

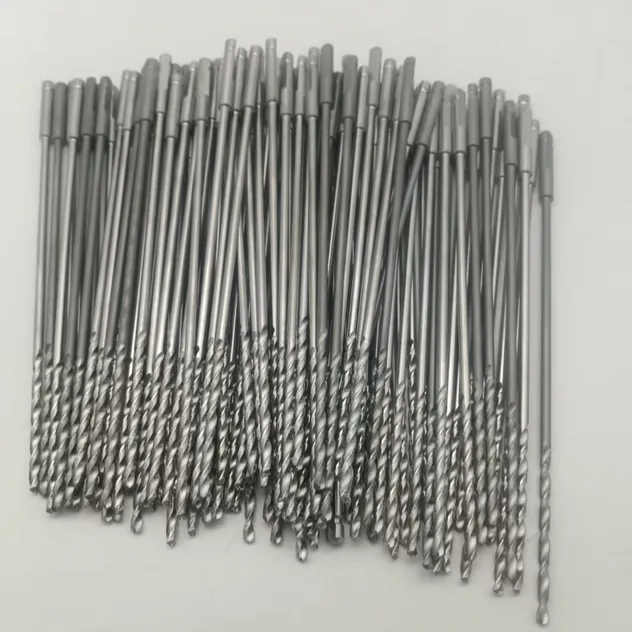

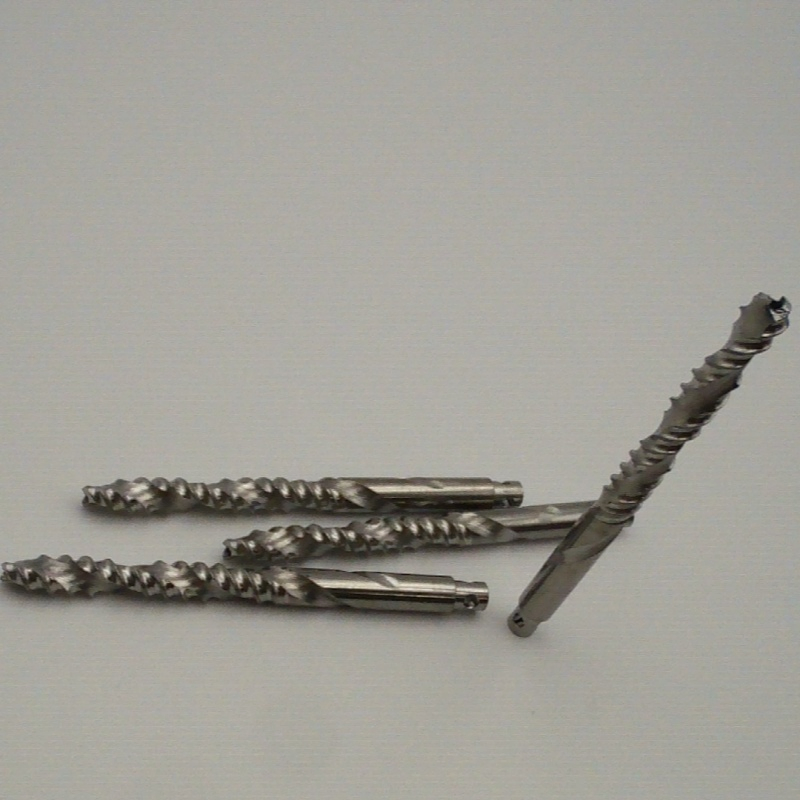

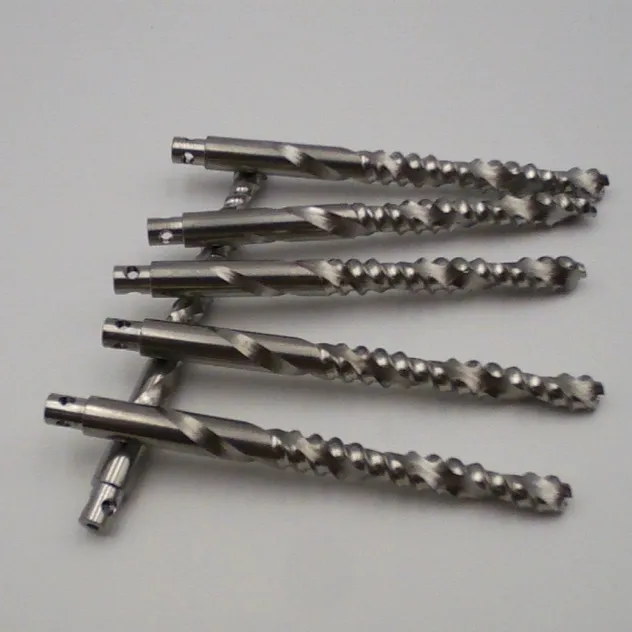

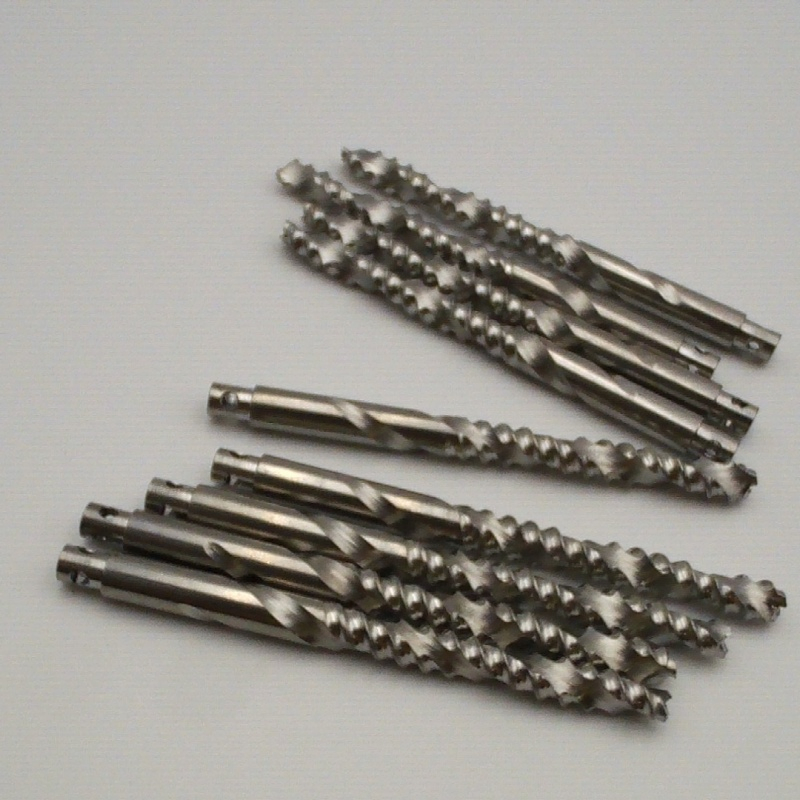

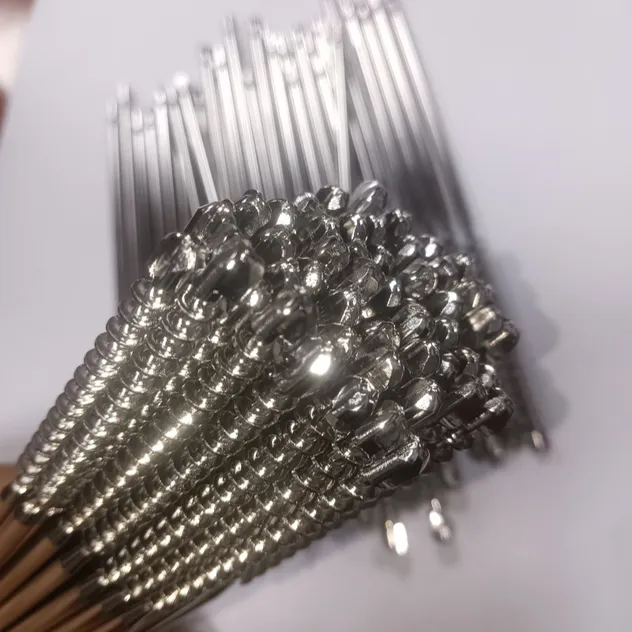

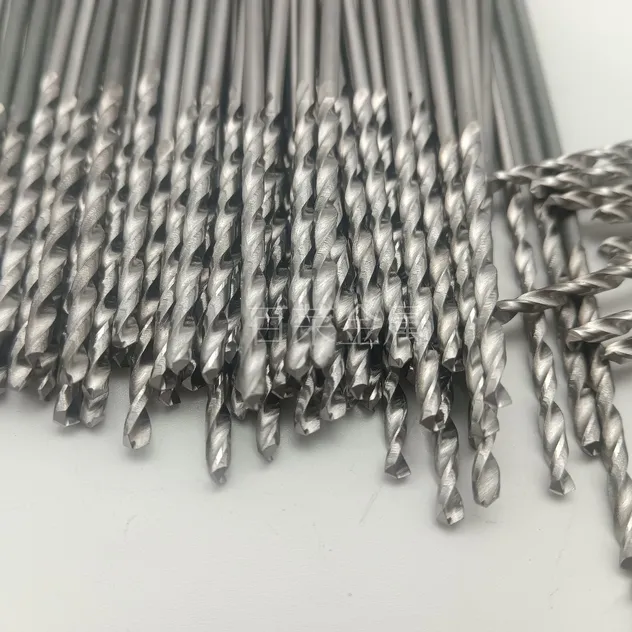

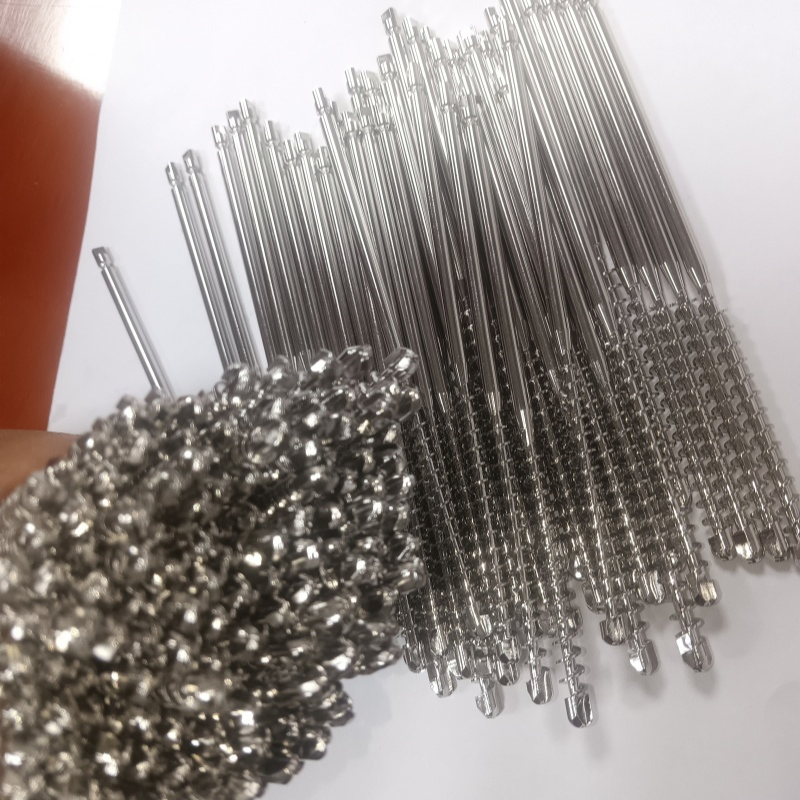

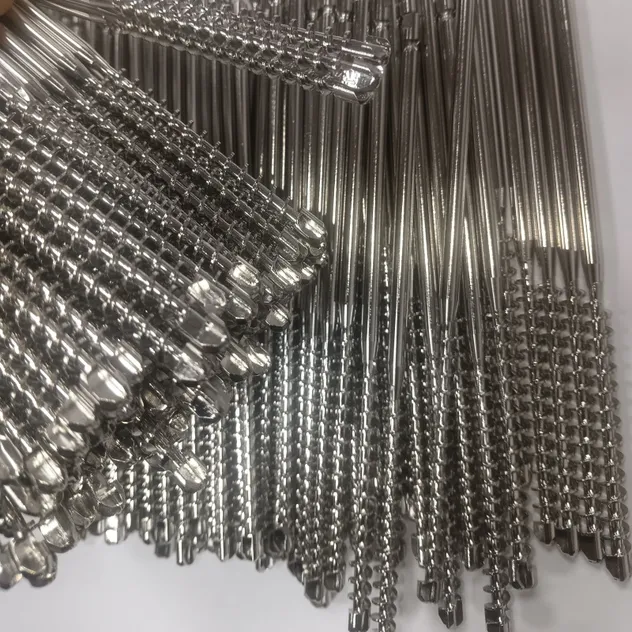

Efficient Hole Opener: Precision Medical Drill Bit for Surgical Applications
Precision Medical Drills: Reliable Stainless Steel Drilling Tools are high-performance cutting instruments engineered for creating clean, accurate, and consistent holes in bone, biometals (like titanium and cobalt-chrome alloys), and high-strength polymers during surgical procedures. Manufactured from medical-grade stainless steel (such as 420 or 17-4PH), these drills are heat-treated to achieve an optimal balance of hardness, sharpness, and torsional strength.
Product Processing
The manufacturing process prioritizes metallurgical integrity, geometric precision, and sterility assurance. Using CNC precision grinding machines with diamond/CBN wheels, complex helical flutes and precise point geometry are formed. The drills undergo controlled hardening to achieve 55-60 HRC, followed by intensive ultrasonic cleaning and chemical passivation (per ASTM A967) to maximize corrosion resistance.
| Category | Feature | Specifications |
|---|---|---|
| Material | Primary Material | 420 Stainless Steel (Hardened), 17-4PH Stainless Steel. |
| Key Properties | High hardness, excellent wear resistance, biocompatibility. | |
| Mechanical | Hardness | 55 - 60 HRC (420 SS) / 40 - 48 HRC (17-4PH). |
| Torsional Strength | High, tested to exceed procedural torque requirements. | |
| Dimensions | Diameter (D) | 0.6 mm – 6.5 mm (Customizable). |
| Overall Length | 40 mm – 150 mm. | |
| Shank Type | Standardized hex or round for specific drivers. | |
| Geometry | Point Angle | Standard 118° or Bone/Orthopedic 90°. |
| Quality | Tolerances | Diameter: h6/h7 (±0.01mm to ±0.02mm). |
Our facility has obtained quality system certifications including ISO 9001:2015 and medical device quality system certification ISO 13485:2016. We focus on the research and production of non-standard metal medical device precision parts. Equipped with high-precision engraving lathes, CNC machines, and precision laser cutting equipment, we ensure each product meets strict industry standards. Our R&D team is committed to providing high-precision customization services for hardware parts applied in medical, automotive, and electronics industries.
