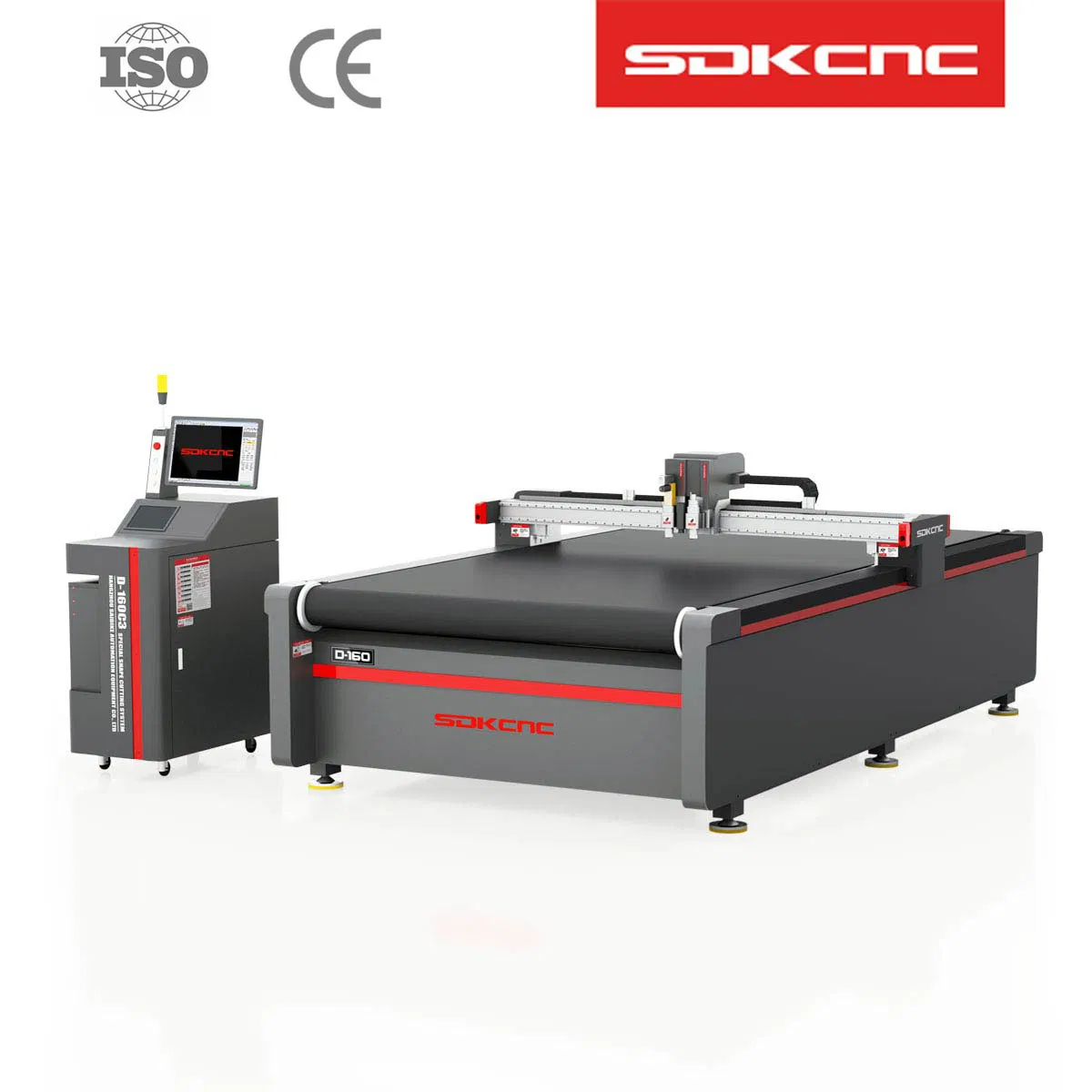

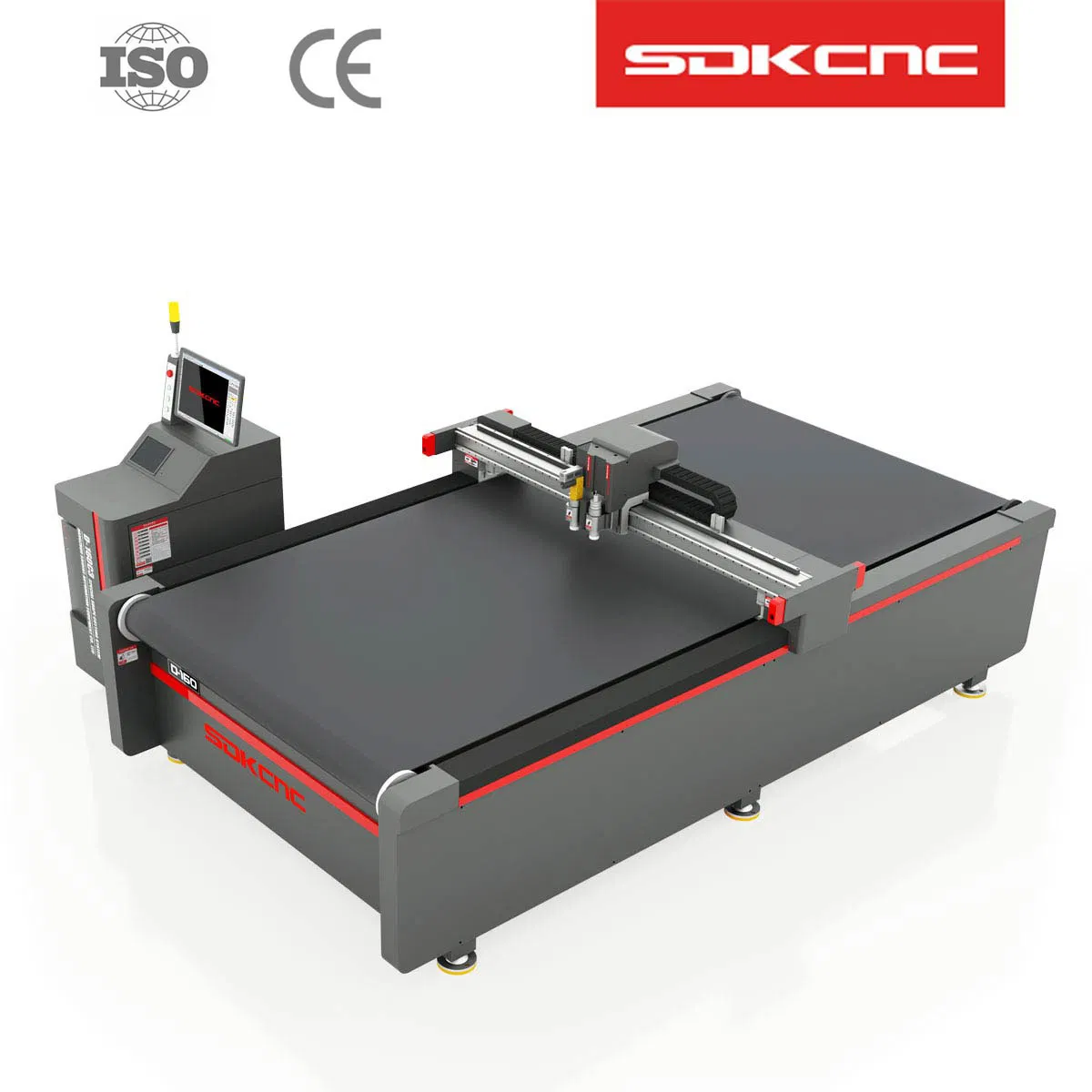

Factory Price CNC Automatic Feeding Roller Oscillating Knife Multi-Layer Leather Fabric Rubber Paper Garment Wallpaper Carbon Fiber Digital Cutting Machine

Customization:	Available
Warranty:	18 Months
Type:	Leather Cutting Machine

Basic Information

Model NO.	D-160C3 (Gen 2)	Pressure Type	Pneumatic
Control	CNC	Certification	CE, ISO9001
Automatic Grade	Automatic	Knife Type	Universal Tool Holder
Working Mode	Flexible Material Edge Patrol Cutting	Drive Motor	AC Servo Motor
Transmission	Linear Guide Rail & Grinding Level Helical Gear	Control System	Industrial Edge Patrol Motion

Product Description

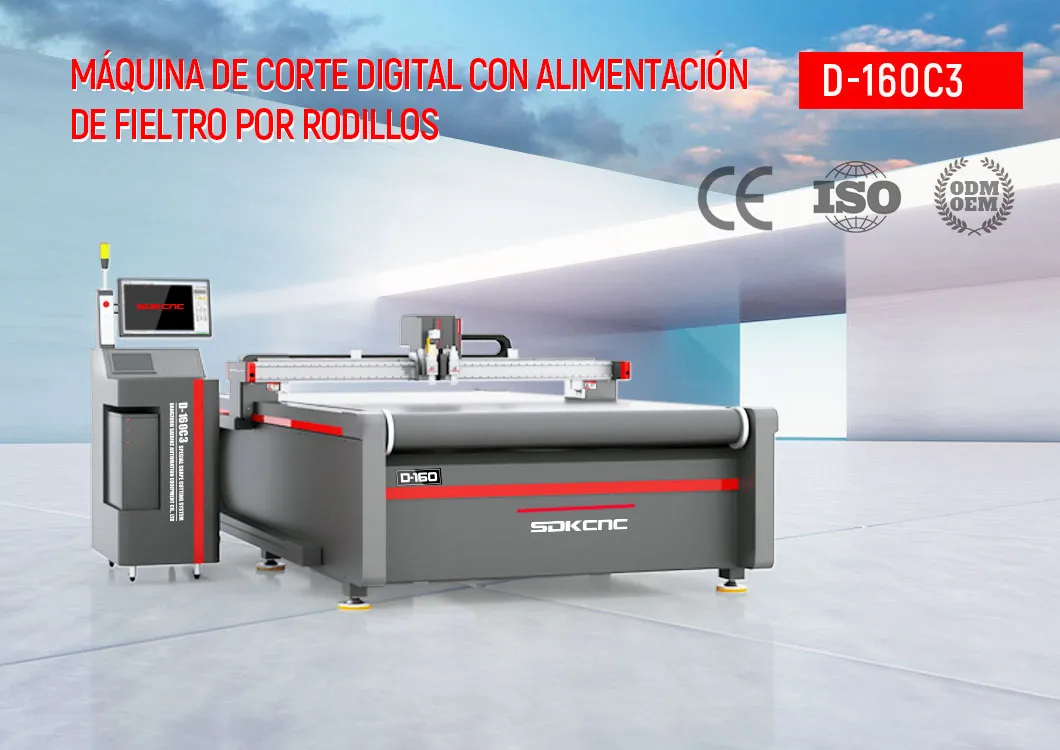

Garment and wallpaper cutting machine with roller felt feeding and digital visual precision

⚡

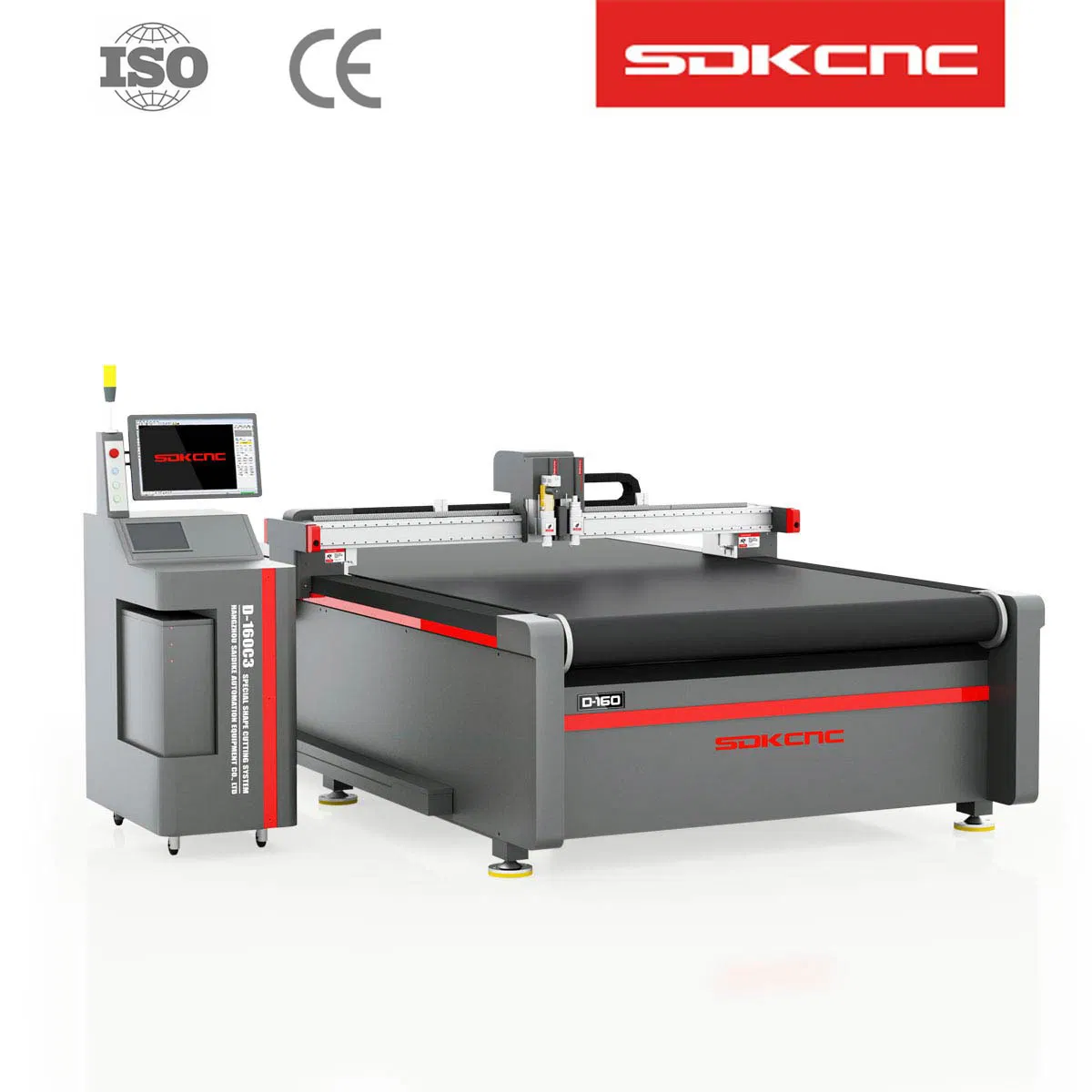

High-Efficiency Cutting: D-160C3(GEN 2) is a roller feeding high-speed shaped cutting machine. It is an efficient guide belt cutting machine specifically designed for flexible materials.

🛠️

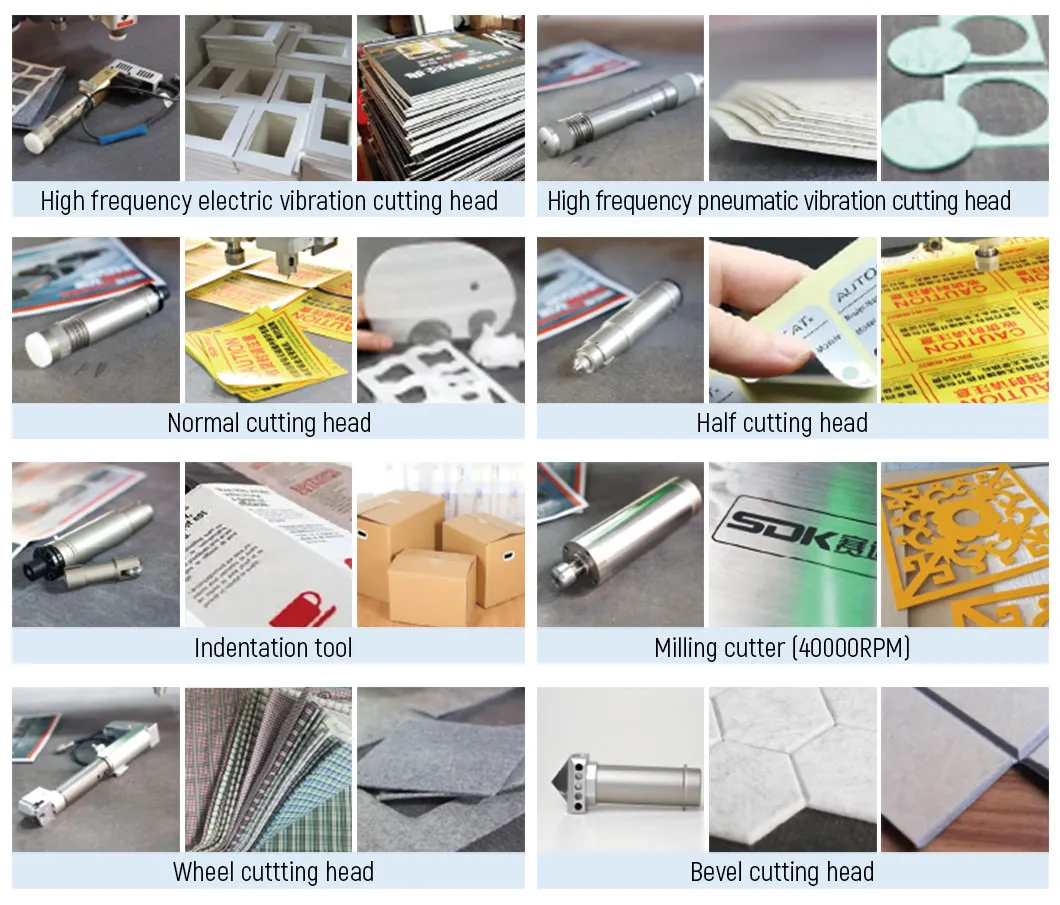

Versatile Tooling: Standard configuration includes high-efficiency electric oscillating knife and straight knife. The universal tool holder can be equipped with pneumatic oscillating knives, crossing wheel tool, V-cut tool, and kiss cut tool.

🎯

Multi-Process Capability: Quickly finish steps of full cutting, half cutting, perforating, creasing, and contour recognition. Widely used in advertising, packaging, garment samples, shoes, bags, and automotive decoration.

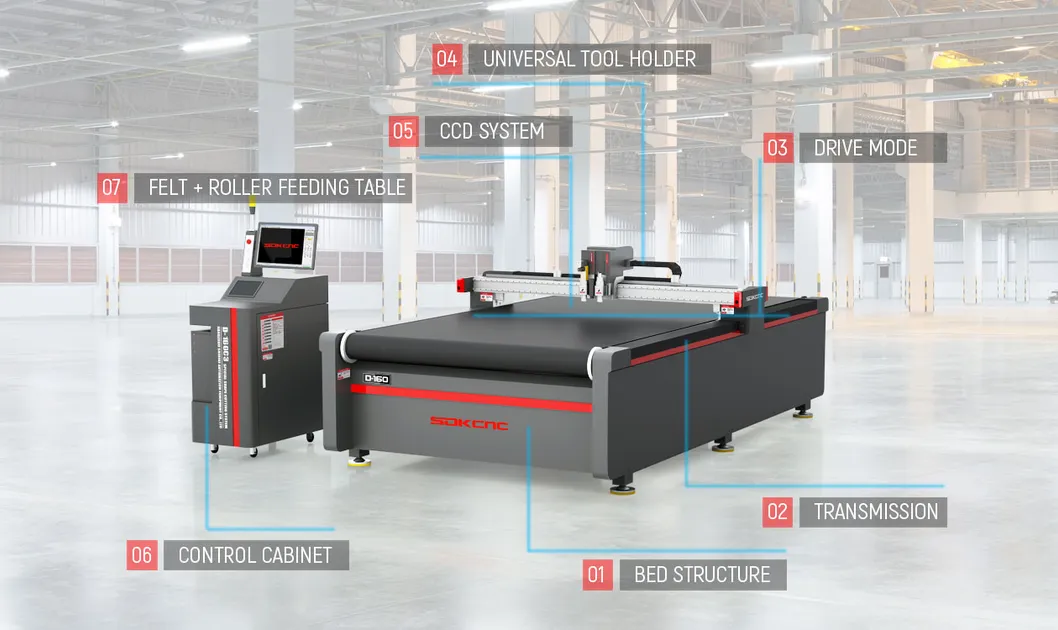

Core Technical Features

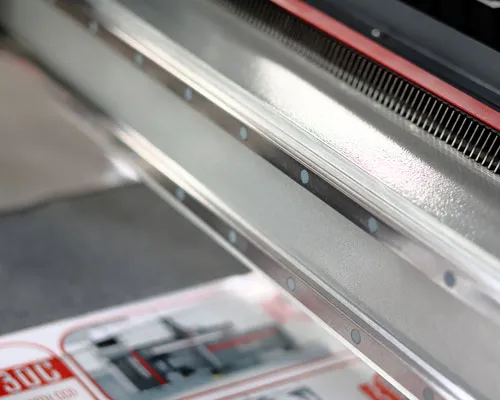

01 Bed Structure

Welded bed with thick-walled square tube in stress aging relief. All planes and installation holes are precision machined by gantry milling. Features a high-strength cast aluminum crossbeam.

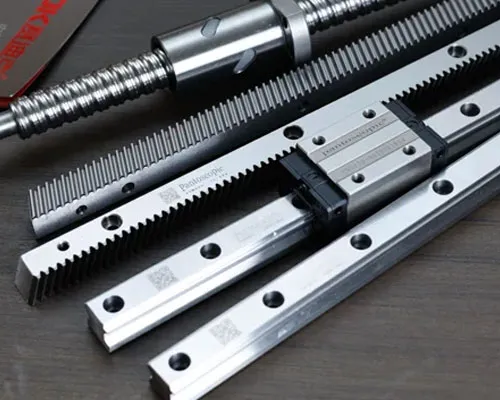

02 Precision Transmission

X/Y-axis with helical rack and linear guide rail for high speed and accuracy. Z-axis utilizes a mute screw for smooth operation.

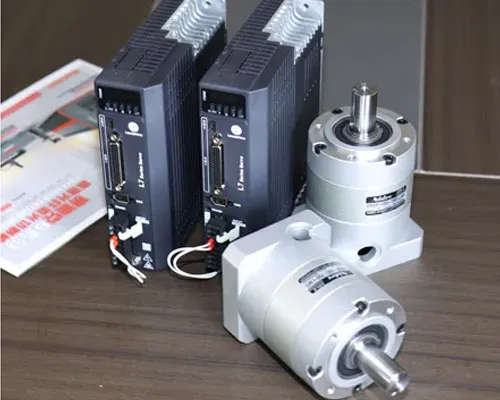

03 Drive Mode

The entire machine adopts AC servo drive with Y-axis dual motor drive for consistent power delivery and positioning.

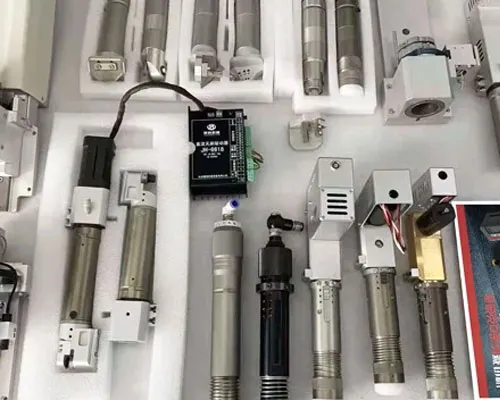

04 Universal Tool Holder

Equipped with a double tool holder that adopts different cutters for various materials, including oscillating, half, and round cutters.

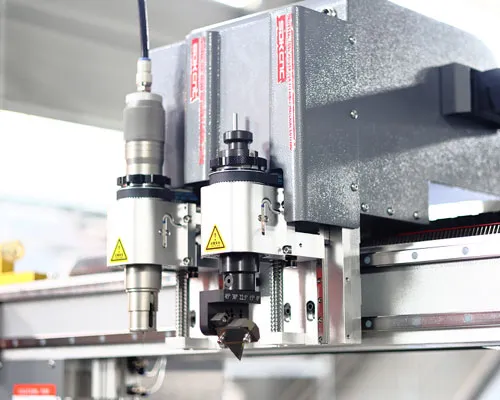

05 CCD System

Positioning status is based on a high-definition CCD camera optical system, enabling automatic contour pick-up for precise cutting.

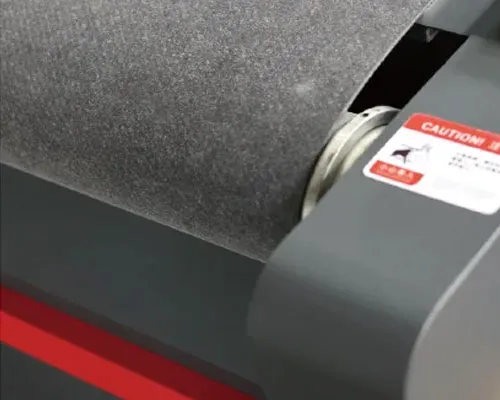

06 Felt + Roller Feeding Table

Adopts a specialized felt and roller feeding system to improve efficiency for bulk materials during continuous processing.

Technical Parameters

Technical Specifications

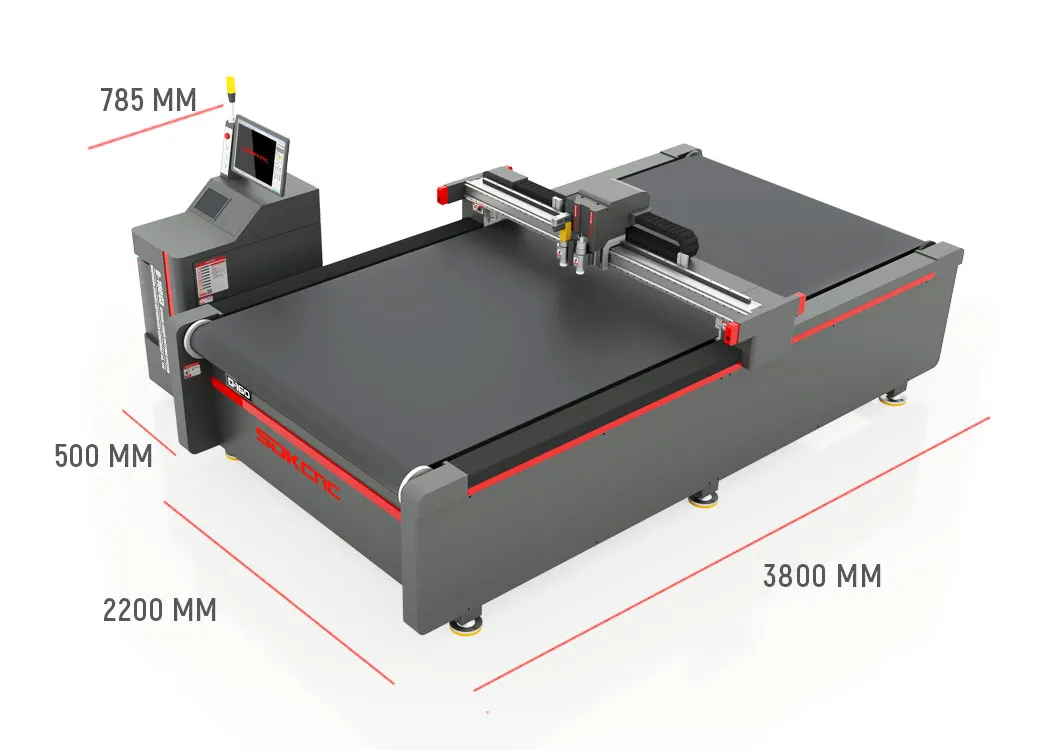

Working Area	1600 x 2500 mm
Repeat Position Accuracy	±0.01 mm (Depending on tool)
Tool Holder	Double Universal Tool Holder
Support Tool Type	Oscillating Cutter / Indentation Tool / Half Cutter etc.
Working Mode	Flexible material edge patrol cutting
Control System	6-8 Axis Control System
Feed Mode	Felt roller feeding system (Automatic)
Drive Motor	AC Servo Motor + Reducer
Vacuum Pump	5.5KW

Industry Applications

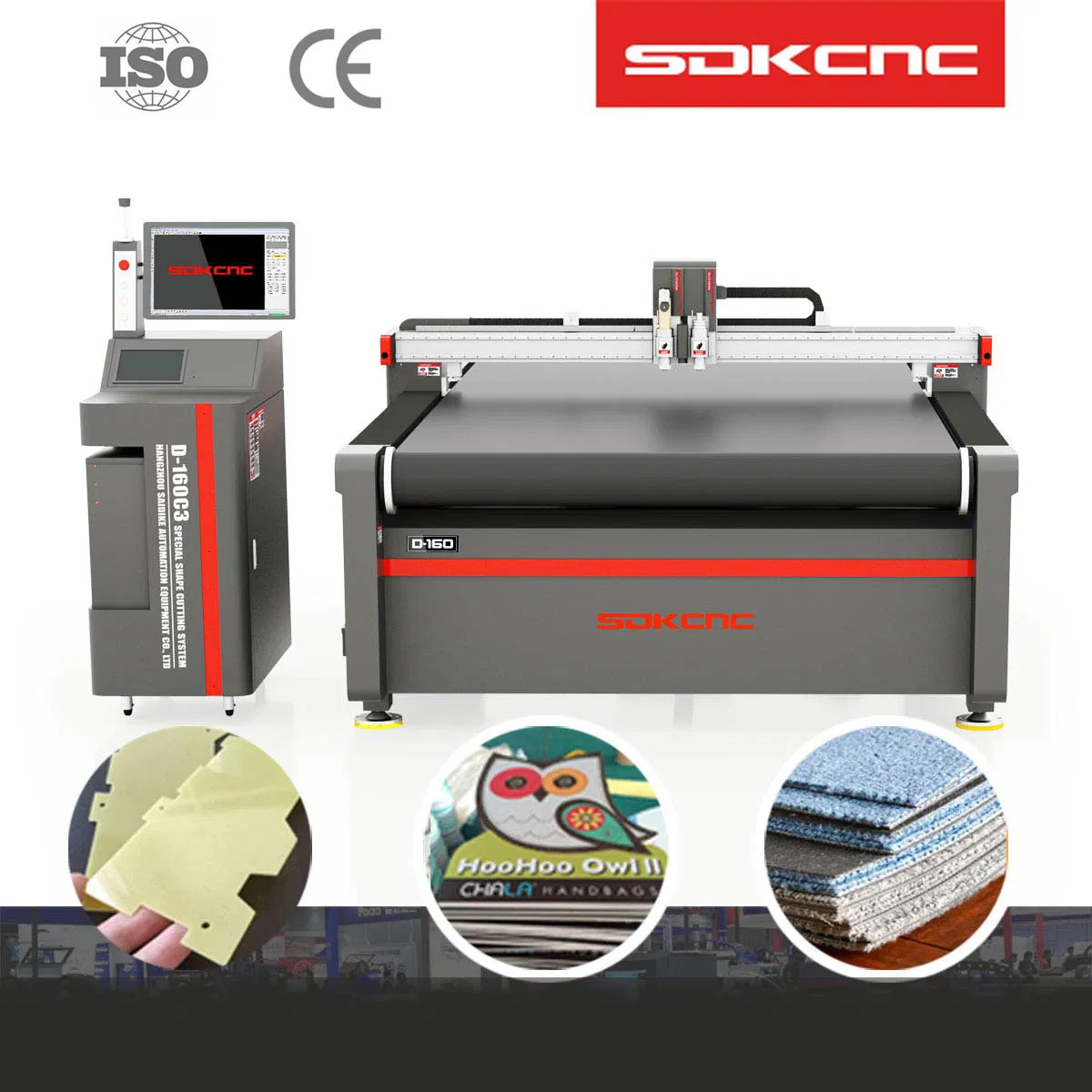

Suitable Materials: High-speed cutting of leather, fabric, paper, self-adhesive materials, and carbon fiber. Specifically designed for large quantities of coil materials.

Common Industries: Advertising logos, print packaging, garment samples, shoes & bags, car decoration, textiles, and carpet mats.

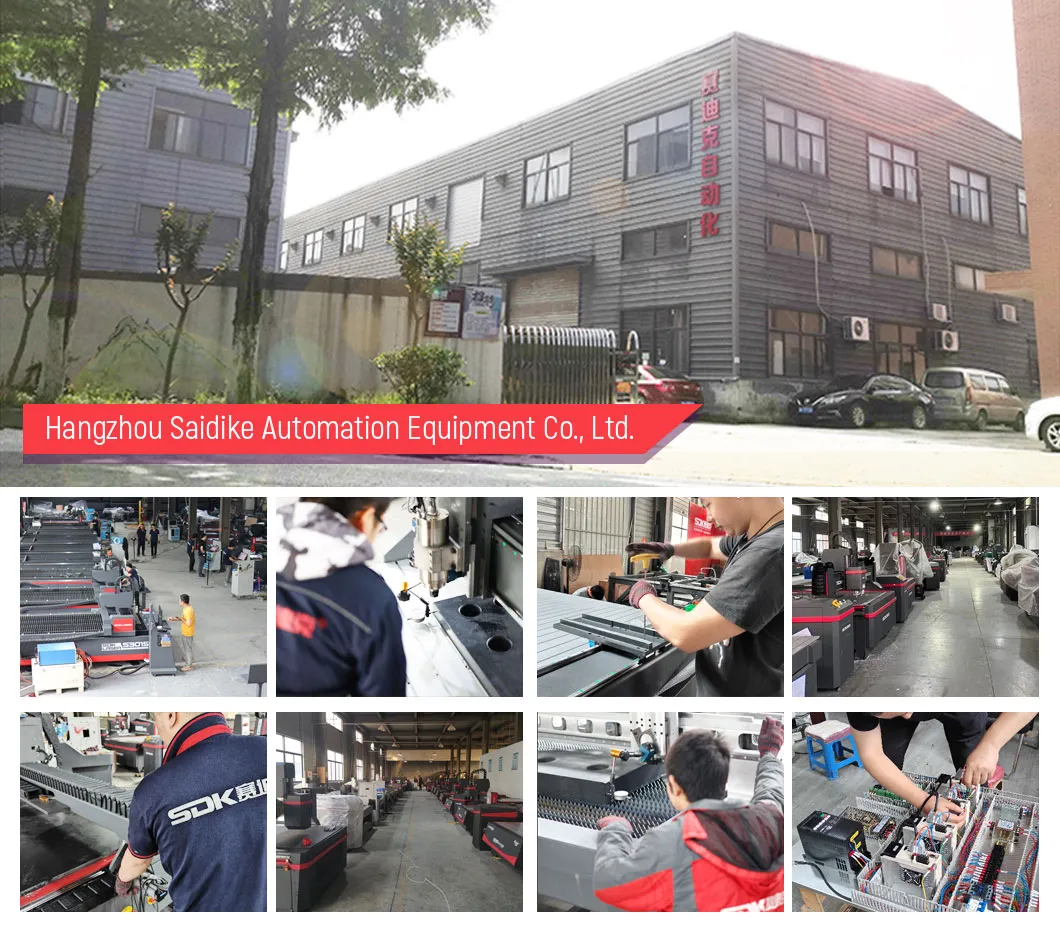

Production & Packaging

Frequently Asked Questions

Q1: I know nothing about this machine, how do I choose?

Simply provide details about your materials, thickness, size, and processing requirements. Our experts will recommend the most suitable configuration and solution for your needs.

Q2: How do I operate the machine if I am a beginner?

We provide a comprehensive English manual and operation videos with the machine. We also offer technical support via video call and email to ensure you can use the equipment effectively.

Q3: What happens if there is a technical problem during the warranty?

During the warranty period, we supply replacement parts free of charge for any mechanical issues. We also provide life-long technical after-sales support to solve any doubts or problems.

Q4: What is the typical delivery time after payment?

For standard single-set orders, delivery normally takes 15-20 days. For bulk orders of two or more sets, the timeline can be negotiated based on production capacity.

Q5: How is after-sales service handled remotely?

Our engineers will diagnose the issue through remote guidance and video calls. If a hardware part needs replacement, we will quickly dispatch it via international express.

Q6: What cutting tools are included as standard?

The standard setup includes an Electric Oscillating Knife and a Trailing Blade, which are suitable for a wide variety of flexible materials.
