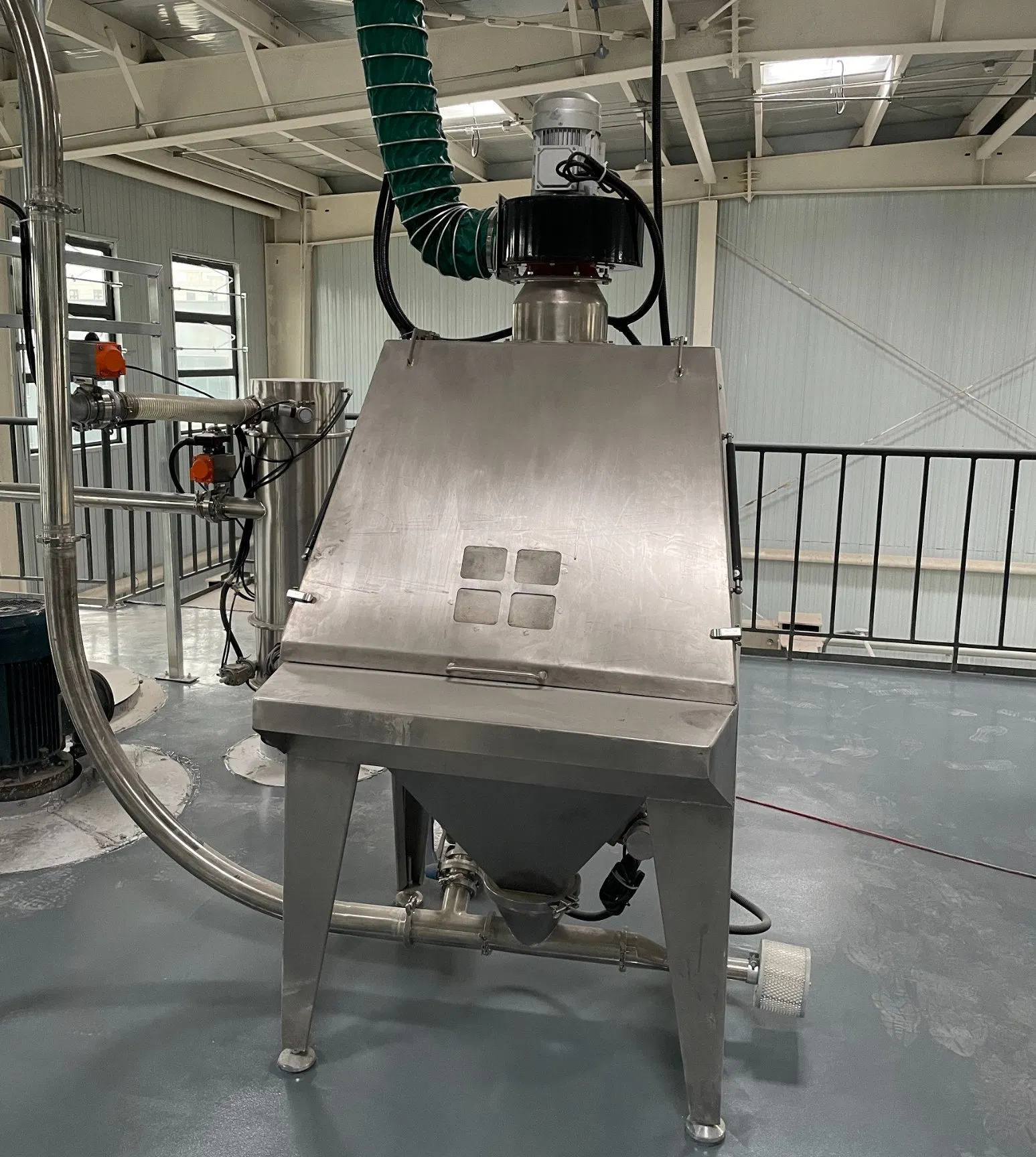

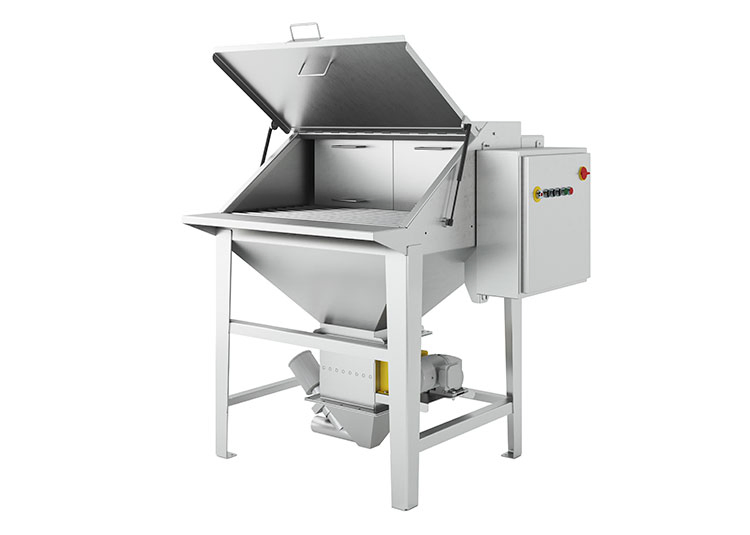

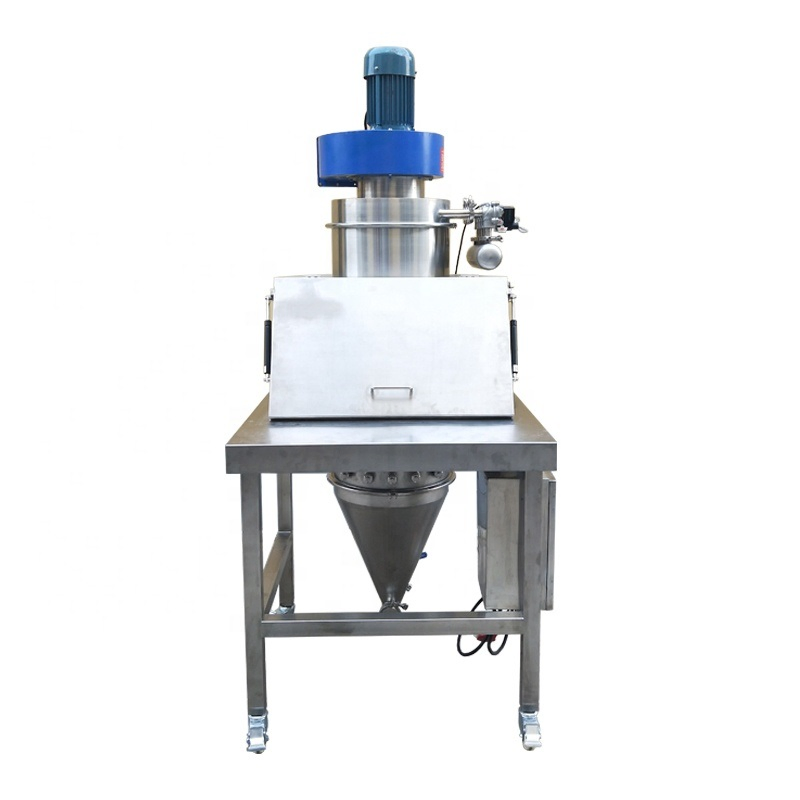

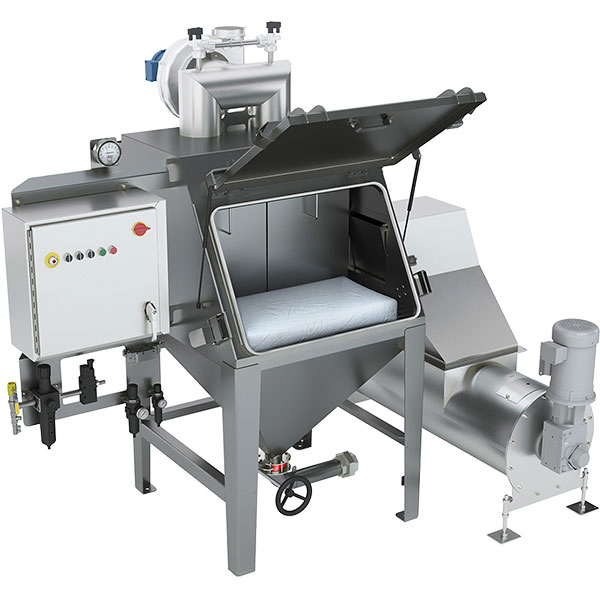

Bulk Material Handling 5kgs-50kgs Small Bag Unpacking Unloader Feeding Station

1 / 5

Bulk Material Handling 5kgs-50kgs Small Bag Unpacking Unloader Feeding Station

Customization:	Available
Capacity(t/h):	150-300
Feeding Rate Control:	Semi-Automatic

Send Inquiry

Product Description

Basic Information

Model NO.

RX-WT100/150/200/300

Material

Stainless Steel

Motor Power

1~10 kw

Raw Material

Powder

Usage

Building Materials, Chemical, Metallurgy

Appearance

Closed-Type / Open-Type

Feeding Weight

0-50KG small bags

Warranty

1 Year

Working Principle & Specifications

Feeding method: Single feeding port or double feeding port options.

Material lifting: Manual, lifting bucket, lifting truck, or forklift compatible.

Arch breaking type: Pneumatic high-frequency vibration or activation hopper vibration.

Blowback type: Pneumatic pulse system for continuous operation.

Optional equipment: Iron remover, vibrating screen, coarse crusher, and weighing devices.

Model	Volume (L)	Power (KW)	Noise (dB)	Dimensions (mm)	Discharge
RX-WT100	100	0.8	70	8009001800	DN150
RX-WT150	150	2.0	80	90010002200	DN200
RX-WT200	200	2.0	80	115013002000	DN200
RX-WT300	300	2.0	80	85011002600	DN250

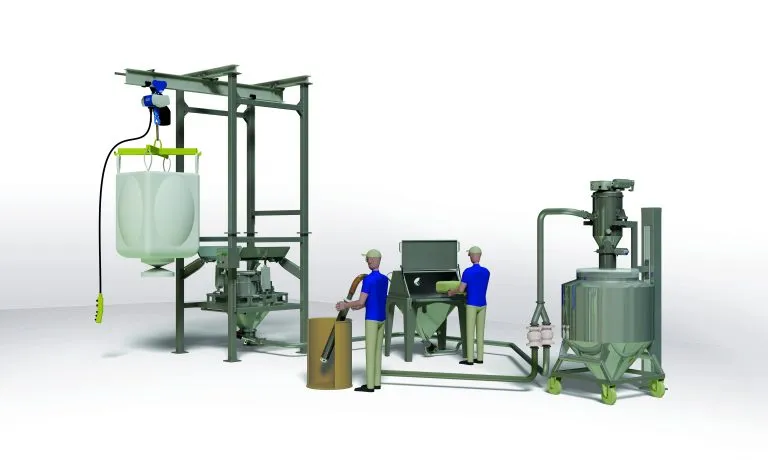

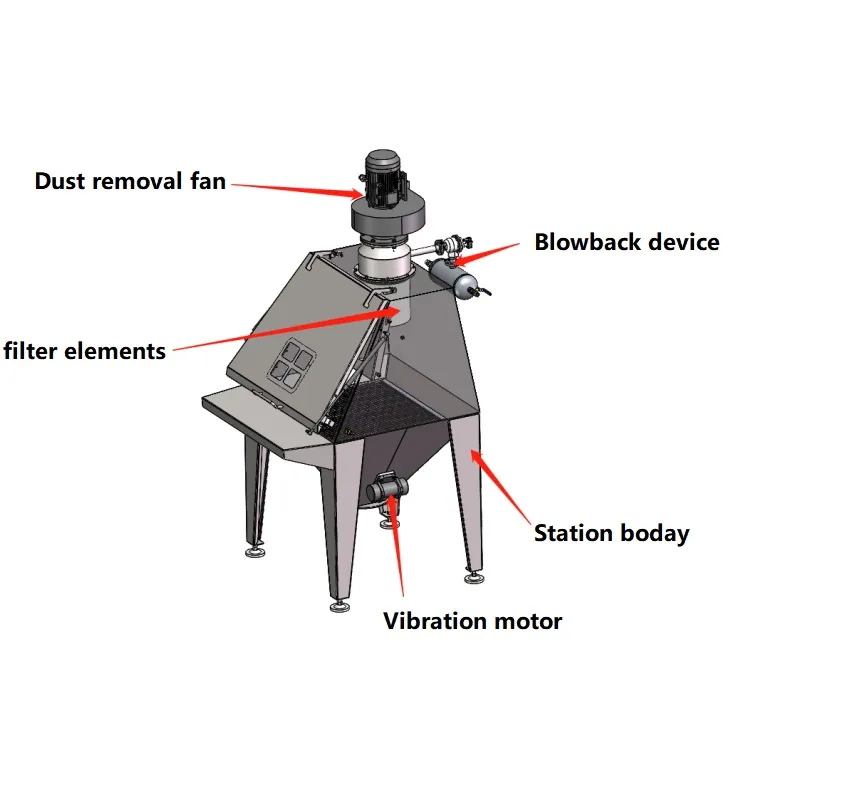

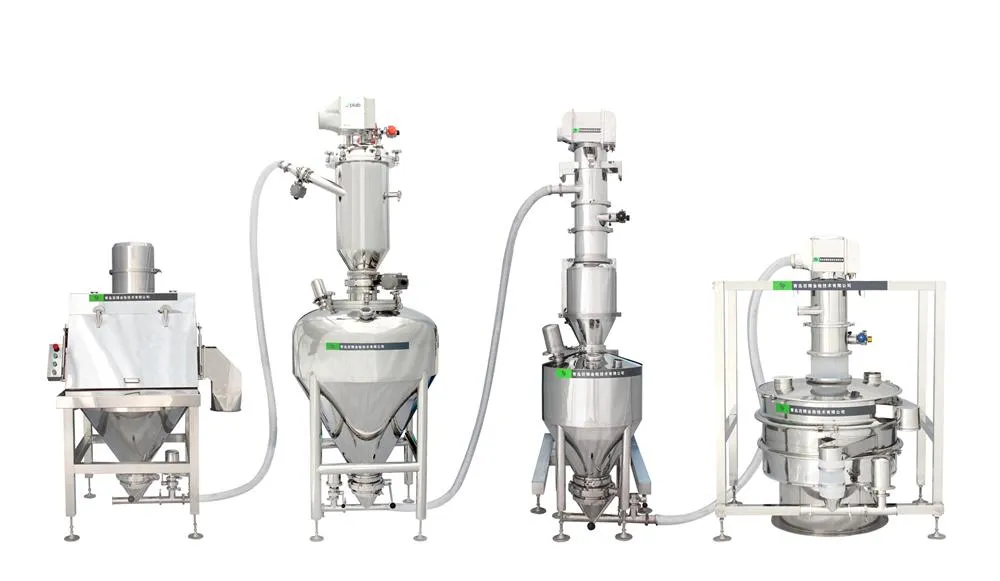

Product Configuration

Product Features

Simple structure, safe and convenient operation, and easy maintenance.

Dust-free operation: Fully enclosed bag feeding and pipeline transportation.

No dead corner design: Hygienic and easy to clean for different batches.

Automatic dust removal system: Eliminates dust flying and improves workspace air quality.

Wide application: Suitable for pharmaceuticals, food, chemicals, and battery industries.

Troubleshooting Guide

Fault Phenomenon	Fault Cause	Troubleshooting
No backflushing	Valve not open / Pulse valve failure	Open valve / Check pulse valve
No electric vibration	Damaged motor / No power	Replace motor / Connect power
Slow fan extraction	Fan damage / Filter clogged	Replace fan / Replace filter element

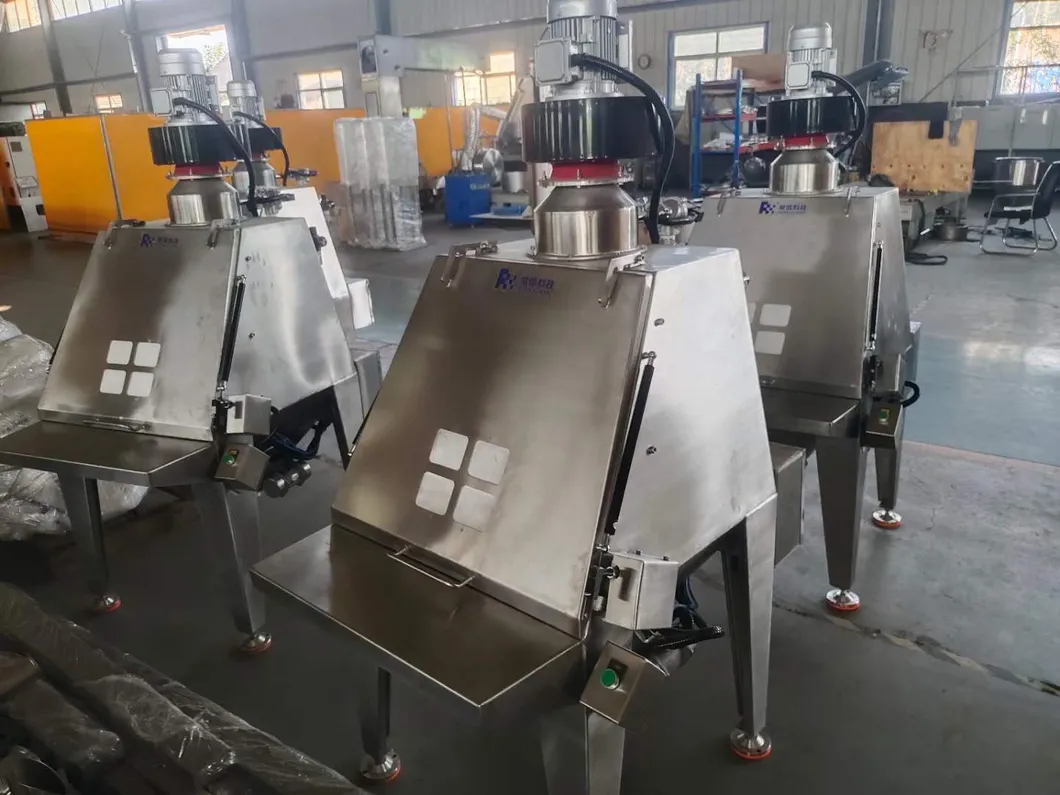

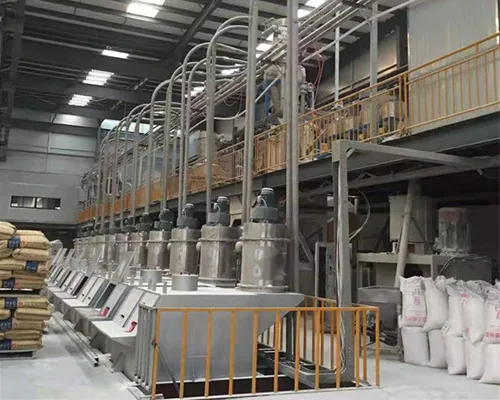

Application & References

Scope: Food, Pharmaceutical, Metallurgy, Mining, and Chemical industries.

Materials: Essence, monosodium glutamate, catalyst, graphite, powder blusher, polyethylene, polypropylene, fertilizers, feed, salt, sugar, and more.

Frequently Asked Questions (FAQ)

1. What bag sizes can this station handle?

The station is specifically designed for small bags ranging from 0kg up to 50kg.

2. Is the environment completely dust-free during operation?

Yes, it features a fully enclosed design and an automatic pneumatic pulse dust removal system to ensure no dust escapes into the working environment.

3. Can the machine handle different types of powder?

Absolutely. It is widely used for food ingredients, chemical powders, pharmaceutical materials, and even battery raw materials.

4. What material is the machine made of?

The equipment is primarily constructed from high-quality stainless steel, ensuring durability and compliance with industrial hygiene standards.

5. Does it require high maintenance?

No, the structure is designed for simplicity. With no dead corners and an easy-access filter element, regular cleaning and maintenance are very straightforward.

6. What happens if the suction fan is slow?

Usually, this is caused by a clogged filter element. Replacing the filter or checking the pulse backflushing system will restore performance.

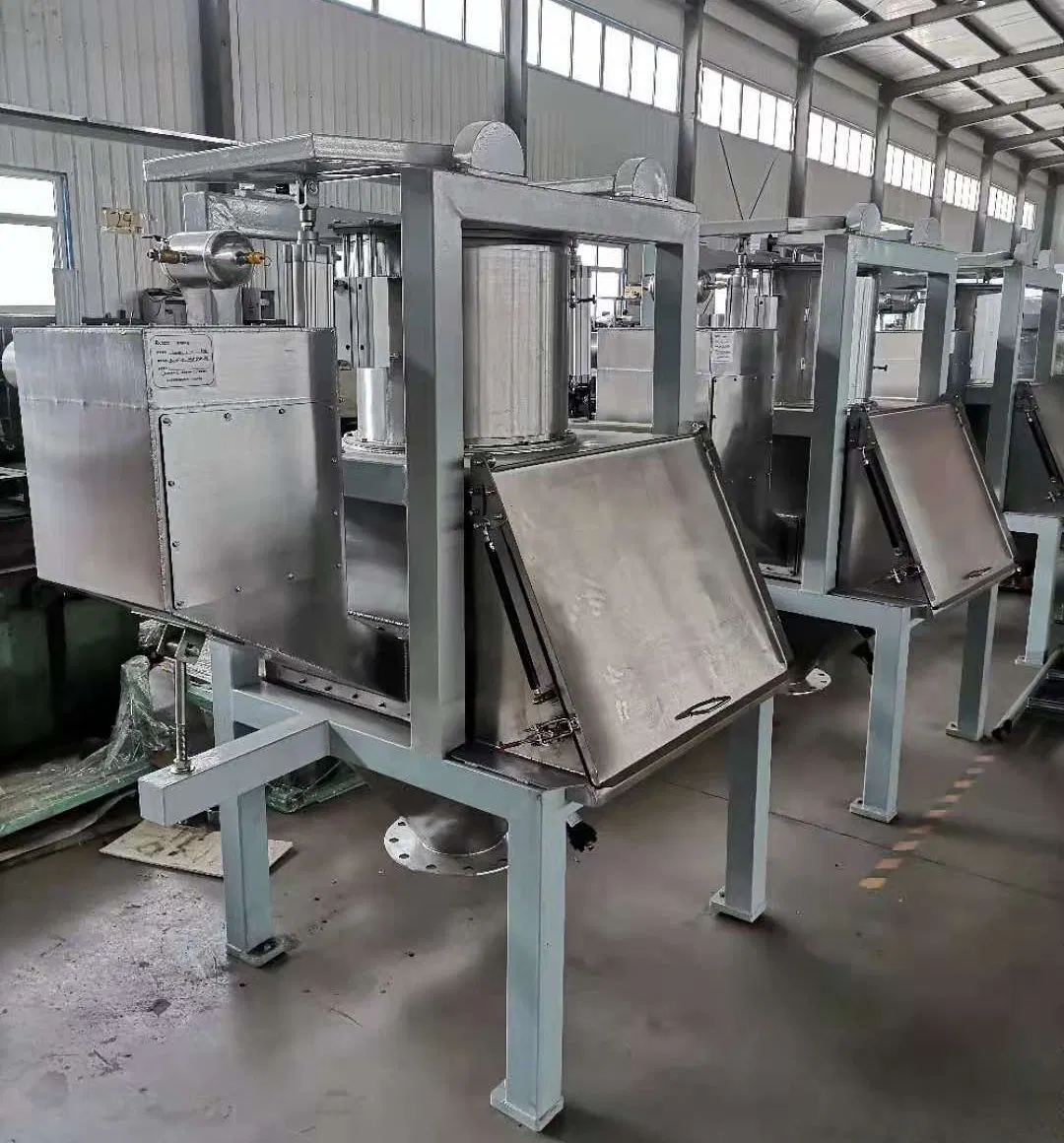

Bulk Material Handling 5kgs-50kgs Small Bag Unpacking Unloader Feeding Station
