Fresh fruit juice is first filtered through a 5-10μm precision pre-filter to remove large-particle impurities (e.g., pulp residues, fruit stones, suspended solids), protecting subsequent membrane elements from clogging and extending their service life.
Ultrafiltration (UF) Membrane Clarification: Equipped with ultrafiltration membranes with a molecular weight cut-off of 10,000–50,000 Da or microfiltration (MF) membranes with a pore size of 0.1–1 μm. Under low pressure (0.2–0.4 MPa) and room temperature (25–35℃), colloids (e.g., pectin, proteins), fine pulp particles, and other impurities are retained by the membrane.
Membrane Sterilization: Synchronously achieves microbial removal via the same membrane system—bacteria (E. coli, Salmonella), yeasts, molds, and spores (size >0.01 μm) are completely intercepted, with a sterilization rate of ≥99.99%.
Nanofiltration (NF) Membrane Pre-Concentration: The clarified and sterile juice is pumped into the nanofiltration membrane module (operating pressure: 0.8–1.5 MPa). The membrane selectively retains sugars, organic acids, and flavor compounds, pre-concentrating the juice from 10%–15% soluble solids to 25%–30%.
Vacuum Low-Temperature Final Concentration: The pre-concentrated juice enters the vacuum low-temperature concentrator (40–60℃) for further concentration to 65%–70%, reducing energy consumption by 30%–50% compared to traditional single heat concentration.

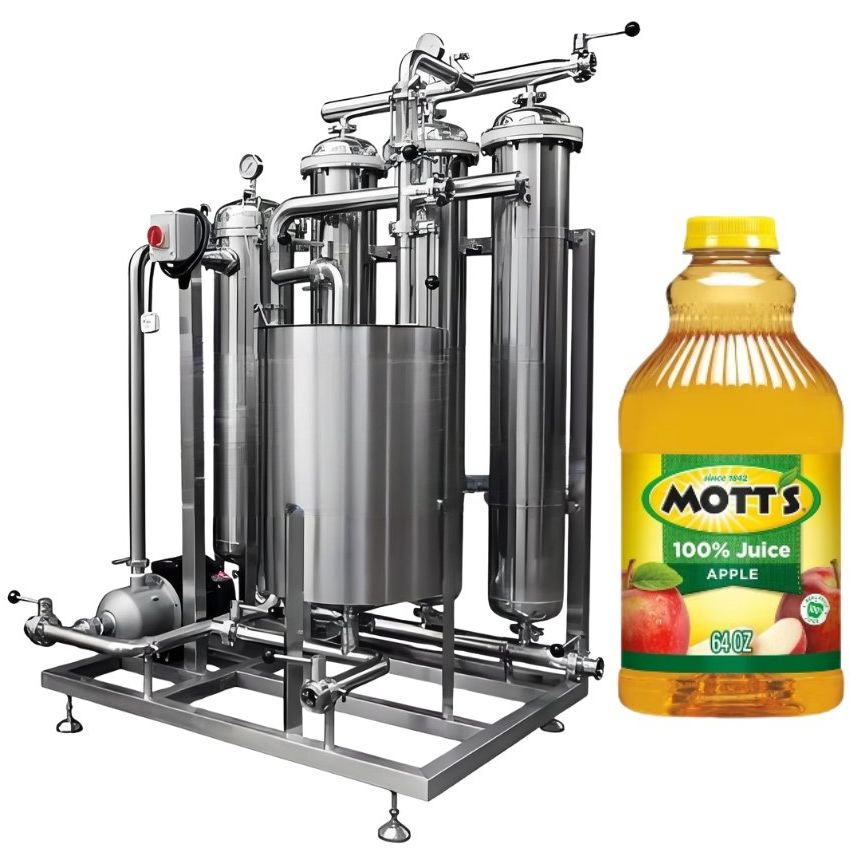

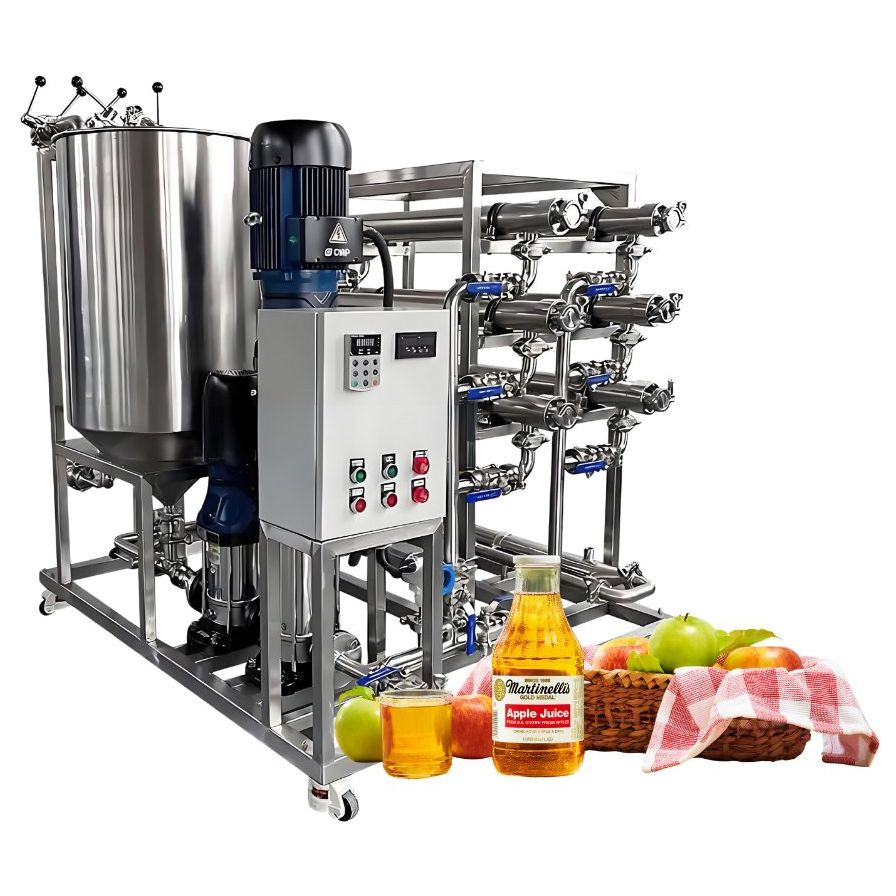

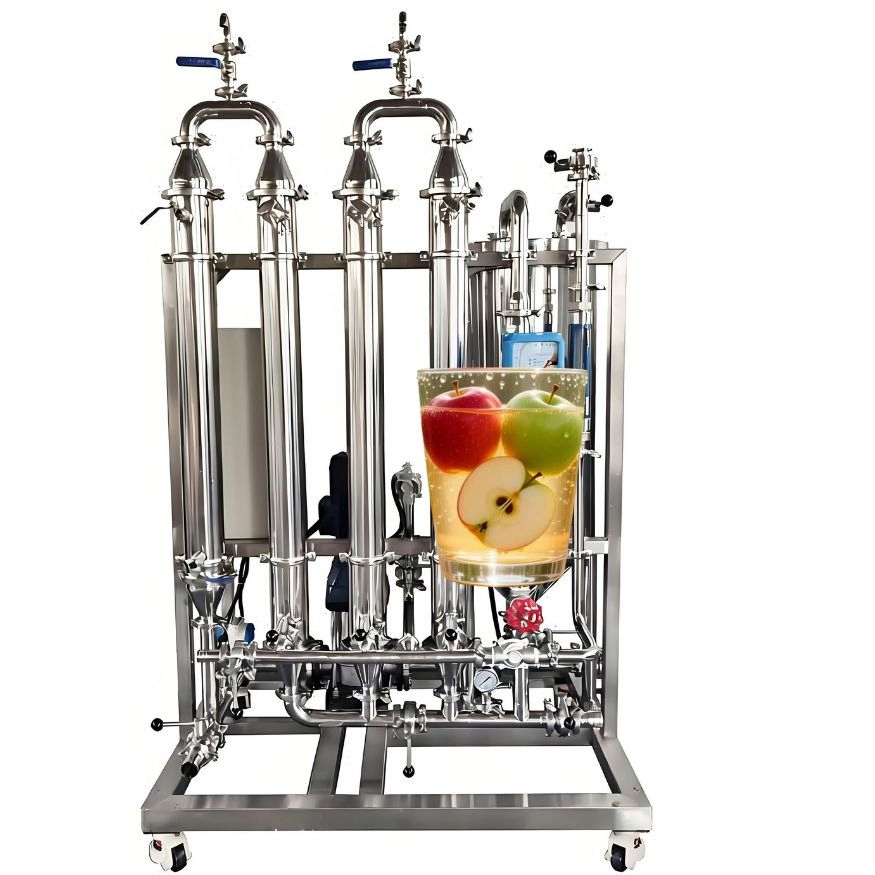

| Component Unit | Core Equipment | Function |
|---|---|---|
| Pretreatment Unit | 5-10μm precision filter, buffer tank, feed pump | Remove large particles, stabilize feed flow, and protect subsequent processes |
| Clarification & Sterilization Unit | UF/MF membrane module (PVDF/PES material), circulation pump | Achieve high-precision impurity removal and sterile filtration at room temperature |
| Concentration Unit | NF membrane module, vacuum low-temperature concentrator, heat exchanger | Realize low-temperature concentration, retain active ingredients |
| Control Unit | PLC automatic control system, online monitors | Automate process parameters, ensure stable product quality |
| Cleaning Unit | CIP (Clean-in-Place) online cleaning system | Regularly clean membrane modules and pipelines to prevent fouling |
| Parameter Category | Specification Range |
|---|---|
| Processing Capacity | 50–10,000 Kg/h (fresh juice input) |
| Clarification Membrane Type | UF/MF membrane (pore size: 0.1–1 μm; MWCO: 10,000–50,000 Da) |
| Concentration Membrane Type | NF membrane (operating pressure: 0.8–1.5 MPa) |
| Vacuum Concentration Temp | 40–60℃ |
| Final Soluble Solid Content | 65%–70°Bx (customizable) |
| Sterilization Rate | ≥99.99% (bacteria, yeasts, molds, spores) |
| Operating Pressure | 0.2–0.4 MPa (Clarification Stage) |
| Material in Contact | 304/316L stainless steel, food-grade PVDF |
| Power Consumption | 5.5–120 KW (varies by capacity) |
Clarification and sterilization of orange, apple, and pear juice for high-quality NFC products.
Concentration of mango, dragon fruit, and passion fruit juice while retaining unique flavors.
Concentration of wolfberry, seabuckthorn, and blueberry juice, enriching active ingredients like anthocyanins.

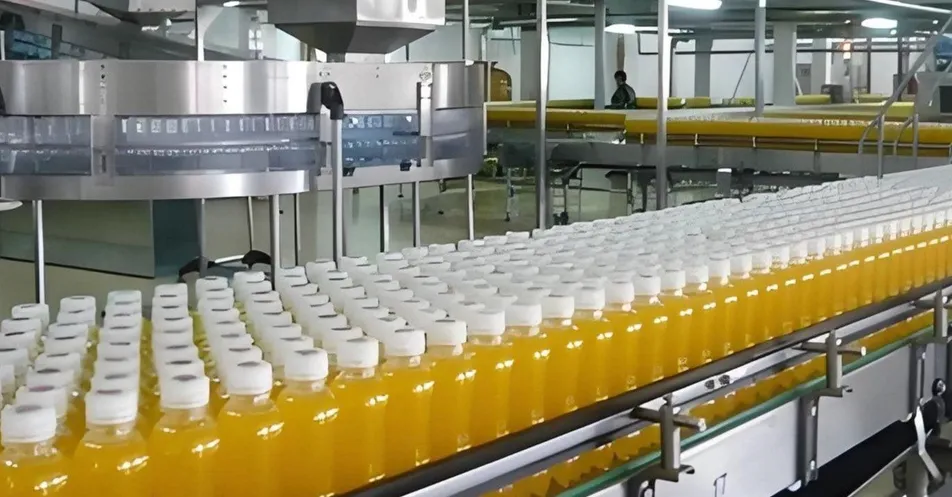

Production of high-concentration juice concentrates for bottled drinks, jams, and fruit wines.
